Kingfisher KW75HPG Single Bank High Performance Weather Louvres - Weather Protection Louvre System

Verified by manufacturer 6 months ago

BPD Building Product Design Ltd

High-performance weather louvre combining low airflow resistance with maximum rain rejection.

Jump to:
BOS
+44 (0)161 905 5700 Website

Application

Any application requiring permanent large-scale ventilation combined with screening, for example air inlet and exhaust for ventilation or air conditioning systems, plant rooms, lift motor rooms, generators and pumping stations.

Description

High-performance weather louvre combining low airflow resistance with maximum rain rejection.


Features and benefits:

  • Free area: 47%.
  • Blade pitch: 75 mm.
  • Louvres provide high rainwater rejection combined with high airflow rate up to A2 performance classification, assured by independent testing by BSRIA.
  • This operates at better performance than many double-bank systems, achieved at a lower cost and a smaller system depth.
  • The design is aesthetically pleasing and the gutter directs rejected rain to avoid a cascade effect.
  • All components are extruded aluminium for long life with good corrosion resistance.
  • Integrated single and double doors available or as a stand alone component.
  • Mitre cuts available to maintain the continuous appearance.
  • Optional bird/ insect guards and blanking plates.


Standard versions also available, consult manufacturer for details.

General information

Color

Silver

Guidance for specification option:

Powder-coating or natural anodized.

Other

Finish

Powder-coated

Anodized

Mill

Matt

Satin

Show more

Material

Aluminium

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Manufacturer guidance

Minimum installation depth with M2 mullion 135mm.

Height

Bespoke

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary
Ss_25_10_20/540 Custom-made louvres

CAWS

H11/140 Louvres

L10/54 Louvres

L10/650 Metal louvres

Specification data - Aluminium louvre panel units

Size (l x w x d)

Guidance for specification option:

Insert requirements including drawing/ schedule reference as required.


  • Banks can be made to any practicable shape and size, with virtually no restriction on height or width.
  • Maximum blade length is normally 2.5 m for ease of handling.
  • Installed blade depth: 80 mm.

Material

Extruded aluminium concealed mullions and louvre blades, grade 6063 T6 to BS EN 755-2:2008, BS EN 755-9:2008 and BS EN 515:1993.

Guidance for specification option:

Flashings or frames are folded aluminium.

Finish

Polyester powder coating to BS 6496.

Guidance for specification option:

Standard.

Anodizing AA25 to BS 3987.

Guidance for specification option:

Where anodizing is specified, the aluminium will be of anodizing quality.

Natural mill finish.

PVF2.

Colour

Guidance for specification option:

Insert colour requirements (not applicable for natural anodized or natural mill finishes).

Texture

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Construction

M1 mullions (165 mm overall depth), continuous appearance.

M1 mullions (165 mm overall depth), panelled.

M2 mullions (135 mm overall depth), continuous appearance.

M2 mullions (135 mm overall depth), panelled.

Manufacturer guidance

Minimum overall installation depth.

All panels have a +5 mm depth to their continuous counterpart.

Air intake and exhaust performance

-

Face velocity

1.23 Pa pressure drop at 0.5 m/s face velocity.
4.93 Pa pressure drop at 1.0 m/s face velocity.
11.08 Pa pressure drop at 1.5 m/s face velocity.
19.70 Pa pressure drop at 2.0 m/s face velocity.
30.79 Pa pressure drop at 2.5 m/s face velocity.
44.33 Pa pressure drop at 3.0 m/s face velocity.
60.34 Pa pressure drop at 3.5 m/s face velocity.

Guidance for specification option:

Without either insect or bird guard meshes. Consult manufacturer's literature for details if mesh is required.

Core velocity (maximum)

-

Manufacturer guidance

Contact manufacturer for further information.

Weather performance

-

Water penetration class (minimum)

To BS EN 13030, class C up to 2.5 m/s.

Guidance for specification option:

Without insect or bird guard meshes. Consult manufacturer's literature for details if mesh is required.

Discharge loss coefficient (minimum)

To BS EN 13030, class 2 up to 2.5 m/s; Cd (discharge): 0.349.

Guidance for specification option:

Without insect or bird guard meshes. Consult manufacturer's literature for details if mesh is required.

Fire performance

-

Reaction to fire

Non-combustible.

Guidance for specification option:

As standard.

A2-s1,d0.

Guidance for specification option:

Optional polyester powder coating rated A2-s1,d0.

Louvre configuration

-

Number of banks

One.

Blade orientation

Horizontal.

Blade pitch

75 mm.

Blade angle

Fixed.

Guidance for specification option:

45°.

Accessories

None.

Bird/ vermin guard (aluminium; 15 mm hole size).

Guidance for specification option:

Overlapped and secured to mullions.

Insect guard (HDPE; 4 mm hole size).

Blanking panel.

Other.

Guidance for specification option:

Consult manufacturer for details of ancillaries (doors, access panels etc.) and insert requirements.

Sustainability data

Country of product manufacture

United Kingdom

Material

Aluminium

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Kingfisher Louvre Blades and Mullion Span Capability

Kingfisher Louvre Blades and Mullion Span Capability

Kingfisher Ventilation Louvres Brochure

Kingfisher Ventilation Louvres Brochure

Case studies

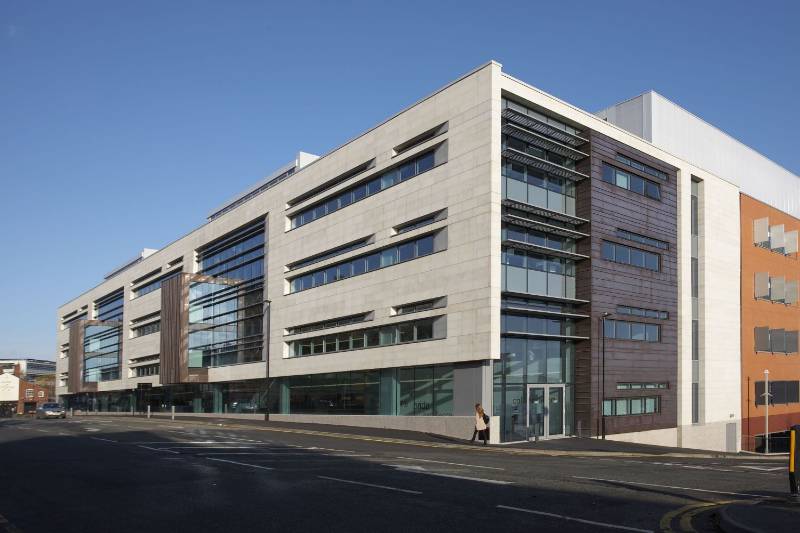

Kingfisher Louvres - Birmingham City Council Offices

Kingfisher Louvres - Birmingham City Council Offices

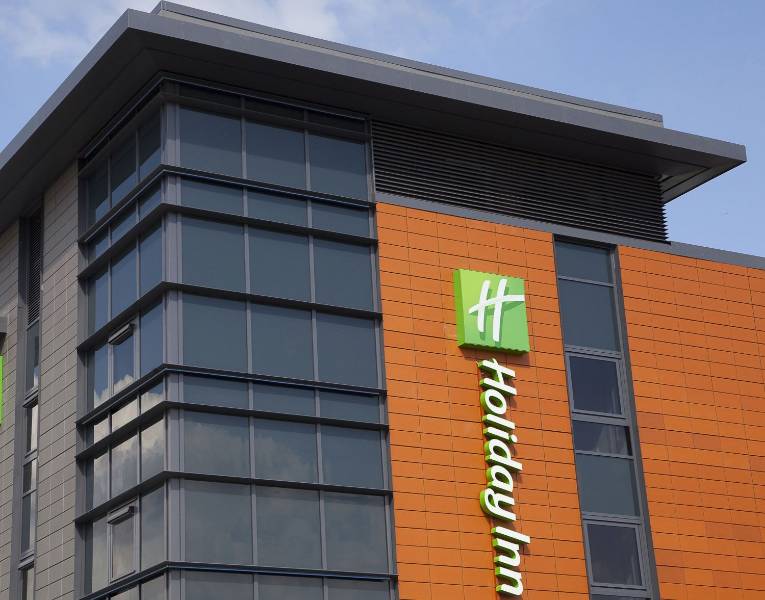

Kingfisher Louvres - Holiday Inn Express
