Kingfisher KW100Z Single Bank Weather Louvres - Weather Protection Louvre System
Verified by manufacturer 19 days ago

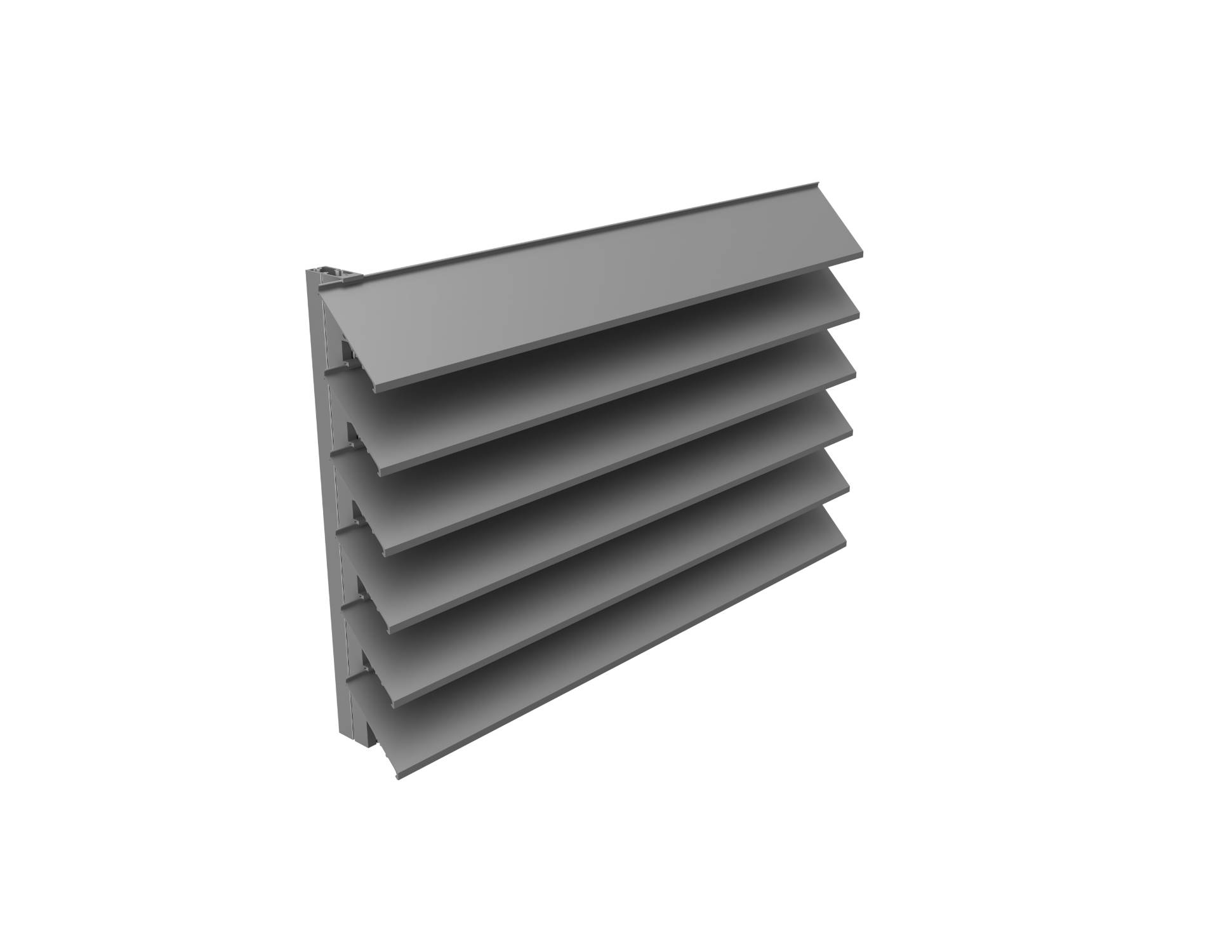

Louvre system comprising banks of 100 mm pitch, Z-profile blades providing permanent ventilation combined with weather protection and visual screening.
Application
Any application requiring permanent large-scale ventilation combined with screening, for example air inlet and exhaust for ventilation or air conditioning systems, plant rooms, lift motor rooms, generators and pumping stations.
Description
Louvre system comprising banks of Z-profile blades providing permanent ventilation combined with weather protection and visual screening.
Louvres are supplied either mounted on concealed mullions for a continuous appearance or as individual framed panels, and can form an architectural feature of a building. The system is very flexible; banks and panels can be made to any practicable size or shape.
Features and benefits:
- Free area: 61%.
- Blade pitch: 100 mm.
- Designed to give good protection against water penetration together with low resistance to airflow (BSRIA tested).
- All components are extruded aluminium for long life with good corrosion resistance.
- Mitre cuts available to maintain a continuous appearance.
- Single and double door sets available for integration into louvres or as a stand alone component.
- Optional bird/ insect guards and blanking plates.
50 mm, 75 mm blade pitch or S-profile versions also available, specified separately.
General information
Color | Silver Guidance for specification option: Powder-coating or natural anodized. Other |
Finish | Powder-coated Anodized Mill Matt Satin |
Material | Aluminium |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceMinimum installation depth with M2 mullion 145mm. |
Height | Bespoke |
Uniclass | |
CAWS | L10/54 Louvres L10/650 Metal louvres H11/140 Louvres |
Specification data - Aluminium louvre panel units
Size (l x w x d) | Guidance for specification option: Insert requirements including drawing/ schedule reference as required.
|
Material | Extruded aluminium concealed mullions and louvre blades, grade 6063 T6 to BS 1474. |
Finish | Polyester powder coating to BS 6496.Guidance for specification option: Standard. Anodizing AA25 to BS 3987.Guidance for specification option: Where anodizing is specified, the aluminium will be of anodizing quality. Natural mill finish.PVF2. |
Colour | Guidance for specification option: Insert colour requirements (not applicable for natural anodized or natural mill finishes). |
Texture | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Construction | M1 mullions (175 mm overall depth), continuous appearance.M1 mullions (175 mm overall depth), panelled.M2 mullions (145 mm overall depth), continuous appearance.M2 mullions (145 mm overall depth), panelled.Manufacturer guidanceAll panels have a +5 mm depth to their continuous counterpart. |
Air intake and exhaust performance | |
Face velocity | 1.95 pressure drop at 0.5 m/s. |
Core velocity (maximum) | Manufacturer guidanceContact manufacturer for further information. |
Weather performance | |
Water penetration class (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. Performance will vary whether mesh (bird/ vermin or insect guards) are required. |
Discharge loss coefficient (minimum) | To BS EN 13030, Class 3.Guidance for specification option: Up to 2.5 m/s; Cd (discharge): 0.277. |
Fire performance | |
Reaction to fire | Non-combustible.A2-s1,d0. |
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 100 mm. |
Blade angle | Fixed.Guidance for specification option: 45°. |
Accessories | None.Bird/ vermin guard (aluminium; 15 mm hole size).Guidance for specification option: Overlapped and secured to mullions. Insect guard (HDPE; 4 mm hole size).Blanking panels.Other.Guidance for specification option: Consult manufacturer for details of ancillaries (doors, access panels etc.) and insert requirements. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Kingfisher Louvre Blades and Mullion Span Capability
Kingfisher Ventilation Louvres Brochure
Case studies

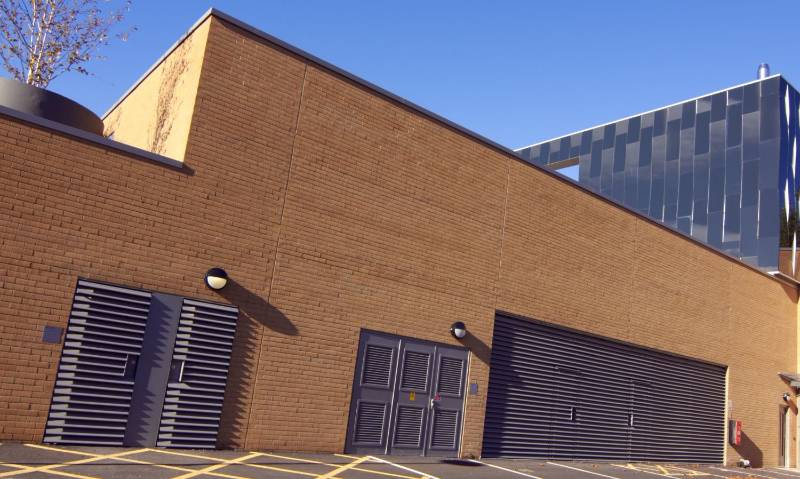

Kingfisher Louvres - Circle Health Group

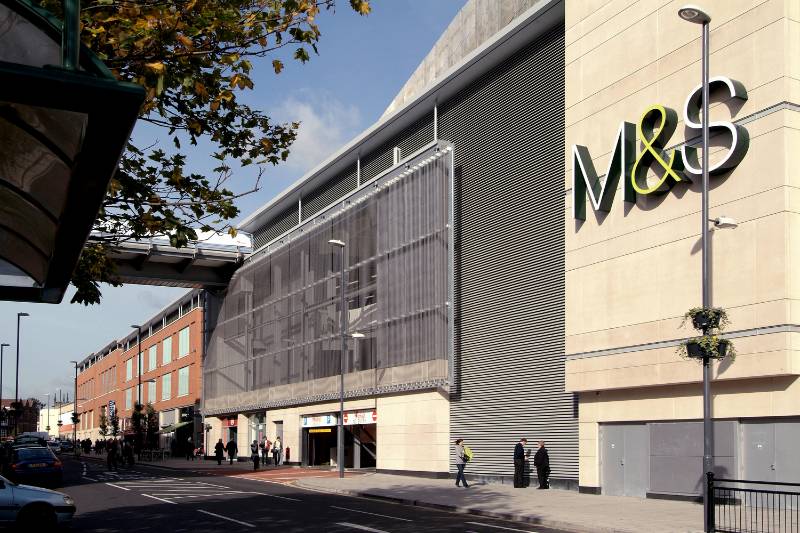

Kingfisher louvres - Westfield (now Derbion) Shopping Centre
