Kinetics Elastomeric Isolators RD, RDS - Vibration Isolator
Verified by manufacturer 20 hours ago
RDAS
RDAS
One-piece neoprene moulded mount to operate within strain limit.
Application
Suitable for isolating vibrations from small pumps, vent sets, low pressure packaged air-handling units, and other mechanical equipment.
Description

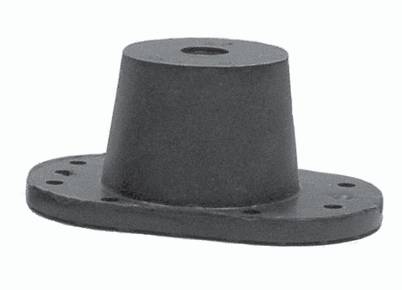

Kinetics Elastomeric Isolators are one-piece moulded neoprene mounts with encapsulated metal inserts. They are color-coded to indicate capacity, feature non-skid ribs on the bottom load surfaces, and are designed for up to 13 mm deflection.
The neoprene is highly oil resistant and designed to operate within the strain limits, ensuring maximum vibration isolation and extended service life.
Features and benefits:
- Moulded neoprene isolator.
- Encapsulated tapped steel load plate.
- Encapsulated drilled steel anchor or baseplate.
- Load capacities from 25 to 1814 kg.

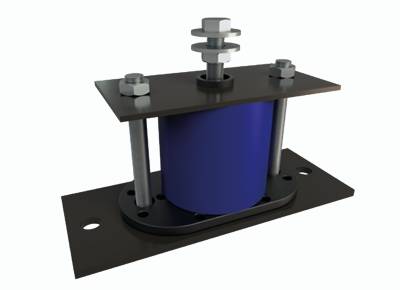

- Optional seismic and wind restraint (RDS).
- Available in standard powder-coated or painted finishes for RDS isolator.
- Oil-resistant material.
General information
Color | Black Blue Beige Bronze Brown |
Finish | Anti-skid Painted Powder-coated |
Material | Rubber Steel Metal |
Shape | Other |
Length | 81 mm 98 mm 140 mm 152 mm 159 mm |
Width | 46 mm 51 mm 60 mm 64 mm 83 mm |
Height | 38 mm 44 mm 64 mm 70 mm 76 mm |
Uniclass | |
CAWS | K11/275 Acoustic separating floor system K11/27 Acoustic separating floor P10/500 Anti-vibration mats or pads |
SKU Code | RDAS |
Specification data - Compression isolators
Classification data | |
Compression isolators type | Turret. |
Colour code | Blue. Guidance for specification option:
Yellow. Guidance for specification option:
|
Load | Manufacturer guidanceLoads between 25–57 kg dependent on colour selected. Insert requirements. |
Deflection | 10 mm. |
Thickness | 70 mm. |
Sustainability data
Material | Rubber Steel Metal |
