Fully off-grid, temporary column lighting.
Application
Temporary portable site lighting.
Creates zonal lighting for compounds, commercial areas, car parks, roads and walkways.
Suitable applications include:
- Site lighting.
- Rail compounds.
- Carparks.
- Construction sites.
- Highways.
- Civil projects.
- Film and TV locations.
- Outdoor events.
- Highways.
- Rail infrastructure.
- Infrastructure projects.
Description
Fully off-grid temporary column lighting for construction, highways, rail and civil projects.
Features and benefits:
- Designed, tested and manufactured in the UK.
- Reliable alternative to generator-powered tower lights.
- 100% off-grid, no 'back-up' on grid connection required.
- Dual-energy input from solar panels and wind turbine.
- Next-generation battery storage technology.
- Tested to -25/+50 degrees with no loss of efficiency.
- Long battery life, 20 years plus. Battery remains 97% efficient after 10 000 cycles.
- No loss of battery efficiency in sub-zero conditions.
- Easy and quick to install with no infrastructure required.
- Hinged column and fail-safe winch system for easy installation.
- NAL socket to retain column securely.
- Compact footprint compared to traditional tower lights.
- Silent and clean with no emissions.
- Zonal lighting: superior to traditional tower lights.
- Fully monitored and controlled via our private network.
- Zero running costs.
General information
Color | Black Grey Silver Beige Blue |
Finish | Galvanized |
Material | Steel |
Shape | Circle |
Width | 76 mm |
Height | 6000 mm 5000 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/575 Lighting columns |
SKU Code | KV-6 |
Specification data - Renewable powered lighting columns
Description | Fully off-grid, temporary column lighting. Die cast aluminium LED lantern. |
Manufacturer | Kight Limited. |
Standard | Complies with BS Standard lighting column. |
Height (nominal) | Total: 6 m. Lantern: 5 m. |
Base | |
Type | Concrete block, 800 x 800 x 600 mm. |
Root length | Not applicable. |
Light source | |
Luminous flux | 2196 lumen. |
Light distribution | 35 x 25 m. Guidance for specification option: Recommended distance between lights: 40 m. |
Colour temperature | Manufacturer's standard. |
Renewable technologies | |
Photovoltaics | |
Cell type | Manufacturer's standard. |
Format | 3 x 50 W solar panels. Guidance for specification option:
|
Nominal output | 150 W peak solar. |
Wind turbines | |
Wind turbine type | KLE-300. Guidance for specification option:
|
Rating | Related power: 300 W. |
Cut-in wind speed (minimum) | Manufacturer's standard. |
Cut-out wind speed (maximum) | Manufacturer's standard. |
Battery | |
Type | Manufacturer's standard. |
Capacity | 150 W peak solar. 300 W peak wind. 40 Ah/ 12 V/ 552 W/h. |
Connectivity | Remote monitor LoRa end node. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Material and finish | Galvanized steel. |
Colour | Guidance for specification option: Available in a wide range of colours; consult manufacturer and insert requirements. |
Width | Shaft: 76 mm. Manufacturer guidanceShaft width. |
Total weight | 800 kg. |
Impact protection (minimum) | IK10. |
Initial LED luminaire efficacy (minimum) | 183 lm/W. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Product certifications

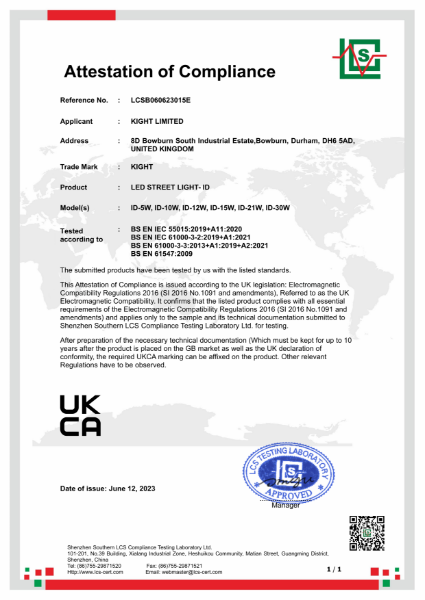

Certificate of Compliance
BS EN 61000-3-3:2013+A1:2019+A2:2021
Certificate of Compliance
BS EN 61547:2009
Certificate of Compliance

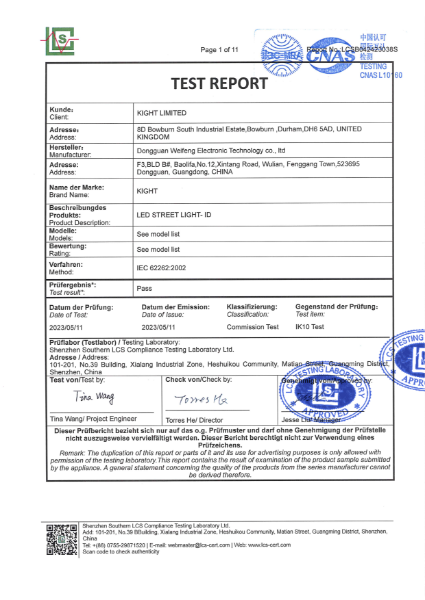

BS EN 62262 IK10
Certificate of Compliance
BS EN IEC 55015:2019+A11:2020
Certificate of Compliance
BS EN IEC 61000-3-2:2019+A1:2021
Certificate of Compliance

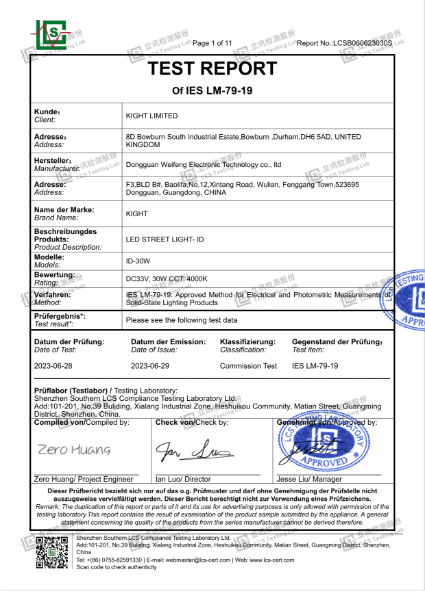

IES LM-79-19 LED Lamp Performance
Certificate of Compliance

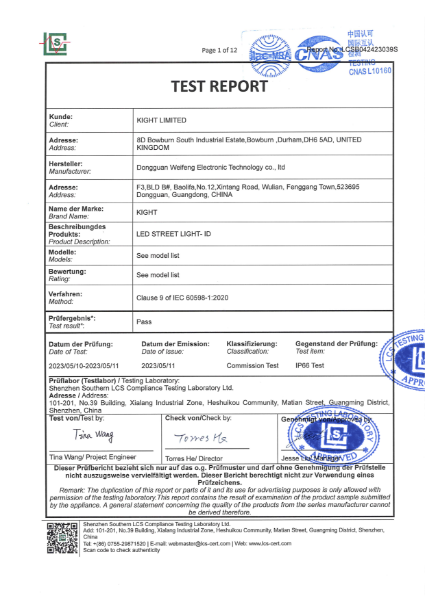

IP66 Ingress Protection
Literature
Literature type
Kight Green Energy Lighting and Energy Generation Solutions Brochure
Kight Off-Grid - General Product Data Sheet
Monocrystalline Solar Panel Specification

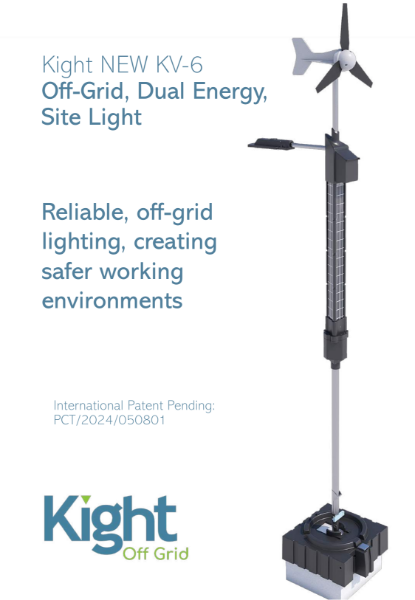

KV6 - Product Data
