Kestrel Aluminium Rebate And Bi-Fold Door System - Aluminium door system
Verified by manufacturer 4 months ago
Corner folding sliding door system
Corner folding sliding door system

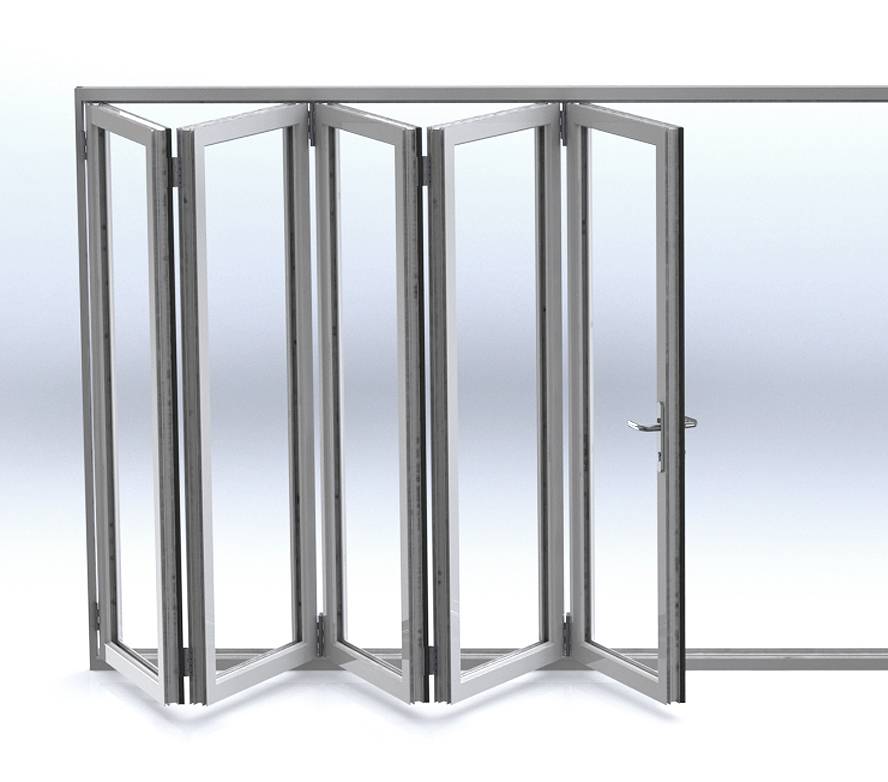

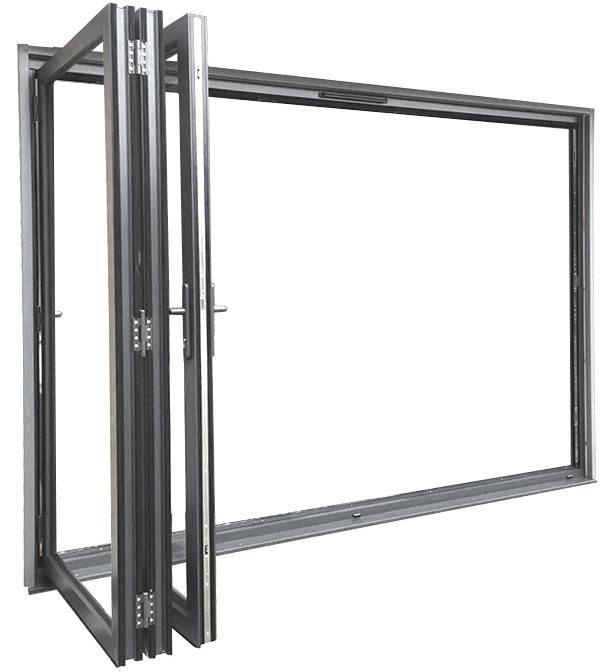

Sliding folding aluminium doors.
Application
Suitable for residential buildings.
Description
A thermally broken polyamide door system. The system allows for the construction of single and double rebated doors, and odd leaf sliding folding doors. Doors can be constructed as open in or open out.
Construction consists of outer frame and door frames mitred and mechanically jointed using prepared die-cast mechanical corner cleats and die-cast mechanical corner chevrons/stainless steel corner chevrons. Infills are secured by clip fit beads internally. Integral mullions/transoms are secured by driving screws into extruded screw ports or by mounting blocks. Structural coupling mullions and transoms are available to construct multi-light configurations. Weatherstripping is by purpose-designed bubble seal gaskets and woven piles.
The system will accommodate a range of glazing thickness of 28mm for double glazed units. Glass is dry set between TPE/EPDM bespoke gaskets internally and externally.
Features and benefits:
- Designed generally to BS EN 14351-1:2006.
General information
Finish | Anodized Powder-coated |
Material | Aluminium Guidance for specification option: Aluminium alloy 6060/6063 T6. |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceDoor width: 700–1000 mm. |
Height | Bespoke Manufacturer guidanceDoor height: 2300–2700 mm. |
Warranty description | Ten year Guidance for specification option: Kestrel Aluminium Profiles have a ten-year warranty. See powder coating guarantee. |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Aluminium doorsets
Standard | To BS EN 12020-2:2001, BS 3987:1991, BS EN 12206-1:2021, BS 4873:2016, BS EN 14351-1:2006+A2:2016, BS EN ISO 10077-2:2017. |
Third party accreditation | PAS 24:2016. |
Configuration | Rebate.Sliding folding. |
Doorset size | 1000 x 2426 mm.Guidance for specification option: Maximum width x height. |
Frame | |
Material | Aluminium.Guidance for specification option: Aluminium alloy 6060/6063 T6. |
Finish | |
Coating | Powder coating to BS EN 12206-1:2004.Anodizing to BS 3987:1991.Mill finish. |
Colour | Manufacturer guidanceContact manufacturer for illustrations of the colours available. |
Door leaf | |
Material | Aluminium. |
Glazing | |
Type | 28 mm double glazed, to BS 6180 where applicable.Guidance for specification option: In accordance with Building Regulations including Document L. |
Beading | |
Type | Glazing Bead (Square) - KAS635.Guidance for specification option: Internal. Glazing Bead (Bevel) - KAS636.Guidance for specification option: Internal. |
Finish | |
Coating | Powder coating to BS EN 12206-1:2004.Anodizing to BS 3987:1991.Mill finish. |
External colour | Manufacturer guidanceContact manufacturer for illustrations of the colours available. |
Internal colour | Manufacturer guidanceContact manufacturer for illustrations of the colours available. |
Hardware | KAS537 Hinge.KAS538JCKL Centre keep and KAS538JFKS Top/bottom keep set.KAS538 JCKR Centre keep and KAS538JFKS Top/bottom keep set.KAS538J2HLR Truelock Single door.KAS538J2HLL Truelock Single door.KAS538S2HLL Truelock Double master door.KAS538S2HLR Truelock Double master door.KAS538SSDLL Truelock Double slave door.KAS538SDLR Truelock Double slave door.KAS538-SDSB372, KAS538-SDSB175 slave door shoot bolts.KAS538SDSBEXT shoot bolt extension.KAS538LST – Birmingham Lever/Lever set.KAS 231 trickle vent.KAS537TG Top guide.Guidance for specification option: Sliding folding door only. KAS537BR730 bottom roller for KAS730 track.Guidance for specification option: Sliding folding door only. KAS537BR739 bottom roller for KAS739 track.Guidance for specification option: Sliding folding door only. KAS537BRR730 bottom roller for KAS730 track Right hand.Guidance for specification option: Sliding folding door only. KAS537BRR739 bottom roller for KAS739 track Right hand.Guidance for specification option: Sliding folding door only. KAS537BRL730 bottom roller for KAS730 track Right hand.Guidance for specification option: Sliding folding door only. KAS537BRL739 bottom roller for KAS739 track Right hand.Guidance for specification option: Sliding folding door only. KAS537TGR or KAS537TGL Top guide right or left.Guidance for specification option: Sliding folding door only. KAS539-CGB, KAS539SH, intermediate door leaf locking handle.Guidance for specification option: Sliding folding door only. |
Hardware | Black. Silver. White. |
Jointing | Mechanical. |
Glazing | Will accept insulating glass units and infill panels 24 – 32 mm thick. |
U-value | 1.6 W/m²K. |
Beading | Internal. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.0 kg CO₂ eq/kg Self declared |
Recyclability | Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79 % |
