Kestrel Aluminium Inline Sliding Patio Door System - Aluminium door sliding system

Verified by manufacturer 4 months ago

Inline Sliding

Kestrel Aluminium Systems Variant:

Sliding patio door system.

Jump to:
+44 (0)1213333575 Website

Application

Residential new build, refurbishment and light commercial.

Description

Innovative and practical, the Sliding Patio Door System

provides an alternative to a set of French or folding

sliding doors.


The minimal sightlines create a dramatic removable

wall that provides uninterrupted views to the outdoors.

Whilst a thermally efficient, security tested door system

provides peace of mind that the home is safe and secure.


Features and benefits:

  • Double track sliding door.
  • Single and dual colour powder coated.
  • Double and triple glazed.
  • 106 mm interlock.
  • 111 mm outer jamb.
  • 33 mm low threshold.
  • Soft brake close option.
  • Integral trickle vents.
  • Low line gaskets.
  • PAS24 compliant.

General information

Finish

Powder-coated

Anodized

Mill

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Manufacturer guidance

Maximum door leaf width: 2000 mm.

Height

Bespoke

Manufacturer guidance

Maximum door leaf height: 2300 mm.

Warranty description

Ten year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

L20/55 Doorsets

L20/60 Doors

Specification data - Sliding door and partition sets

Arrangement

Inline sliding.

Door leaves

-

Construction

Aluminium.

Finish and colour

Mill finish.

Etched and anodized Silver AA25.

Guidance for specification option:

 other colours on request.

Polyester powder coated.

Guidance for specification option:

See separate list for standard colour range available.

Operation

Manual.

Accessories

Soft brake close.

Colour:

-

Manufacturer guidance

Single and dual colour powder coated options available, consult manufacturer for details and insert requirements.

Glazing

Guidance for specification option:

Will accept double or triple IGU and infill panels 28 - 42 mm thick.

Jointing

Mechanical.

Beading

Internal.

U-value

1.6 W/m²K.

Standards

BS EN 12020-2, BS 3987, BS EN 12206-1, BS 4873, BS EN 14351-1, BS EN ISO 10077-2, PAS 24.

Size (w x h)

2000 x 2300 mm.

Weight

200 kg.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

4.0 kg CO₂ eq/kg

Self declared

Recyclability

Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

79 %

Literature

Datasheet Kestrel Systems Technical Specifications

Datasheet Kestrel Systems Technical Specifications

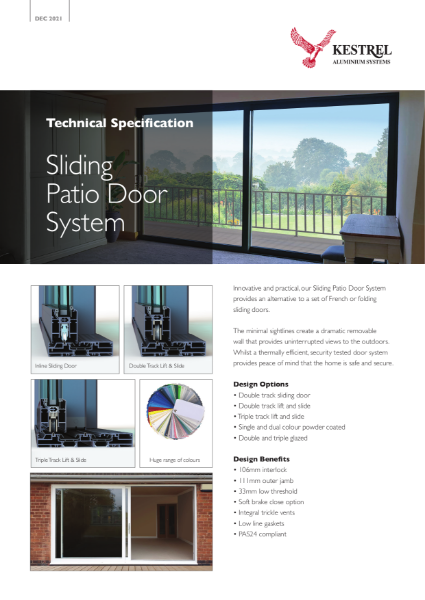

Datasheet Kestrel Patio Sliding Door System

Datasheet Kestrel Patio Sliding Door System
