Framing

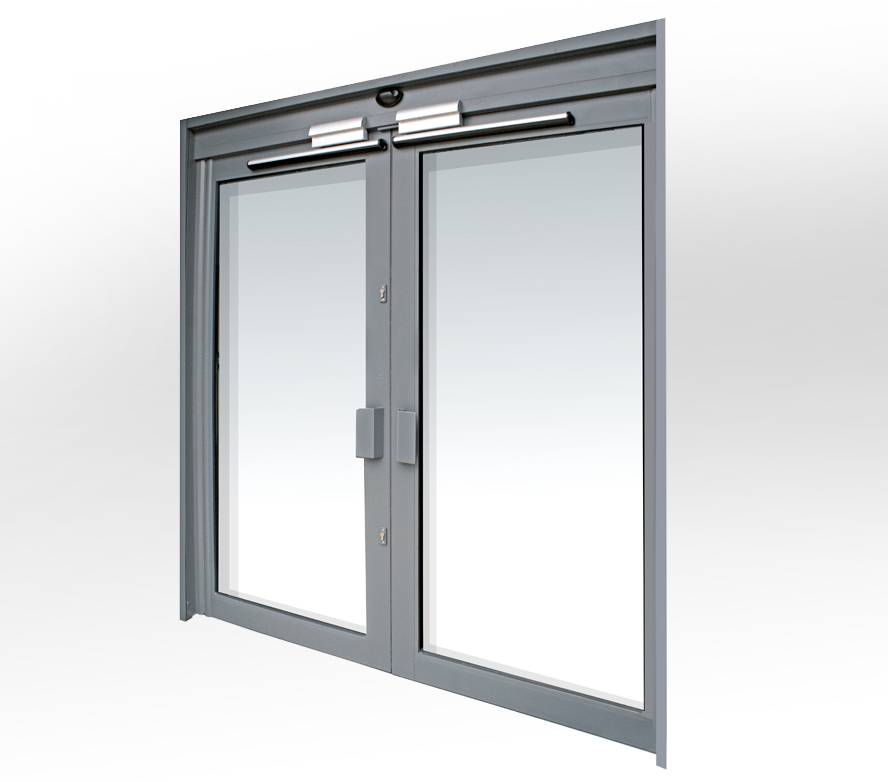

Aluminium commercial doorsets.
Suitable for all types of buildings where entrances and doors of a commercial nature are required.
An aluminium alloy range of doors. Door sections are square cut and assembled with extruded engineered cleats and M10 tie rods for additional strength and robustness. Infills of glass are glazed by bead glazing internally and externally. All vertical door beads are mechanically fixed externally for security. The system will accommodate a range of glazing thicknesses from 6 to 11 mm for single glazed units and from 24 to 28 mm double glazed units. Glass is set dry between TPE gaskets internally and externally, and weatherstripping is woven pile, polypropylene backed, premier density.
Features and benefits:
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidance
|
Height | Bespoke Manufacturer guidance
|
Warranty description | Ten year Guidance for specification option: Kestrel Aluminium Profiles have a ten-year Warranty. See powder coating guarantee. |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Configuration | Single leaf.Double leaf.Sliding.Automatic. |
Doorset size | Manufacturer guidanceSliding folding: Door width: 500-900 mm. Maximum door height: 2700 mm. Pivot: Maximum door width: 1250 mm. Maximum door height: 2500 mm (dependent on hinge specified). |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Powder coating to BS EN 12206-1:2004.Anodizing to BS 3987:1991.Guidance for specification option: Natural anodized finish AA25. |
Door leaf | |
Material | Aluminium. |
Glazing | |
Type | 28 mm insulating glass units incorporating low emissivity glass (en = 0.05) and argon filled cavity. Inner pane 6 mm toughened, and outer pane 6.4 mm laminated, to Building Regulations including Document L and BS 6180 where applicable. Maximum centre pane U-Value = 1.2 W/m²K. Glazing on the southeast and southwest elevations to have Guardian Sunguard HS Superneutral 70/71 coating. |
Manifestation | Not required.Required. |
Finish | |
Coating | Powder coating to BS EN 12206-1:2004.Anodizing to BS 3987:1991.Guidance for specification option: Natural anodized finish AA25. |
Hardware | KAS433 - Concealed vertical rod exit device, AR.KAS504.H - MS 2200 Hook lock with KAS523 euro-profile cylinder.KAS571 - Shoot bolts in silver anodized finish (double doors only).KAS574 - Concealed overhead closer.KAS577 - Face fitted panic bar, EXIDOR 294.KAS578 - Concealed vertical rod exit device, AXIM.Handles to comply with DDA. |
Jointing | Mechanical. |
Glazing | 6 - 11 mm (single glazing). 24 mm (double glazing). |
U-value | 3.5 W/m²K. |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.0 kg CO₂ eq/kg Self declared |
Recyclability | Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79 % |
