Kestrel Aluminium 60mm Polyamide Window System - Aluminium window system

Name: Kestrel Aluminium 60mm Polyamide Window System - Aluminium window system
Brand: Kestrel Aluminium Systems
SKU: piaazYPUyiA7DuggDxUzhh

Verified by manufacturer 4 months ago

Casement

Kestrel Aluminium Systems

A polyamide window system suitable for all types of buildings.

Jump to:

+44 (0)1213333575 Website

Application

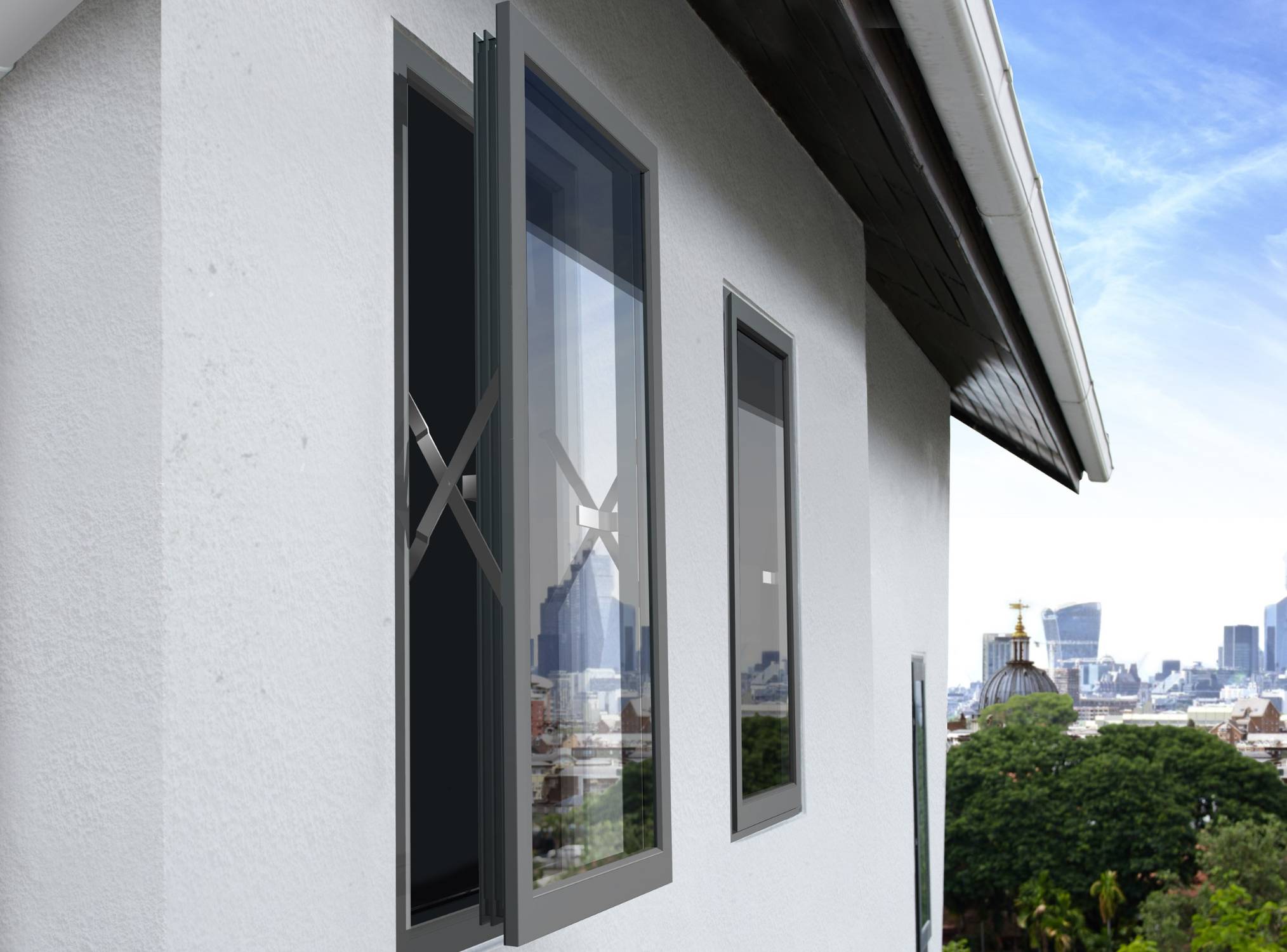

Suitable for both residential and commercial application such as homes, schools, offices and leisure facilities.

Description

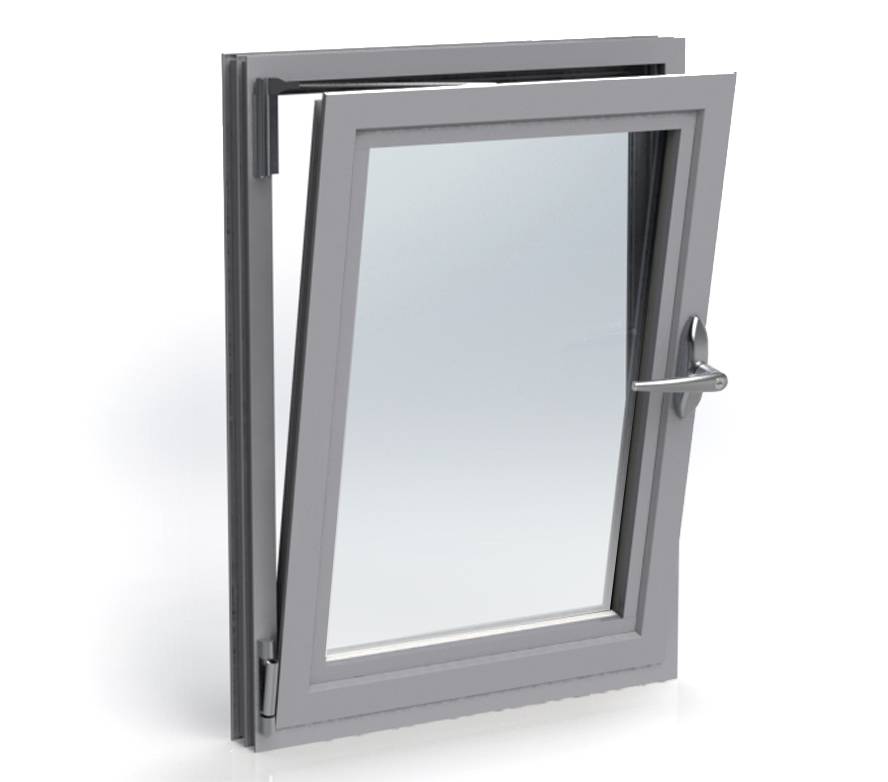

The Kestrel Aluminium Systems 60mm polyamide window allows the construction of the most common types of top and side hung open-out vents, tilt before turn, and open in bottom or side hung vents and fixed lights as an individual or composite window styles. The system can be externally (open out casement vents) beaded or internally (TBT vents and casement vents with adapter used) beaded.

Frame profiles are typically 60 mm deep. Odd leg and curtain wall outer frames are also available. Square or bevel beads are standard. A range of cill sections, corner posts and couplers complement the range.

Features and benefits:

Designed generally in accordance with BS 4873:2004.
Uses a 24 mm PA66 GF25 polymide thermal break.
Polyamide thermal break allows for single or dual colour options.

General information

Color	Silver Other Manufacturer guidance Anodizing: Silver AA25 or colours on request. Powder coating: Contact manufacturer for available colours.
Finish	Anodized Powder-coated Mill
Material	Aluminium Manufacturer guidance Aluminium alloy = 6060/6063 T6.
Shape	Square Rectangle
Length	Bespoke
Width	Bespoke Manufacturer guidance Open out – Top hung: Maximum vent width 1200 mm. Open out – Side hung: Vent width 350–1000 mm. Open in: Vent width: 1200–1800 mm.
Height	Bespoke Manufacturer guidance Open out – Top hung: Vent height 350–2000 mm. Open out – Side hung: Maximum vent height 1300 mm. Open in: Maximum vent height 1800 mm.
Warranty description	Ten year

Uniclass	Pr_30_59_98_02 Aluminium window unitsPrimary
CAWS	L10/10 Wood windows L10/330 Aluminium windows

Specification data - Aluminium window units

Standard	To BS 4873:2004, BS EN 12020-2:2001, BS 3987:1991, BS EN 12206-1:2021, BS 4873:2016, BS EN 14351-1:2006+A2:2016, BS EN ISO 10077-2:2017.
Third-party certification	PAS 24:2016.
Dimensions and configurations	- Manufacturer guidance Open out - Top hung: Vent height: 350-2000 mm. Maximum vent width: 1200 mm. Open out - Side hung: Maximum vent height: 1300 mm. Vent width: 350-1000 mm. Open in: Maximum vent height: 1800 mm. Vent width: 1200-1800 mm.
Product performance	-
Weather performance	-
UK exposure category	To BS 6375-1, 2000 Pa.
Air permeability	To BS 6375-1, Class 2. Guidance for specification option: 600Pa.
Watertightness	To BS 6375-1, Class 5A.
Resistance to wind load	To EN 12210, Class 5. Guidance for specification option: Tested with winds up to 2000 Pa in pressure.
Durability	-
Operation and strength characteristics	To BS 6375-2. Guidance for specification option: Complies with Strength characteristics in accordance with BS EN 14351, Result - Pass.
Thermal	-
Whole window U-value	- Manufacturer guidance Windows constructed with thermally broken profiles meet current Building Regulation Approved Document (AD) L1A, L1B/L2A, L2B requirements using a range of Insulating Glass Units (IGU's). Standard window styles in accordance with GGF data sheet 2.2 and BR443 can be used to demonstrate compliance to Building Regulations thermal performance requirement, or NON domestic window styles can be calculated on an individual basis to confirm their thermal performance. SAP 2009 Table 6e can also be used in the absence of test data or calculated values.
British Fenestration Rating Council Window Energy Rating	C.
Frame	-
Finish as delivered	-
Coating	Polyester powder coating to BS EN 12206-1:2004. Anodizing to BS 3987:1991. Mill finish.
Colour	Guidance for specification option: Anodizing: Silver AA25 or colours on request. Powder coating: Consult manufacturer for details.
Ventilator	None. KAS 231 trickle vent.
Glazing or infill	-
Standard	- Manufacturer guidance In accordance with Building Regulations including Document L and BS 6180 where applicable.
Requirements	24 mm double glazed. 28 mm double glazed.
Hardware	KAS 246 and KAS 247 Securistyle Defender friction hinges 13 mm stack height. Guidance for specification option: Open out casement window. KAS 240 inline Virage key locking espagnolette handle. Guidance for specification option: Open out casement window. KAS 241 Virage Key locking cockspur handle. Guidance for specification option: Open out casement window. KAS 243 Slide a side espagnolette and keeps. Guidance for specification option: Open out casement window. KAS 245 TSL Bi-part espagnolette and keeps. Guidance for specification option: Open out casement window. Visible hinge tilt before turn gear sets. Guidance for specification option: Open in tilt before turn window. Invisible hinge tilt before turn gear sets. Guidance for specification option: Open in tilt before turn window. Tilt only bottom hung open in gear sets. Guidance for specification option: Open in tilt before turn window. Side hung open in gear sets. Guidance for specification option: Open in tilt before turn window.
Operation	-
Type	Manual.

Hardware	Black. Silver. White.
Glazing bead	Glazing Bead (Square) KAS633 (24mm double glazed). Glazing Bead (Bevel) KAS634 (24mm double glazed). Glazing Bead (Square) KAS635 (28mm double glazed). Glazing Bead (Bevel) KAS636 (28mm double glazed).
Sub sill	110mm Subcill KAS621/623. 150mm Subcill KAS621/624. 180mm Subcill KAS621/625. 205mm Subcill KAS621/626.
Hinges	Restricted hinge. Standard hinge. Sterling hinge. Manufacturer guidance Consult manufacturer's literature for further details on hinge configurations.
Handles	Locking. Non locking.
Security	Multi-point bi-part espagnolette locking. PAS24 compliant.
Opening width	1000 mm (maximum).
Height	2000 mm (maximum).
U-value	1.7/WERC.
Beading	Internal beading. External beading.
Trickle vent	As standard. Slimline.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	4.0 kg CO₂ eq/kg Self declared
Recyclability	Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	79 %
