KESSEL System Chamber 1000Ø - 600Ø Opening

KESSEL System Chamber 1000Ø - 600Ø Opening

IPS Flow Systems

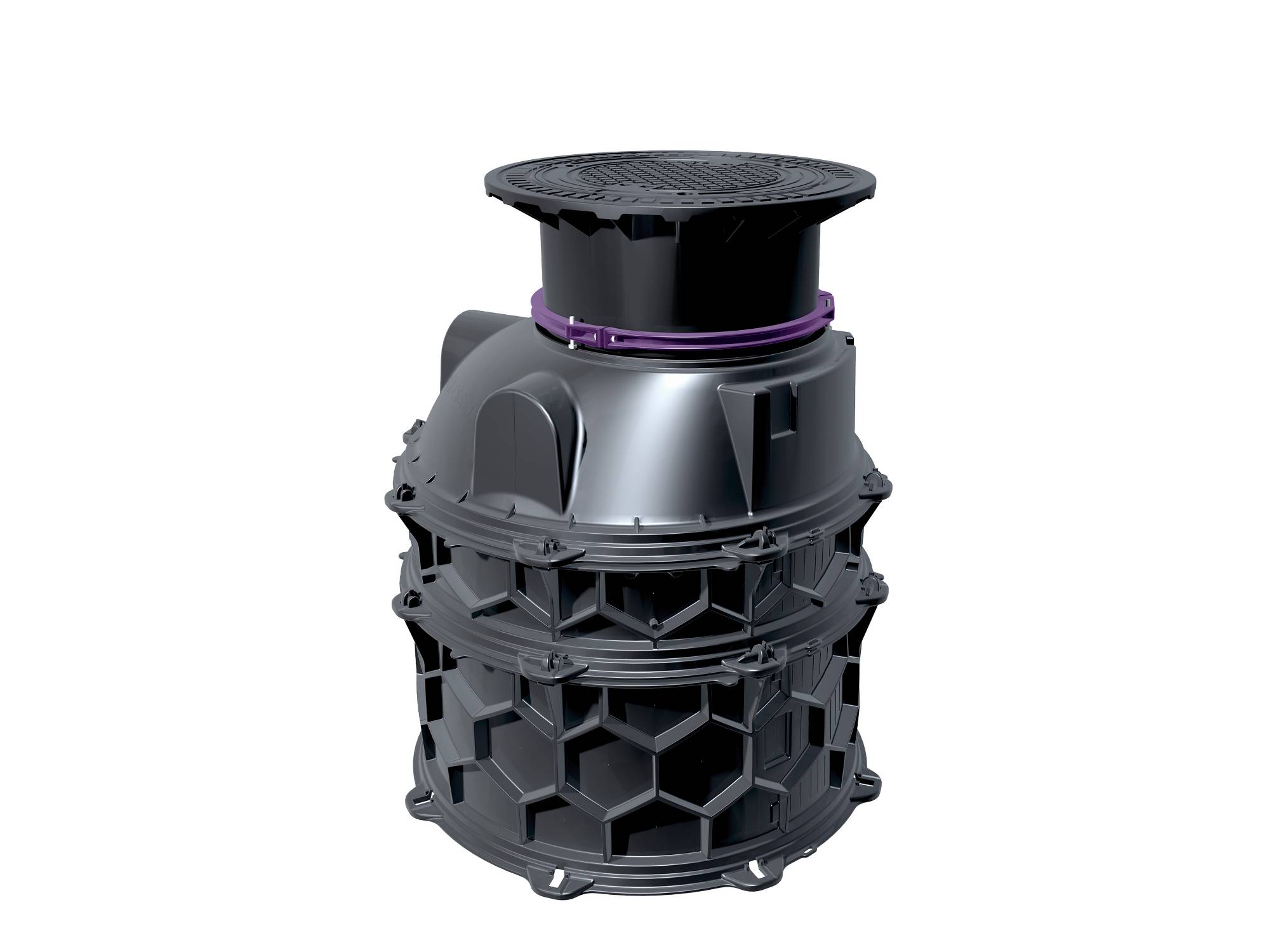

Engineering system chamber with 600 mm-diameter access opening. For use with base section to form Ecolift XL hybrid lifting station.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Hybrid lifting station section, for underground installation in combination with the Ecolift XL base unit (specified separately).

Handles groundwater depths up to 3000 mm. Minimum inlet depth applies for maintenance; consult manufacturer's literature.

Description

Engineering system chamber with 600 mm-diameter access opening. For use with base section to form Ecolift XL hybrid lifting station.


Features and benefits:

  • Modular design comprising:
  • Chamber rings with access steps fitted;
  • With telescopic height adjustable upper section;
  • Round cover made of cast iron;
  • Includes all sealing gaskets and wedge connectors required for installation.
  • Covers surface water tight.
  • Additional installation depths on request.

General information

Color

Black

Material

High-density polyethylene (PE-HD)

Cast iron

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To EN 13598-2.

Classification

Manufacturer's standard.

Form

Engineering system chamber.

Material

High-density polyethylene (PE-HD)/ cast iron.

PE-HD chamber/ cast iron cover.

Consult manufacturer for details.

Connections

n/a.

See separate base for connection details.

Integral accessories

None.

All accessories, including extension sections and electrical options to be specified as part of the base unit.

Installation depth

Installation depth equals depth of wastewater pipe according to plan, minus 522 mm (height of engineering systems base from base of inlet to top).

1130–1379 mm.

1380–1629 mm.

1630–1879 mm.

1880–2129 mm.

2130–2379 mm.

Show more

Class

A/B.

D.

Base

KESSEL Ecolift XL Backwater Pumping Station 4 L/s to 20 L/s - System Base for use with Engineering Chambers.

To be specified separately; included here for cross-reference only.
