KESSEL Staufix Ø 50 and Ø 75
Compare variants

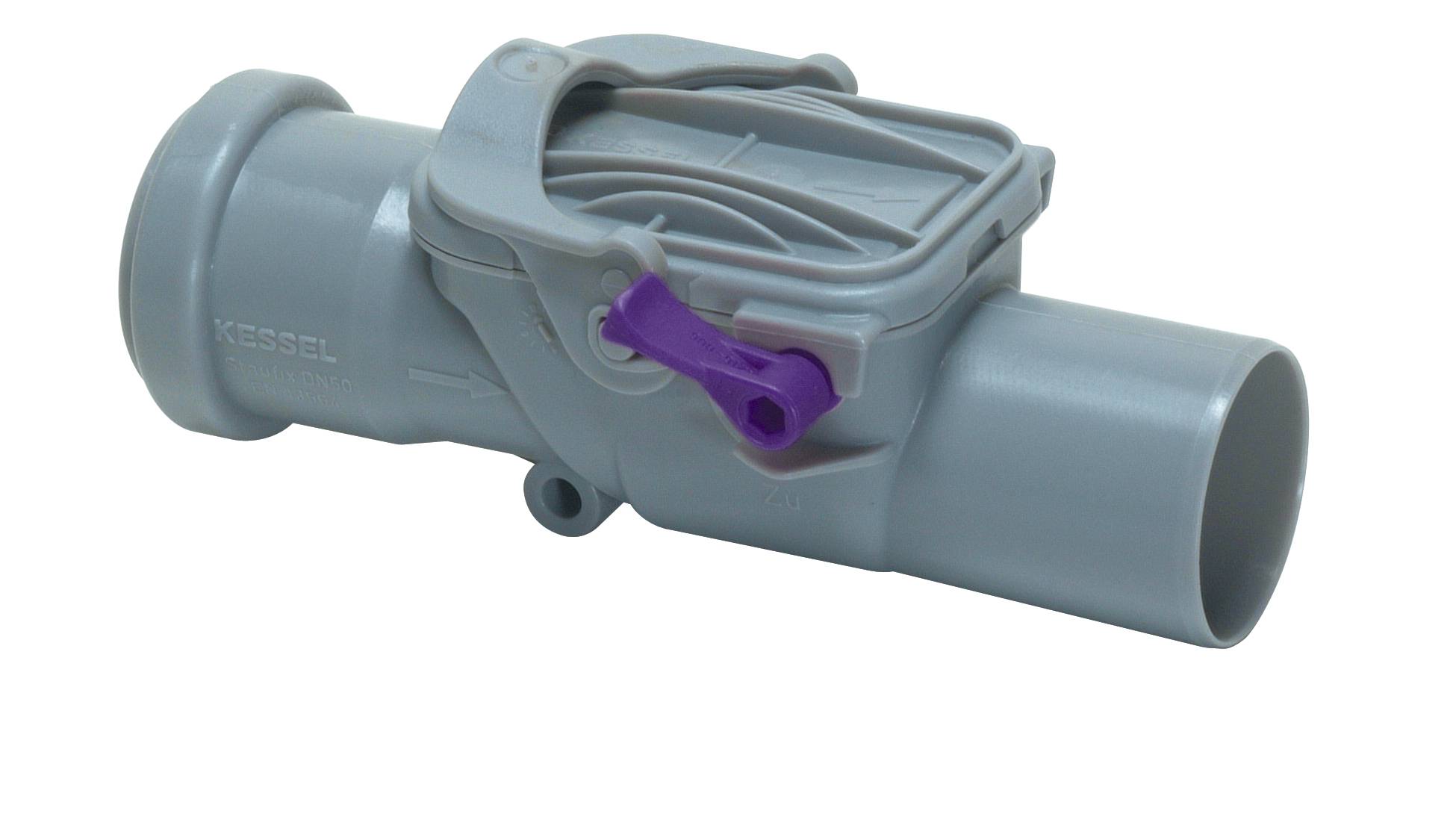

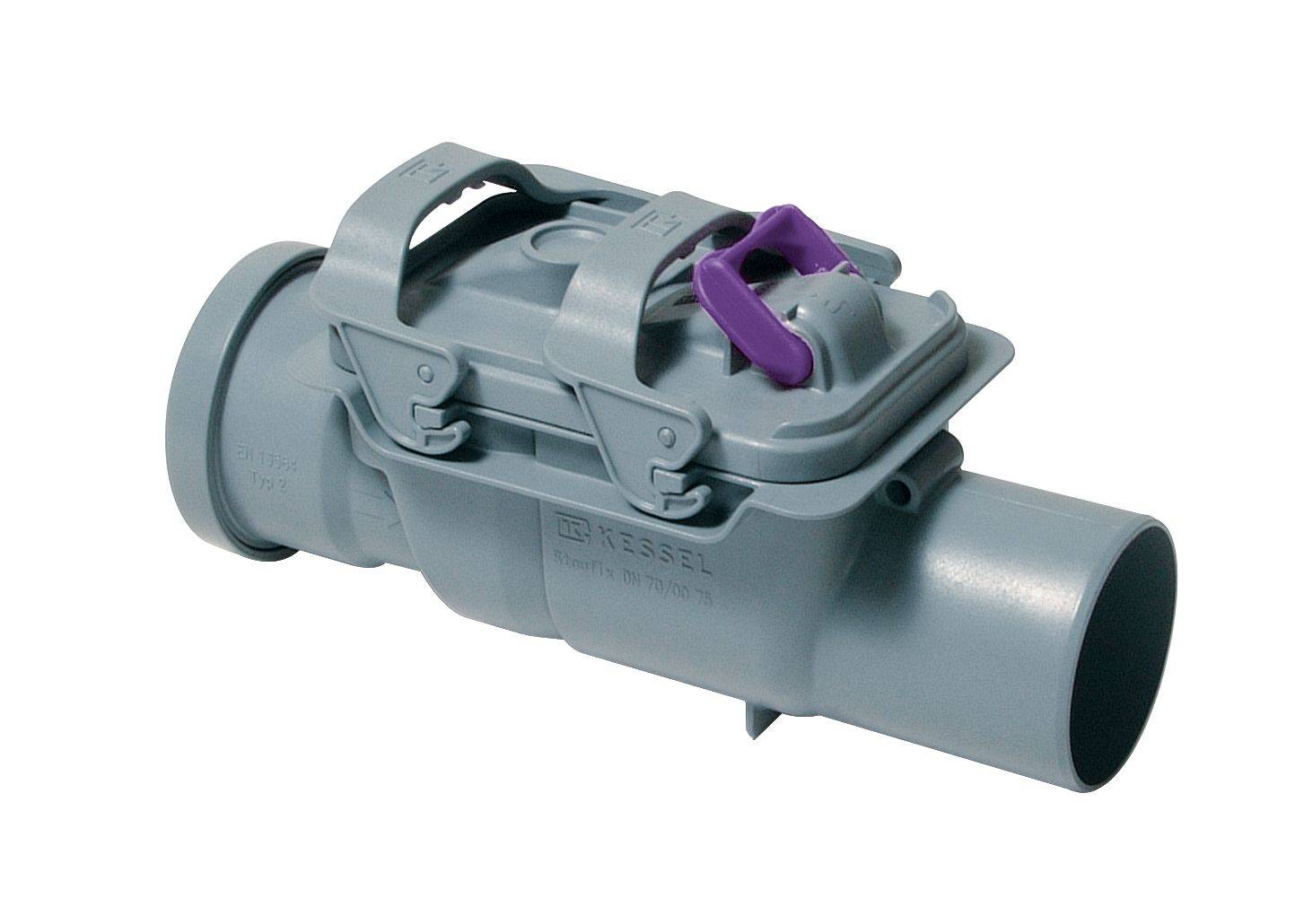

KESSEL Staufix Ø 50 and Ø 75

Twin flap locking backwater valve, 50 mm diameter

IPS Flow Systems Variant:

Backwater protection for individual drainage points such as washbasins, showers or washing machines.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Anti-flood valve, for installation in an exposed wastewater pipes of 50 or 75 mm diameter.

Can be installed as individual safeguards for washbasins, showers or washing machines, as a central backwater protection in horizontal drainage pipes or as an emergency overflow for heating systems.

Description

Backwater protection for individual drainage points such as washbasins, showers or washing machines.


Features and benefits:

  • Standard-compliant: Valves are equipped with two flaps and an emergency closure, and are the first standard-compliant backwater double valves for wastewater without sewage per EN 13564 Type 2.
  • Made from polymer.
  • Inlet/ outlet for connection to HT-pipe according to EN 1451-1.
  • Versatile in use: They can be installed as individual safeguards for washbasins, showers or washing machines, as a central backwater protection in horizontal drainage pipes or as an emergency overflow for heating systems.
  • The maintenance and cleaning of the backwater valves is particularly convenient and possible without any tools whatsoever thanks to the quick-release closure.
  • Also available: EN 13564 Type 5 siphons (50 m diameter only; consult manufacturer for details).

General information

Color

Grey

Material

Polymer

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R11/11 Plastics branch pipework

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Type 2.

Form

For installation into exposed wastewater pipe.

Two polymer self-closing flaps.

73 050

Material

Polymer.

Rodent protection variants include a stainless steel flap.

Consult manufacturer for details.

Connections

Inlet/ outlet for connection to HT-pipe according to EN 1451-1.

Outer diameter: 50 mm.
