KESSEL Staufix Basic
Compare variants

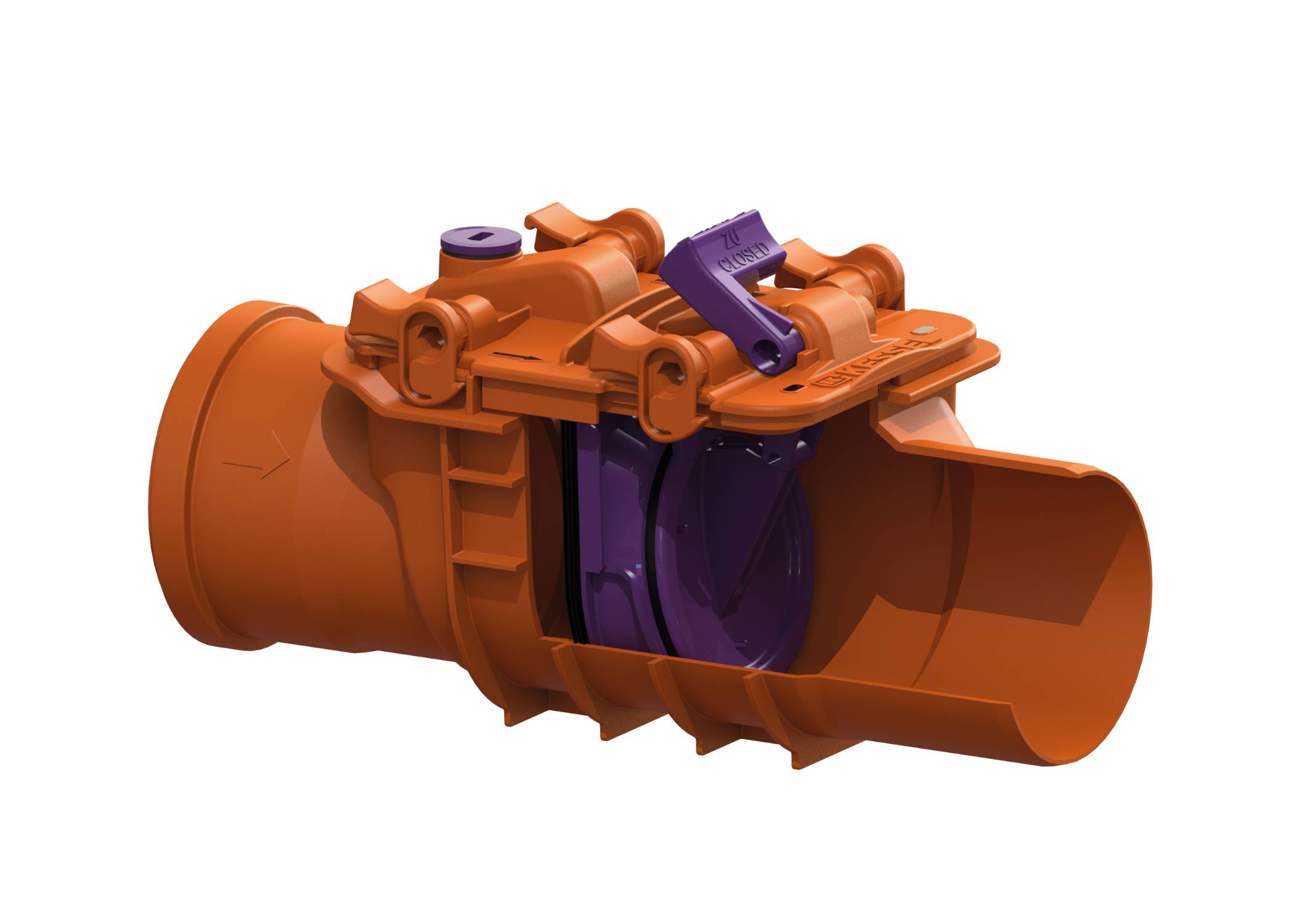

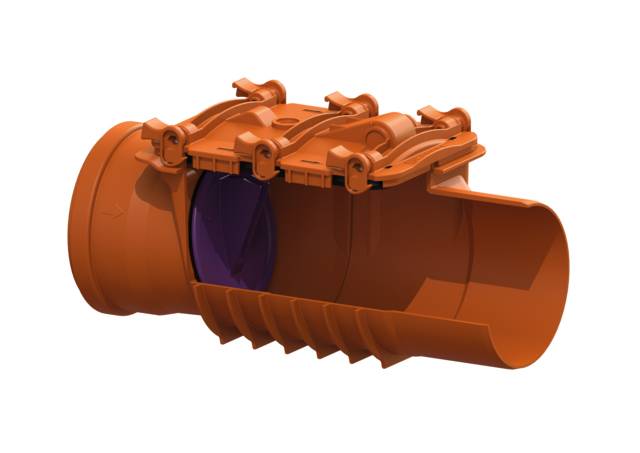

KESSEL Staufix Basic

Twin flap locking backwater valve, 110 mm diameter

IPS Flow Systems Variant:

Backwater valves for wastewater without sewage, with additional control functions.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Anti-flood valve, for installation in an exposed wastewater pipe.

Description

Backwater valves for wastewater without sewage, with additional control functions.


Features and benefits:

  • Provides same safe, reliable and established protection against backwater.
  • Corrosion-free: made from polymer.
  • Low drop: minimal height difference of 7 mm between the inlet and outlet, making it suitable for installation in existing drainage pipes.
  • Inlet/ outlet for connection to PVC pipe according to EN 1566-1.
  • The cover can be opened or locked by hand thus providing access without the need for tools.
  • Optional stainless steel rat protection flap prevents rats and other vermin entering the premises.


If wireless alerts are required, see Staufix Control (specified separately).

General information

Color

Orange

Material

Polymer

Stainless steel

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R11/11 Plastics branch pipework

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Type 2.

Form

Installation area: 650 x 300 mm.

For installation into exposed wastewater pipe; without rodent protection.

Two polymer self-closing flaps.

73 100

For installation into exposed wastewater pipe; with rodent protection.

One polymer self-closing flap, one stainless steel self-closing flap.

73 100R

Material

Polymer.

Rodent protection variants include a stainless steel flap.

Consult manufacturer for details.

Connections

Inlet/ outlet for connection to PVC pipe according to EN 1566-1.

Outer diameter: 110 mm.
