KESSEL Ecolift XL Backwater Pumping Station 4 L/s to 20 L/s - System Base for use with Engineering Chambers

Single auto flap, Duo pump 1400-S1

IPS Flow Systems Variant:

Base section for Ecolift XL hybrid lifting station where fre-standing set-up or installation in ground is required. With motor-driven flaps for wastewater with or without sewage.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Hybrid lifting station, for dry, on-the-floor installation in frost-free rooms, outdoor underground installation or installation in a concrete floor in combination with an engineering

system chamber.


Note: The pressure pipe must be connected to a welded

polyethylene (PE) pipe; see manufacturer's literature for product-specific details.

Description

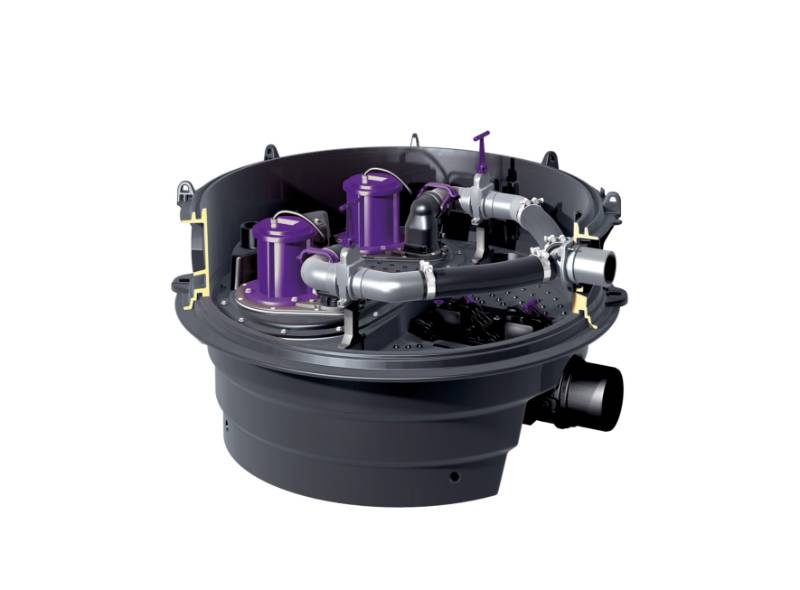

Base section for Ecolift XL hybrid lifting station where fre-standing set-up or installation in ground is required.


Where minimum installation height applies, see the KESSEL Ecolift XL Backwater Pumping Station 4 L/s to 20 L/s - Complete Unit (Minimum Installation Height) product.


Features and benefits:

  • With motor-driven flaps for wastewater with or without sewage.
  • All models are Duo (two pump), and can be specified with one or both flaps motor-driven (both allows the system to be used with sewage).
  • Base unit houses pumps specified, and the unit is completed with one of a range of engineering system chambers (specified separately).
  • Inlet/ outlet: 160 mm diameter.
  • Includes Comfort Plus control unit.
  • 230 V or 400 V (230 V version ready to plug in).
  • Handles groundwater depths up to 3000 mm.

General information

Color

Black

Material

Polyethylene (PE)

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Manufacturer's standard.

Form

Two pumps with one motor-driven backwater flap for wastewater without sewage.

874 10 26


Amperage: 7.3 A.

Input power: 1.6 kW.

Power: 1.1 kW.

Pumping capacity: 28 m³/h.

Backwater height: 7500 mm.

Material

Polyethylene (PE).

Consult manufacturer for details.

Connections

Inlet/ outlet diameter: 160 mm.

Integral accessories

None.

Extension section, 500 mm.

Includes two access steps, installed.

Note: Without gasket and connecting wedges.

Extension section, 250 mm.

Includes one access step, installed.

Note: Without gasket and connecting wedges.

Set of connecting wedges for extension sections.

Profiled gasket for extension sections.

Cable attachment set.

Cable piping gasket set.

For use with 230 V control units only.

Includes pipe sealing gasket, PVC collar plug, twin flange (1100 mm diameter), HT collar plug, cable connections and retaining clip with screws.

Cable extension for flap motor, 10 m.

Allows extension up to 20 or 30 m.

Quantity required dependent on model specified; consult manufacturer's literature or specify extension distance required.

Cable extension for probe(s), 10 m.

Allows extension up to 20 or 30 m.

Quantity required dependent on model specified; consult manufacturer's literature or specify extension distance required.

Cable extension for pump SPF 1400-S1, 10 m.

Allows extension up to 20 or 30 m.

Quantity required dependent on model specified; consult manufacturer's literature or specify extension distance required.

TeleControl telemetric system.

For connection to KESSEL Comfort control units, allows relaying of full text messages to up to three mobile phones.

Includes internal antenna (without SIM card).

TeleControl telemetric system with antenna booster.

For connection to KESSEL Comfort control units, allows relaying of full text messages to up to three mobile phones.

Includes internal antenna (without SIM card) and antenna booster (with magnetic base) to improve the reception.

TeleControl telemetric system with antenna booster and extension cable.

For connection to KESSEL Comfort control units, allows relaying of full text messages to up to three mobile phones.

Includes internal antenna (without SIM card) and antenna booster (with magnetic base and 2500 mm-long extension cable) to improve the reception.

Warning beacon.

For the additional visual display of faults, for installation on the outdoor control cabinet, with switching unit for connection to the control unit.

Air compressor.

For use in combination with lifting station and pumping stations with pressure control: prevents soiling, avoids the formation of condensate in the pressure hose, makes operation of systems possible with pressure hose lengths >10 m.

Includes: T-piece connection, 20 m pressure hose.

Air compressor with pressure hose extension.

For use in combination with lifting station and pumping stations with pressure control: prevents soiling, avoids the formation of condensate in the pressure hose, makes operation of systems possible with pressure hose lengths >10 m.

Includes: T-piece connection, 20 m pressure hose plus extension (specify required length).

Kiosk for control unit, heating, warning beacon.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 460 mm.

Depth: 320 mm.

Kiosk for heating and pressure pipe.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 590 mm.

Depth: 320 mm.

Kiosk for control unit, modem, heating, warning beacon.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 785 mm.

Depth: 320 mm.

Kiosk for control unit, modem, heating, warning beacon and pressure pipe.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 1115 mm.

Depth: 320 mm.

Upper part

To be specified separately; included here for cross-reference only.

KESSEL System Chamber 1000Ø - 600Ø Opening,

KESSEL System Chamber 1000Ø - 800Ø Opening (waterproof concrete),

KESSEL System Chamber 1000Ø - 800Ø Opening,

Voltage

240 V.
