KESSEL Ecolift XL Backwater Pumping Station 4 L/s to 20 L/s - Complete Unit (Minimum Installation Height)
Compare variants

KESSEL Ecolift XL Backwater Pumping Station 4 L/s to 20 L/s - Complete Unit (Minimum Installation Height)

Single auto flap, Duo pump 1400-S1

IPS Flow Systems Variant:

Base and upper section system for Ecolift XL hybrid lifting station where minimum installation height applies. With motor-driven flaps for wastewater with or without sewage.

Jump to:
+44 (0)191 521 3111 www.ipsflowsystems.com

Application

Hybrid lifting station, for dry installation in a concrete slab or

outdoor underground, where a minimum installation depth applies.

Suitable for use with wastewater with or without sewage, depending on model specified.


Note: The pressure pipe must be connected to a welded

polyethylene (PE) pipe; see manufacturer's literature for product-specific details.

Description

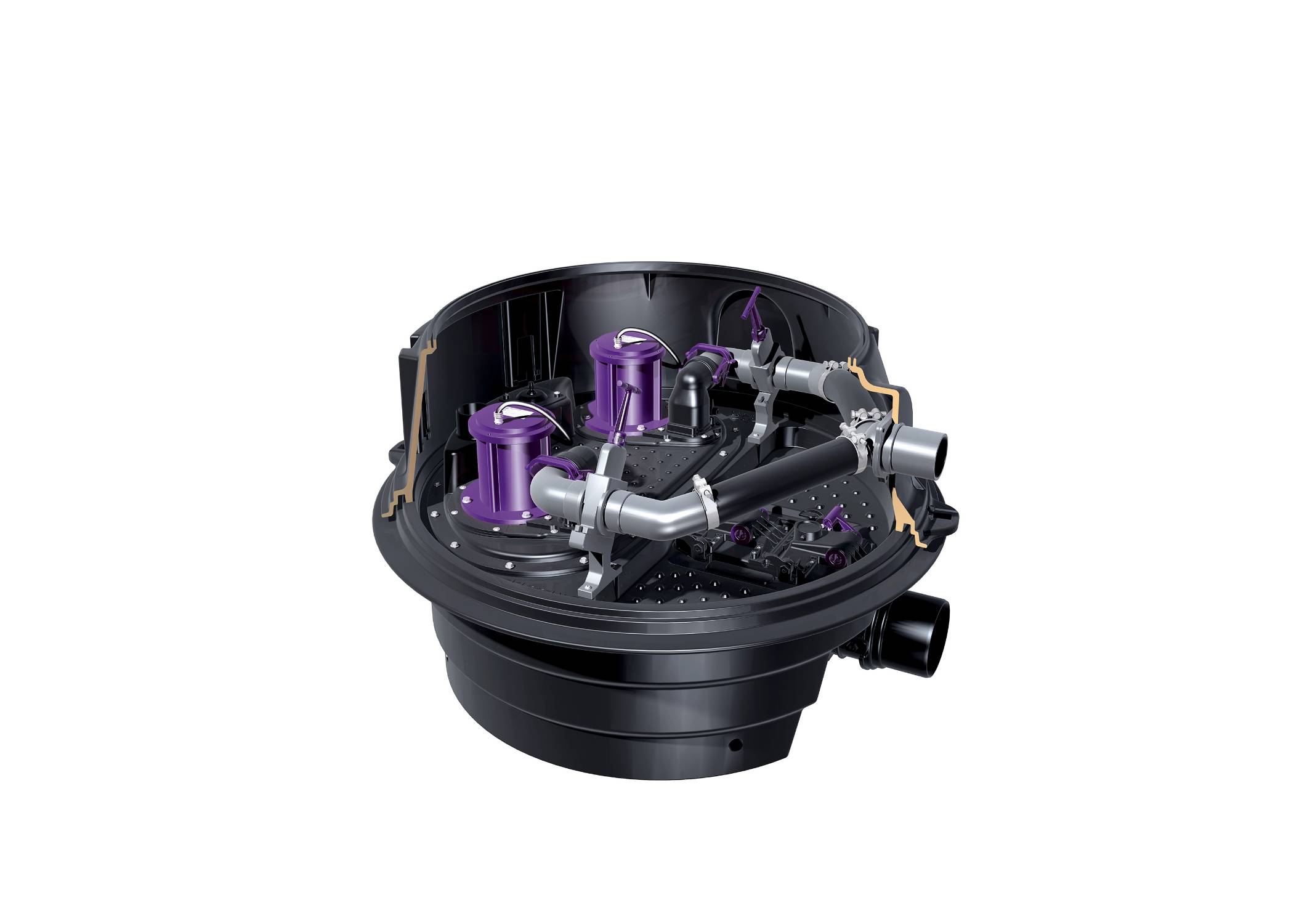

Base and upper section system for Ecolift XL hybrid lifting station where minimum installation height applies

For a free-standing set-up or installation into the ground, specify the base and corresponding chamber (both specified separately).


Features and benefits:

  • With motor-driven flaps for wastewater with or without sewage.
  • All models are Duo (two S1 pumps), and can be specified with one or both flaps motor-driven (both allows the system to be used with sewage).
  • Base unit houses pump/flap configuration specified, and the unit is completed with one of a range of upper sections.
  • Inlet/ outlet: 160 mm diameter.
  • Includes Comfort Plus control unit.
  • 230 V or 400 V / 50 Hz (230 V version ready to plug in).
  • Handles groundwater depths up to 3000 mm.

General information

Color

Black

Material

Polyethylene (PE)

Base.

Polymer

Upper section.

Stanless steel

Upper section.

Uniclass

Pr_65_54_24_04 Anti-flood valvesPrimary

CAWS

R12/355 Antiflood valves

Specification data - Anti-flood valves Enhanced data

Standard

To BS EN 13564-1.

Classification

Manufacturer's standard.

Form

Single auto flap, Duo pump.

874 10 64


Amperage: 7.3 A.

Input power: 1.6 kW.

Power: 1.1 kW.

Pumping capacity: 28 m³/h.

Backwater height: 7500 mm.

Material

Polyethylene (PE); Polymer/ stainless steel.

Polyethylene base; Polymer/ stainless steel upper section.

Consult manufacturer for details.

Connections

Inlet/ outlet diameter: 160 mm.

Integral accessories

None.

Cable piping gasket set.

For use with 230 V control units only.

Includes pipe sealing gasket, PVC collar plug, twin flange (1100 mm diameter), HT collar plug, cable connections and retaining clip with screws.

Cable extension for flap motor, 10 m.

Allows extension up to 20 or 30 m.

Quantity required dependent on model specified; consult manufacturer's literature or specify extension distance required.

Cable extension for probe(s), 10 m.

Allows extension up to 20 or 30 m.

Quantity required dependent on model specified; consult manufacturer's literature or specify extension distance required.

Cable extension for pump SPF 1400-S1, 10 m.

Allows extension up to 20 or 30 m.

Quantity required dependent on model specified; consult manufacturer's literature or specify extension distance required.

TeleControl telemetric system.

For connection to KESSEL Comfort control units, allows relaying of full text messages to up to three mobile phones.

Includes internal antenna (without SIM card).

TeleControl telemetric system with antenna booster.

For connection to KESSEL Comfort control units, allows relaying of full text messages to up to three mobile phones.

Includes internal antenna (without SIM card) and antenna booster (with magnetic base) to improve the reception.

TeleControl telemetric system with antenna booster and extension cable.

For connection to KESSEL Comfort control units, allows relaying of full text messages to up to three mobile phones.

Includes internal antenna (without SIM card) and antenna booster (with magnetic base and 2500 mm-long extension cable) to improve the reception.

Warning beacon.

For the additional visual display of faults, for installation on the outdoor control cabinet, with switching unit for connection to the control unit.

Air compressor.

For use in combination with lifting station and pumping stations with pressure control: prevents soiling, avoids the formation of condensate in the pressure hose, makes operation of systems possible with pressure hose lengths >10 m.

Includes: T-piece connection, 20 m pressure hose.

Air compressor with pressure hose extension.

For use in combination with lifting station and pumping stations with pressure control: prevents soiling, avoids the formation of condensate in the pressure hose, makes operation of systems possible with pressure hose lengths >10 m.

Includes: T-piece connection, 20 m pressure hose plus extension (specify required length).

Kiosk for control unit, heating, warning beacon.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 460 mm.

Depth: 320 mm.

Kiosk for heating and pressure pipe.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 590 mm.

Depth: 320 mm.

Kiosk for control unit, modem, heating, warning beacon.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 785 mm.

Depth: 320 mm.

Kiosk for control unit, modem, heating, warning beacon and pressure pipe.

For installation of listed components outside of buildings.

Height over ground level: 870 mm.

Height overall: 1740 mm.

Width: 1115 mm.

Depth: 320 mm.

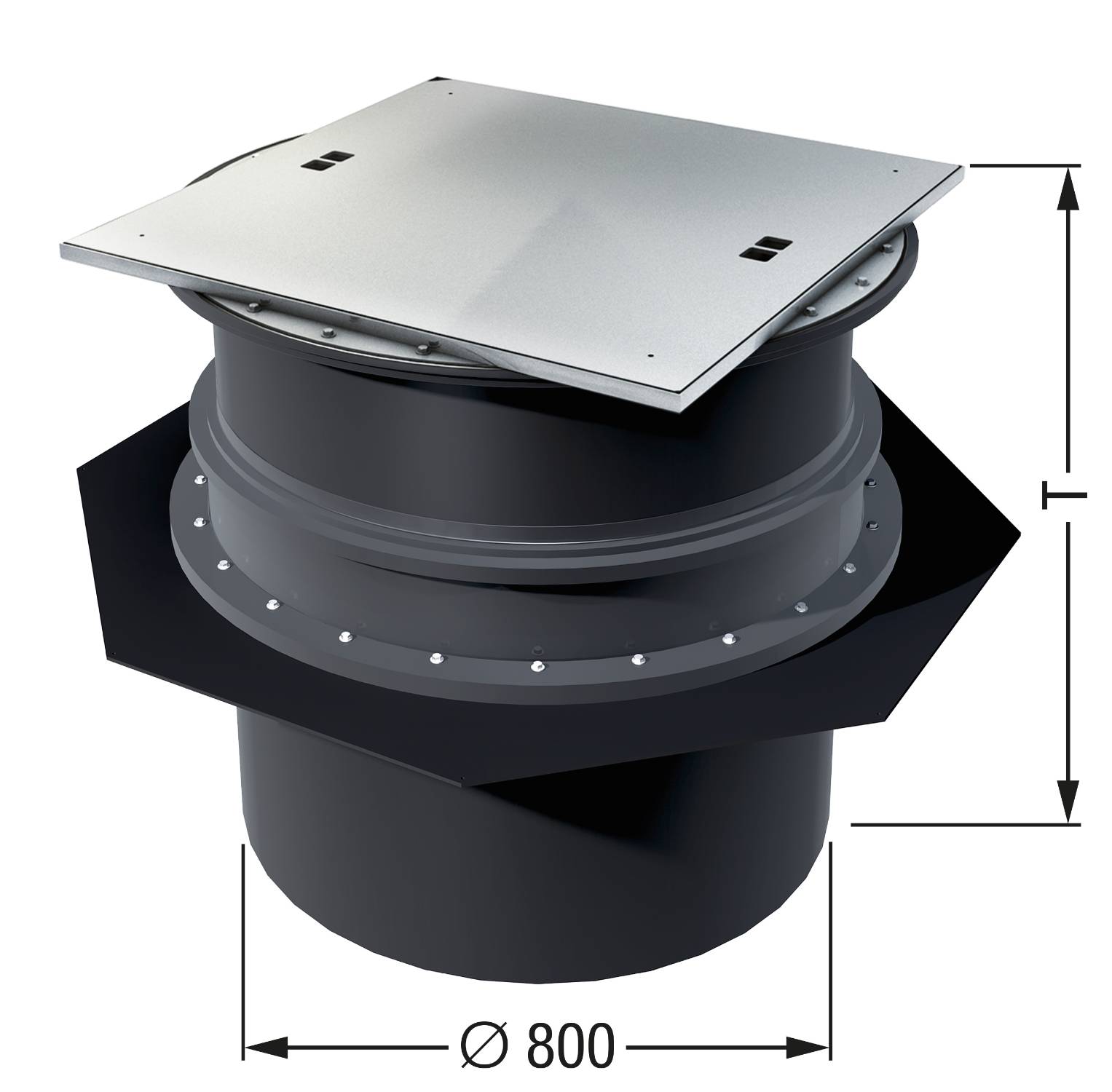

Upper part

800 mm diameter connection to base.


Installation depth equals depth of wastewater pipe according to plan, minus 522 mm (height of engineering systems base from base of inlet to top).

Square, tileable, without waterproof flange, Class A/L 15.

Installation depth: 65–314 mm.

Square, tileable, with waterproof flange, Class A/L 15.

Installation depth: 282–531 mm.

Square, non-tileable, anti-slip, without waterproof flange, Class A/L 15.

Installation depth: 50–299 mm.

Square, non-tileable, anti-slip, with waterproof flange, Class A/L 15.

Installation depth: 267–516 mm.

Square, non-tileable, anti-slip, without waterproof flange, Class B125.

Installation depth: 274–523 mm.

Show more

Voltage

240 V.

Literature

E5. KESSEL Hybrid Drainage Systems
