KESSEL Disposal Connection, Chamber - Grease separation system accessory

Verified by manufacturer 9 months ago

IPS Flow Systems

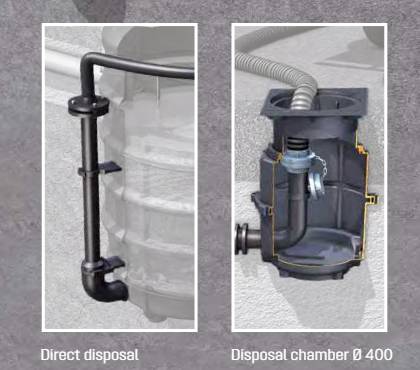

Direct disposal connection, including disposal chamber.

Jump to:
+44 (0)191 521 3111 Website

Application

For underground installation. Installed in the ground with direct disposal connection.

Description

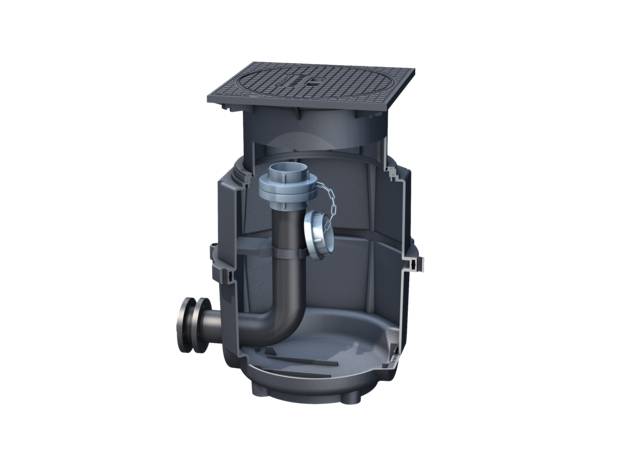

400 mm diameter disposal chamber with right and left sided disposal connections.


Features and benefits:

  • Installation depth: 630 – 980 mm.
  • Ø 65 mm flange connection included.
  • PN 10 (welded collar and loose flange) included for suction pipe on site.
  • Storz-B coupling R 2 1/2“ included for disposal vehicle, for nominal sizes NS 1 – NS 35.
  • Cover classes A/B/D available.
  • Odour-sealed.

General information

Color

Black

Uniclass

Pr_65_52_01_64 Plastics access chambersPrimary

CAWS

R12/401 Inspection chambers – plastics

R12/64 Inspection chambers – plastics

Specification data - Plastics access chambers

Standard

To EN 1825.

Product Reference

KESSEL Disposal Connection, Chamber - Right

KESSEL Disposal Connection, Chamber - Left
