Kenton Bollard
Description

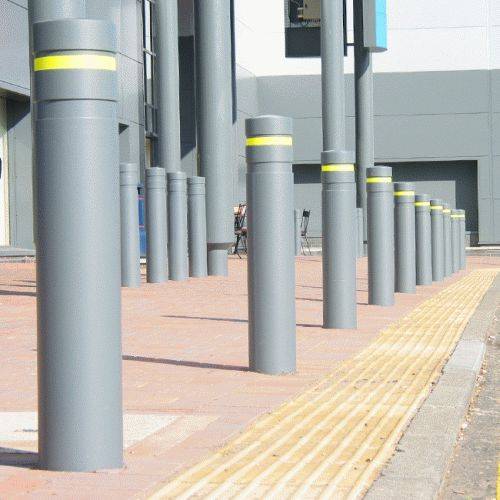

The Kenton steel bollard has a circular profile and features a domed top to prevent rainwater accumulating. The Kenton can be supplied with either a single or double inset neck detail, which is suitable for the addition of reflective tape. Kenton bollards are available in heights of either 900 or 1000 mm as standard. The latter 1000 mm is the minimum recommended height for distinction by the visually impaired and assist with the requirements of the DDA and BS 8300. The bollards can also be supplied base plated or removable, and are used extensively at retail parks.

General information

Finish

[Finish, A wide range of RAL and BS 4800 colours are available, consult manufacturer and insert requirements]

-

Uniclass 2015

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/190 Bollards

Q50/30 Street furniture

Specification data - Carbon steel bollards

Product Reference

KEN 111

Single neck bollard, 115 mm diameter.

KEN 112

Single neck bollard, 140 mm diameter.

KEN 113

Single neck bollard, 170 mm diameter.

KEN 114

Single neck bollard, 195 mm diameter.

KEN 121

Double neck bollard, 115 mm diameter.

KEN 122

Double neck bollard, 140 mm diameter.

KEN 123

Double neck bollard, 170 mm diameter.

KEN 124

Double neck bollard, 195 mm diameter.

Material/ Finish

Stainless steel, grade 1.4301 (304), bright polished

Stainless steel, grade 1.4301 (304), satin polished

Stainless steel, grade 1.4401 (316), bright polished

Stainless steel, grade 1.4401 (316), satin polished

Steel, galvanized finish

Standard.

Steel, polyester powder coated finish

Finished to any RAL colour, insert requirement.

Type

Security bollard

Reinforced with steel core.

Standard bollard

Fixing

Base plated

Not available for security bollards.

Removable

Not available for security bollards.

Root fixed

Standard.

Socket

Not required

For base plated or root fixed bollards.

FI75

Small composite socket for 75 mm diameter bollards.

FI115

Large composite socket for 115 mm diameter.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

Height

900 mm

1000 mm

DDA compliant.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Standard product features

Technical characteristics:

- KEN 111 and 121:

  • Above ground: 900 mm.
  • Below ground: 300 mm.
  • Diameter: 115 mm.
  • Weight: 14 kg.

- KEN 112 and 122:

  • Above ground: 900 mm.
  • Below ground: 300 mm.
  • Diameter: 140 mm.
  • Weight: 24 kg.

- KEN 113 and 123:

  • Above ground: 900 mm.
  • Below ground: 300 mm.
  • Diameter: 170 mm.
  • Weight: 28 kg.

- KEN 114 and 124:

  • Above ground: 900 mm.
  • Below ground: 300 mm.
  • Diameter: 195 mm.
  • Weight: 36 kg.

Product Options

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.

Finish:

A wide range of RAL and BS 4800 colours are available, consult manufacturer and insert requirements.
