FTS-E01
FTS-E01

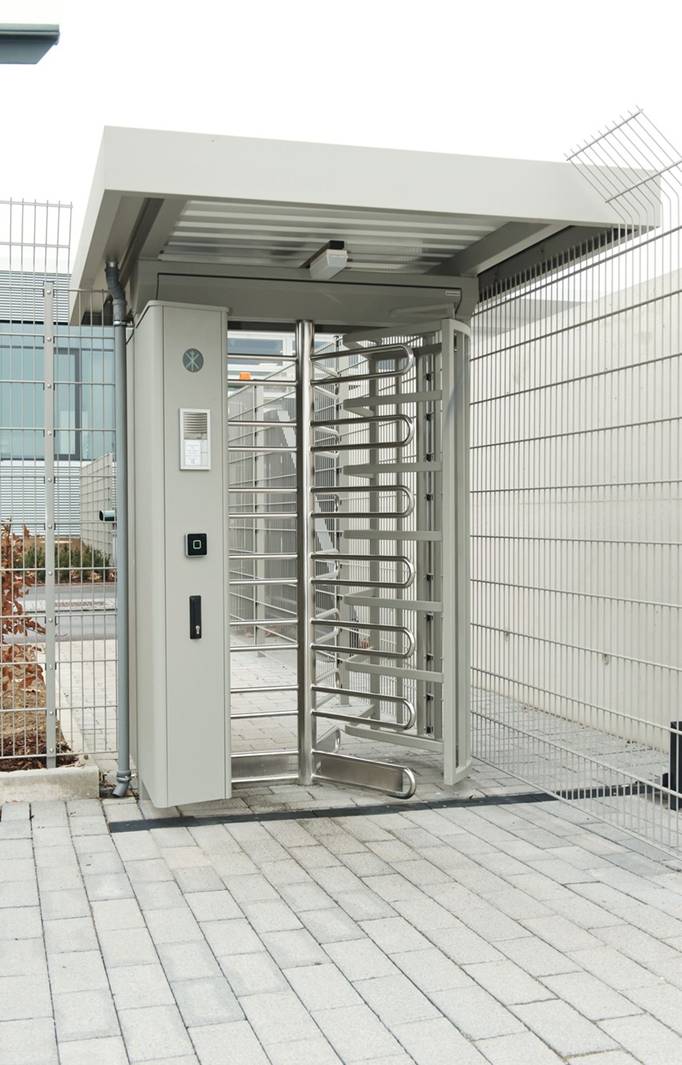

Full height turnstiles.
Application
- Administrative buildings, public authorities and industrial premises.
- Sports and leisure facilities.
- All external building and fence line applications.
Description
Sturdy turnstiles especially suitable for reliably securing outdoor areas. When used in conjunction with card readers, they can reliably control access without the need for monitoring by personnel.
Features and benefits:
- Large range of models and variants available.
- Reliable personal safety with end point locking.
- Versions with patented integrated bike interlock, emergency exit function and enhanced resistance class RC.
- Modular combination of crossbars, roofs and guiding elements.
- Turnstile columns and crossbars in a range of carbon steel and stainless steel versions.
- Low energy drive and automatic adjustment of speed of rotation to match that of the person entering.
- Minimal power consumption.
- Adjustable access can be freely set in the event of power failure.
- Can be used under the most varied environmental conditions.
- Rotating unit: 89 mm-diameter stainless steel AISI 304 tubular column.
General information
Color | Silver White Guidance for specification option: Aluminium elements: RAL 9006 (white). |
Finish | Galvanized Guidance for specification option: Steel elements. Powder-coated Guidance for specification option: Steel elements: Optional polyester powder coated, RAL. |
Material | Steel Stainless steel Aluminium |
Length | 1000 mm 1370 mm 1540 mm 1940 mm 2340 mm |
Width | 1305 mm 1152 mm 1173 mm 1321 mm |
Uniclass | |
CAWS | Q50/160 Turnstile |
Product range |
Specification data - Carbon steel full-height turnstiles
Rotation | As 'Operation'. |
Control unit | Integrated into the unit. |
Leaves and surrounds | Carbon steel portal and housing. |
Finish as delivered | |
Applied finish | Manufacturer's standard.Guidance for specification option:
Polyester powder-coated, RAL.Guidance for specification option: Insert colour requirements. |
Operation | Type 2 servo assist drive both directions. Guidance for specification option: Power assisted motion; servo-positioning drive/ two directions electrically controlled. |
Roof | Not required. D1. Guidance for specification option: Trapezoidal cover plate. D2. Guidance for specification option: Trapezoidal cover plate, roof edge profile and water drainage. D3. Guidance for specification option: Trapezoidal cover plate, roof edge profile, panelling and water drainage. |
Fixing | Finished floor level (FFL). Sleeve foundation. Structural floor level (SFL). |
Accessories | Guidance for specification option: Consult manufacturer's literature for information and insert requirements, or omit. |
Total height | 2270 mm. Manufacturer guidance(Without roof) |
Passage height | 2060 mm. |
Passage width | 560 mm. |
Barrier elements | 11 crossbars (straight), 42 mm diameter. Guidance for specification option: 11 straight horizontal crossbars constructed from 42 mm diameter steel. |
Rotors | 180° rotors with 11 straight crossbars. Guidance for specification option: Constructed from 40 mm diameter stainless steel AISI 304 with black plastic covering caps. |
Power supply | 110–230 V a.c., 50/ 60 Hz. |
Power consumption | 20 VA. Guidance for specification option: Standby power consumption. |
Ingress protection (IP) rating | Housing: IP 33. |
Capacity | 20 people per minute. Guidance for specification option: In one direction. |
Dimensions | 1370 x 1305 mm. Manufacturer guidancel x w. |
Enclosure | Vertical steel bars. Manufacturer guidance(Entry/ exit) |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel Stainless steel Aluminium |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Kentaur Full-height turnstiles and full-height gates
