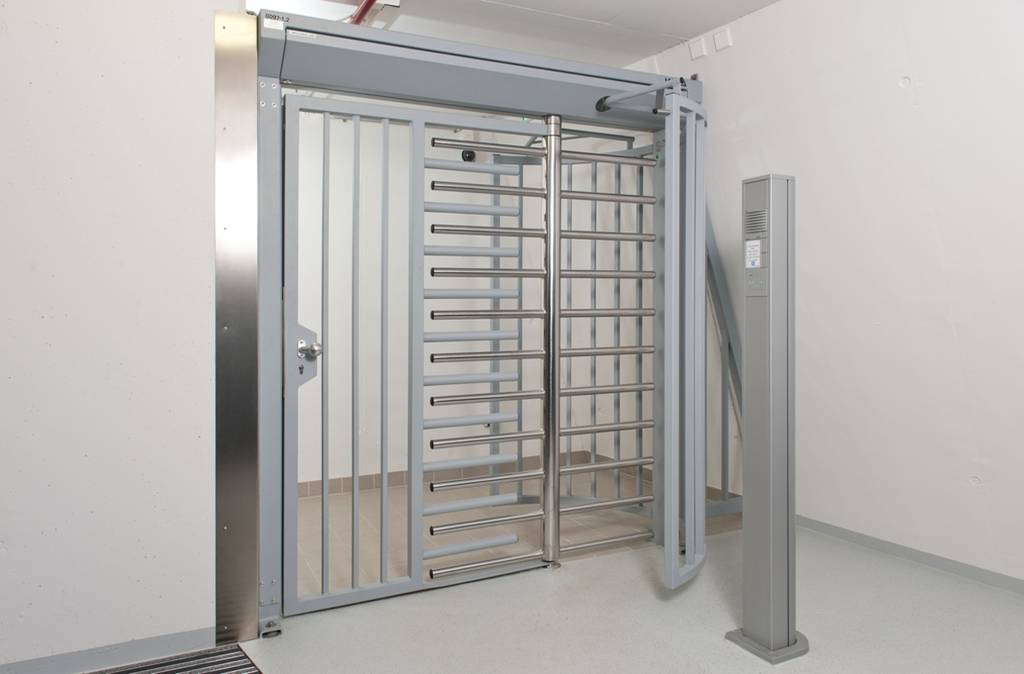

Kentaur Full-Height Gate - Outdoor Barrier-free Access
Verified by manufacturer 1 month ago
Full-height gate for the passage of persons and material handling.
Application
Predominantly used outdoors for barrier-free access, often in conjunction with a matching design of turnstile.
- Administrative buildings, public authorities and industrial premises.
- Sports and leisure facilities.
- External pass gate to go alongside Kaba full height turnstiles.
Description
Full-height gate for the passage of persons and material handling.
Features and benefits:
- Reliable personal safety with end point locking.
- Modular combination of crossbars, roofs and guiding elements.
- Minimal power consumption.
- Adjustable access can be freely set in the event of power failure.
- Can be used under the most varied environmental conditions.
- Compatible with Kentaur turnstiles (specified separately).
General information
Color | Silver Other Guidance for specification option: Powder-coated. |
Finish | Galvanized Powder-coated |
Material | Steel Stainless steel Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | 1080 mm Guidance for specification option: Passage width. |
Height | 2060 mm Guidance for specification option: Passage height. Total height: 2270 mm (without roof). |
Uniclass | |
CAWS | Q50/20 Gate Q50/130 Gate |
Product range |
Specification data - Stainless steel gates
Dimensions | |
Span | 1080 mm.Guidance for specification option: Passage width. |
Height | 2060 mm.Guidance for specification option:
|
Gate leaves | Stainless steel crossbars and plate.Guidance for specification option: 11 straight 40 mm diameter crossbars and vertical reinforcement plate, constructed from stainless steel AISI 304. Optional vertical barr gate leaf. |
Hardware | |
Hinges | Single hinge.Guidance for specification option: Consult manufacturer for details. |
Securing | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Operating | Type 2 power assisted motion; servo-positioning drive/ two directions electrically controlled. |
Finishes | Manufacturers standard.Guidance for specification option:
Polyester powder-coated. |
Roof | Not required. D1. Guidance for specification option: Trapezoidal cover plate. D2. Guidance for specification option: Trapezoidal cover plate, roof edge profile and water drainage. D3. Guidance for specification option: Trapezoidal cover plate, roof edge profile, panelling and water drainage. |
Fixing | Finished floor level (FFL). Sleeve foundation. Structural floor level (SFL). |
Accessories | Guidance for specification option: Insert requirements, consult manufacturer's literature for information. |
Power supply | 110–230 V a.c., 50/ 60 Hz. |
Total height | 2270 mm. |
Sustainability data
Material | Steel Stainless steel Aluminium |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Kentaur Full-height turnstiles and full-height gates
