Kent Top Slot

Description

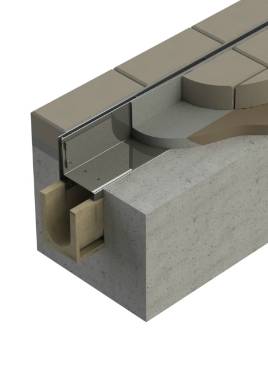

Kent Top Slot (KTS 125/125/100-10) is a highly effective yet discreet drainage solution for public realm landscapes. Kent Top Slot is designed for use with existing polymer or concrete channels.

Kent Top Slot is manufactured in 1000 mm lengths for stock which can easily be joined together on site using throat and collar connectors. Lengths can also be cut back on site to match exact lengths required on site.

Kent Top Slot comes as standard with 100 mm high throat with 10 mm internal width which are flared outwards to allow debris to push downwards which minimizes blockages. all throats are made from 2 mm steel.

Features and benefits:

  • B125 loading as standard- C250 & D400 versions also available.
  • Flexible modular system - easy to handle and to cut back on site.
  • Available in either Grade 304 or Grade 316.
  • 100 mm Throat height, 10 mm internal slot.
  • 125 mm or 175 mm widths available.
  • Visible or Hidden options available.

General information

Features

Flexible modular system that is easy to handle and cut back on site, multiple options available

Material

Stainless steel

Shape

Rectangle

Size

55 x 1000 x 125 mm

55 x 1000 x 175 mm

125 x 1000 x 125 mm

125 x 1000 x 175 mm

Uniclass 2015

Pr_65_52_24_28 Floor channelsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit

Revit 2017

1

2.1
Download now from NBS National BIM Library
