Description

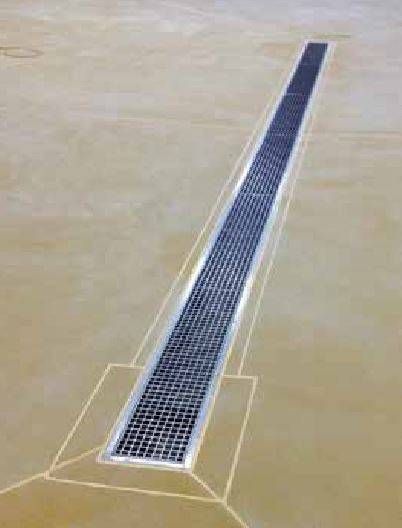

Kent Industrial Plain Mesh Grating is normally used to suit the KSBC range of drainage channels or KAF Angle Frame range and most Kent Industrial Gullies. It is available ex stock normally in 150mm and 200mm widths, each 25mm deep with 2mm load bars. In areas which require a heaver duty grating, it is regularly ordered as 25mm deep with 3mm load bars or sometimes it can be ordered as 30mm or 40mm deep with 3mm load bars. A spacing of 20mm between bars gives this a large free area. It is therefore ideal for factories with pedestrian or medium duty traffic, with frequent, high intensity washdown. Lockdown version is optional. This type of grating is very regularly specified for Meat, Dairy, Beverage and Pharmaceutical factories.

General information
Features

Sizes can be fabricated

Finish

Electropolished

Material

Stainless steel

Shape

Rectangle

Size

varies

Uniclass 2015 Expanded metal mesh (Pr_25_57_56_27)
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
