Application

This channel is particularly suitable for pedestrian areas including balconies or door thresholds.

Description

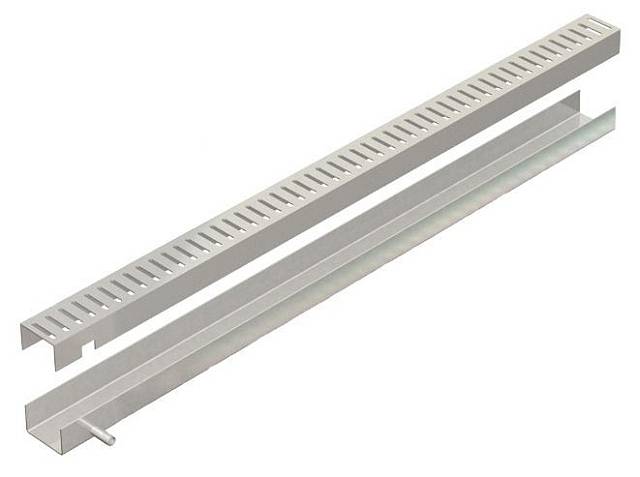

Economy drainage channel, suitable for light duty areas where there is a low flow rate of water. The channel is narrow and shallow, and is suitable where an unobtrusive channel is required.

Manufactured from stainless steel and is available in grade 1.4301 (304) and 1.4404 (316L). The channel is supplied with fully welded end plates, joining brackets and a slotted grating as standard.

Features and benefits:

  • Manufactured from grade 1.4301 (304) or 1.4401 (316) stainless steel to BS EN 10088.
  • A constant depth of 40 mm.
  • Easy installation.
  • Prefabricated 90° corners and 'T' sections are also available.
  • CE marked.

Applications:

This channel is particularly suitable for pedestrian areas including balconies or door thresholds.

General information
Material

Galvanized carbon steel

Grade 1.4301 (304) stainless steel

Grade 1.4404 (316L) stainless steel

Finish

Powder-coated

Satin 320 grit

Satin finish

Features

Short lead time, easy installation, low cost, multiple application, removable locked down grating

Shape

Rectangle

Size

40 x 1000 x 65 mm

Uniclass 2015 Floor channels (Pr_65_52_24_28)
Specification data
Product Reference

KEC65 Economy Channel

Length

1000 mm

Standard.

Bespoke

Consult manufacturer and insert requirements.

Material

Galvanized carbon steel

Grade 1.4301 (304) stainless steel

Grade 1.4404 (316L) stainless steel

Finish

Powder-coated

Satin 320 grit

Satin finish

Grating

Angle slot grating

Interceptor slot grating

Slotted grating

Standard.

Loading

FACTA A

Slow moving wheel load: 0.6 tonnes. Kent safety test (unfilled): 0.8 tonnes.

FACTA AA

Slow moving wheel load: 1.5 tonnes. Kent safety test (unfilled): 3.1 tonnes.

FACTA AAA

Slow moving wheel load: 2.5 tonnes. Kent safety test (unfilled): 5.2 tonnes.

FACTA B

Slow moving wheel load: 5 tonnes. Kent safety test (unfilled): 10.1 tonnes.

FACTA C

Slow moving wheel load: 6.5 tonnes. Kent safety test (unfilled): 13.2 tonnes.

FACTA D

Slow moving wheel load: 11 tonnes. Kent safety test (unfilled): 22 tonnes.

Accessories

None

Prefabricated 90° corner

'T' section

Trapped

Untrapped

Standard product features

Size (h x w x outlet)

40 x 65 mm x ½” BSP.

Product Options

Grating:

Consult technical literature for details.
