KemTrack Brick Slip Tracker Panel - Brick Slip Facade Carrier Board
Verified by manufacturer 1 day ago
An A1 non-combustible fire-rated fibre cement facade board for brick slip systems with high sound, thermal and moisture resisting properties.
Application
- Offsite and modular construction.
- Residential and social housing.
- Commercial and public buildings.
- Retail and leisure.
Description

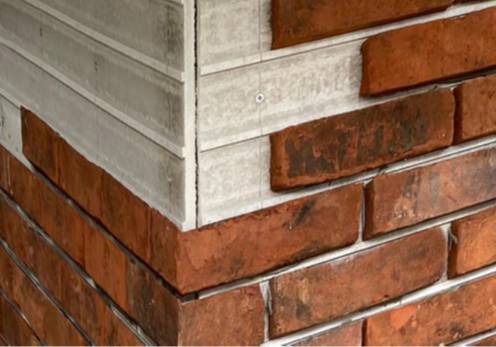

Kemwell KemTrack Brick Slip Tracker Panel board is an A1 fire-rated, non-combustible backer board for brick slip cladding systems. The panels combine moisture and fire resistance properties with high impact strength and sound insulation, and are suitable for internal and external use.
Features and benefits:
- A1 non-combustible fire rated to EN 13501-1.
- Highly adaptable and saves installation time.
- Channels are pre-routed into the board surface.
- Sound absorption characteristics reduce sound transmission.
- A lightweight but strong board.
- Provides resistance to the harmful effects of moisture and water.
- Quick and easy to install.
- KemTrack can be installed on both steel frame and timber frame structures, as well as traditional buildings.
General information
Color | Grey |
Finish | Smooth |
Material | Fibre cement Calcium silicate |
Shape | Rectangle Square Manufacturer guidanceThe manufacturer's on site fabrication facilities may be able to cut bespoke measurements; please contact the manufacturer directly. |
Length | 2400 mm 1200 mm Bespoke |
Width | 1200 mm 600 mm Bespoke |
Height | 12 mm Manufacturer guidanceThe thickest section of the boards is 12 mm; however, this is recessed in areas to allow for the slips to fit and be bedded in safely. |
Uniclass | |
CAWS | H20/10 Sheet cladding H20/155 Sheet cladding (attached to timber battens) H20/150 Sheet cladding (attached to metal support systems) M40/27 Intermediate substrate M40/470 Intermediate substrate |
Specification data - Fibre-reinforced cement boards
Classification data | |
Fire rating | To BS EN 13501-1, Class A1. |
Sheet size | |
Nominal thickness | 12 mm. |
Length | 2400 mm. 1200 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. |
Width | 600 mm. 1200 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. |
Edges | Square. |
Finish as delivered | Uncoated. |
Colour | Grey. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Fibre cement Calcium silicate |
Expected Life | 30 year |
Literature

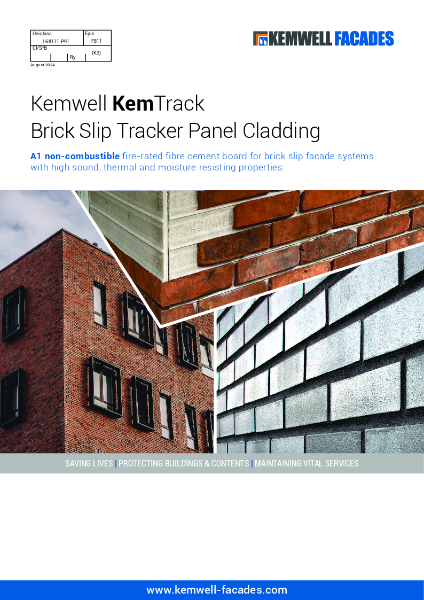

Kemwell Facades KemTrack Brochure
