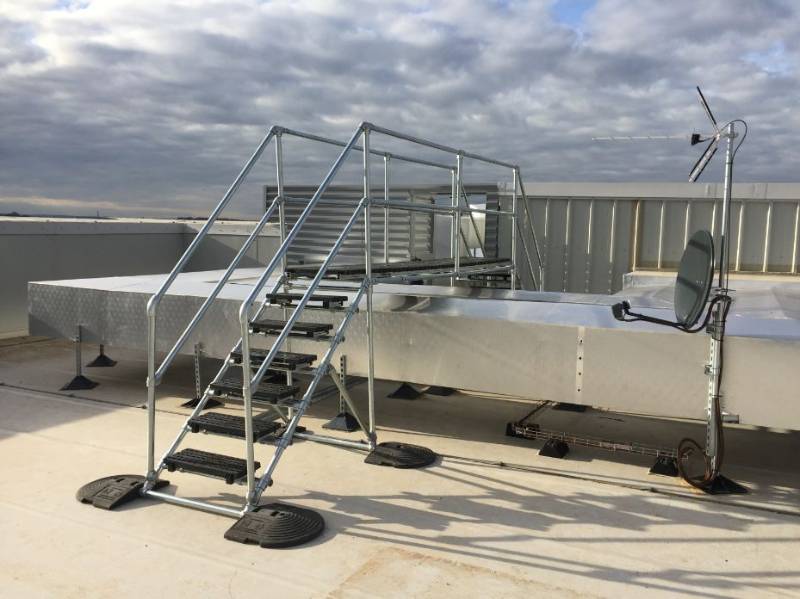

Kee Step® - Safety Stepover Range
Verified by manufacturer 24 days ago
Stepover, freestanding
Stepover, freestanding
Certificate of Conformity
Certificate type
CE Marking
Certificate type
DoP
Certificate type
Complete range of safety stepovers designed specifically to provide permanent safe access for areas on roofs or in warehouses where regular access for maintenance and inspection is required.
Application
Provision of permanent safe access for areas on roofs or in warehouses where regular access for maintenance and inspection is required.
Description
Complete range of safety stepovers designed specifically to provide permanent safe access for areas on roofs or in warehouses where regular access for maintenance and inspection is required.
Designed to provide a safe means of access up and over obstructions present in a designated walkway as part of a safe roof access system or as a standalone item used internally when access is required.
Features and benefits:
- Safe passage.
- Standard kit formats and bespoke options.
- Exceeds safety standards.
- Slip resistance.
- Easily configured.
- No welding needed.
- Long lasting.
- Suitable for all roof types (non-penetrating system).
- Can be combined with Kee Walk, or as a standalone item when access or egress is required over an obstruction.
- Fully adjustable and can accommodate height from 600 mm up to 1400 mm.
Kee® Step Mini Step Overs are designed to be compliant with BS EN 516 : 2016 Class 1-C, OSHA 1910.23(e)(1)(iii), OSHA 1910.25(b)(3), OSHA 1910.23(c)(2-4), and OSHA 1910.23(e)(1)(vi)
General information
Color | Silver Guidance for specification option: Metal components. Black Guidance for specification option: Stair treads; weighted feet. |
Finish | Galvanized Anti-slip |
Material | Steel Aluminium Nylon PVC Cast iron |
Shape | Other |
Length | 1071 mm 1321 mm 1571 mm 1826 mm 2076 mm |
Width | 480 mm Guidance for specification option: Fixed or freestanding steps, legs centre-to-centre. 660 mm Guidance for specification option: Freestanding steps, overall width. 840 mm 1695 mm Bespoke Manufacturer guidanceOverall width unless stated otherwise. |
Height | Bespoke 490 mm 275 mm 304 mm 1900 mm Manufacturer guidanceOverall height. |
Uniclass | |
CAWS | L30/20 Stairs L30/270 Stairs L35/150 Stair systems L35/350 Stairs |
Specification data - Industrial stair systems
Classification data | |
Frame | |
Section | Malleable cast iron/ aluminium alloy/ mild steel/ PVC. |
Fixing to superstructure | Not required (freestanding with weighted feet). |
Treads | |
Material | Nylon. |
Applied anti-slip treatment | Slip resistance compliant to BS 4592. |
Landings | |
Material | Nylon. |
Applied anti-slip treatment | Slip resistance compliant to BS 4592. |
Balustrade guarding system | Included. |
Handrail system | Not required. |
Assembly connectors | Manufacturer's standard. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Configuration | To suit 600 x 1000 x 600 mm obstacle. Guidance for specification option: STMB600. Weight: 363.22 kg. Length x width x height: 3670 x 1695 x 1900 mm. To suit 800 x 1000 x 800 mm obstacle. Guidance for specification option: STMB800. Weight: 395.8 kg. Length x width x height: 4090 x 1695 x 2100 mm. To suit 1000 x 1000 x 1000 mm obstacle. Guidance for specification option: STMB1000. Weight: 427.88 kg. Length x width x height: 4510 x 1695 x 2300 mm. To suit 1200 x 1000 x 1200 mm obstacle. Guidance for specification option: STMB1200. Weight: 460.42 kg. Length x width x height: 4930 x 1695 x 2500 mm. To suit 1400 x 1000 x 1400 mm obstacle. Guidance for specification option: STMB1400. Weight: 492.45 kg. Length x width x height: 5350 x 1695 x 2700 mm. To suit 1200 x 1200 x 1200 mm obstacle. Guidance for specification option: STMB1212. Weight: 468.16 kg. Length x width x height: 5180 x 1695 x 2500 mm. To suit 1400 x 1400 x 1400 mm obstacle. Guidance for specification option: STMB1414. Weight: 521.5 kg. Length x width x height: 5850 x 1695 x 2700 mm. Bespoke. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Sustainability data
Material | Steel Aluminium Nylon PVC Cast iron |
Product certifications
Literature
Literature type
Kee Step® Mini Step Over Technical Datasheet
Kee Step® Operation and Maintenance Manual
Kee Step® Platforms Datasheet Issue 02
