Kee Gate® - Safety Gates

Name: Kee Gate® - Safety Gates
Brand: Kee Safety Ltd
SKU: aqHnWhUjNTL3H3cockWDcU

Verified by manufacturer 1 day ago

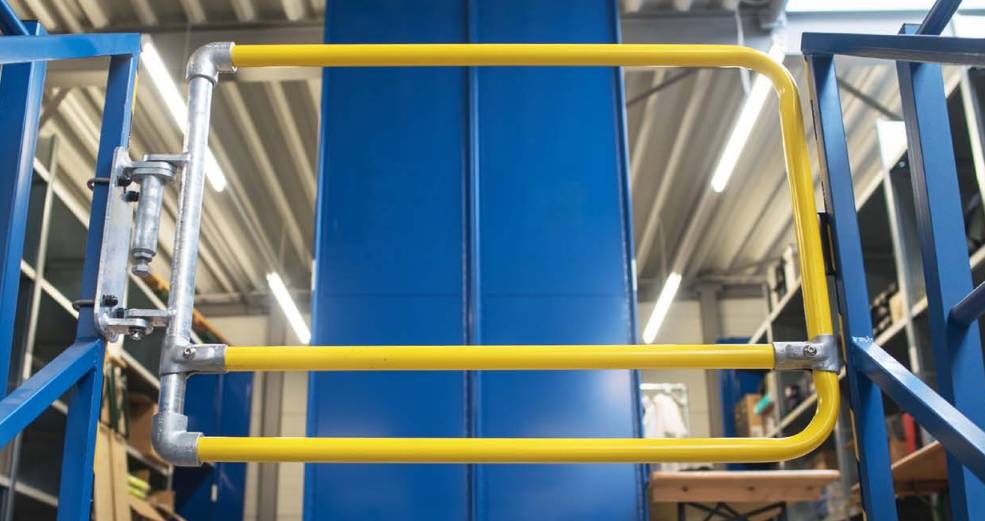

Single gate

Range of safety gates in European and North American formats.

Jump to:

Application

Standard gates and spring-loaded safety gates provide protection to openings such as on work platforms, around industrial machinery, in warehouse and logistic centres.
Double gates work best for larger openings (> 1 m).
Full height self-closing safety gates comply with EN 4211.
Pivot gates (aka pallet gates) provide protection for staff working on mezzanine floors or raised working areas.

Range of safety gates in European and North American formats.

KEE GATE has been designed to be fully adjustable and can accommodate openings up to 1 m for the single gate and 1.8 m for the double gate.

Standard gates and spring-loaded safety gates provide protection to openings such as on work platforms, around industrial machinery, in warehouse and logistic centres.
Double gates work best for larger openings (> 1 m).
Full height self-closing safety gates comply with EN 4211.
Pivot gates (aka pallet gates) provide protection for staff working on mezzanine floors or raised working areas.

Features and benefits:

EN 14122-3 compliant.
Available in galvanized steel and aluminium.
No welded parts so individual fittings can be easily replace if damaged.
Constructed using Kee Klamp® Key Clamp Fittings® Key Clamps and Kee Lite® fittings.
Components are TUV-approved for quality assurance.
Extensive testing for guaranteed durability.
Supplied part assembled for ease of on-site installation.

Color	Silver Yellow
Finish	Powder-coated Galvanized
Material	Steel Cast iron Rubber Aluminium
Shape	Rectangle Other
Length	1000 mm Guidance for specification option: Supplied length: 1120 mm. 2060 mm Bespoke 1485 mm 1360 mm 2007 mm 1524 mm Show more
Width	90 mm 1515 mm 1487 mm 1545 mm 1981 mm
Height	534 mm 668 mm 1065 mm 1654 mm Guidance for specification option: Pivot gate access height (Type D). 1785 mm Guidance for specification option: Pivot gate access height (Type A). 1960 mm Guidance for specification option: Pivot gate access height (Type B). 2255 mm Guidance for specification option: Pivot gate access height (Type C). Show more

Uniclass	Ss_25_32_35_37 Hinged gate systemsPrimary
CAWS	Q50/130 Gate Q50/20 Gate Q40/570 Proprietary gates and posts

Classification data
Method of operation	Spring-loaded, self-closing.
Gate assembly	Carbon steel gate, European assembly. Guidance for specification option: Gate height: 668 mm. Weight: 14 kg as supplied. Carbon steel gate, North America assembly. Guidance for specification option: Gate height: 534 mm. Weight: 11.3 kg as supplied. Manufacturer guidance Supplied length: 1120 mm. Can be cut to size. Standard gate length, excluding slam plate: 1000 mm. Fixing plate width: 90 mm. Manufactured from steel to EN 10255. ∅33.7 mm tube; 3.2 mm wall thickness to meet requirements of EN 13374 and EN 14122:2016.
Post foundations	Not applicable.
Finish/ Colour	Galvanized/ silver. Guidance for specification option: European assembly: galvanized to BS EN ISO 1461, natural. North American assembly: galvanized to ASTM A53, natural. Powder-coated, yellow. Guidance for specification option: Powder-coated to EN 13438. European assembly: galvanized to BS EN ISO 1461, natural. North American assembly: galvanized to ASTM A53, natural.
Fixings	Safety gate fixing pack. Guidance for specification option: To match gate assembly specified (European or North American). Other. Guidance for specification option: The Kee Gate can also be fixed to a solid substrate; insert requirements.

Material	Steel Cast iron Rubber Aluminium
