Kee® Cover - Safety Solution for Rooflight Protection

Verified by manufacturer 21 hours ago

2 x 1 m primary module - raised

Kee Safety Ltd Variant:

Mesh panels specifically designed to provide a robust effective solution for covering unprotected roof lights without blocking out the light they are supposed to let into a building.

Jump to:
01384 632188 Website

Application

Roof light protection. Designed specifically for metal profile roofs, where inline roof-level skylights are particularly prevalent.

Description

Mesh panels specifically designed to provide a robust effective solution for covering unprotected roof lights without blocking out the light they are supposed to let into a building.

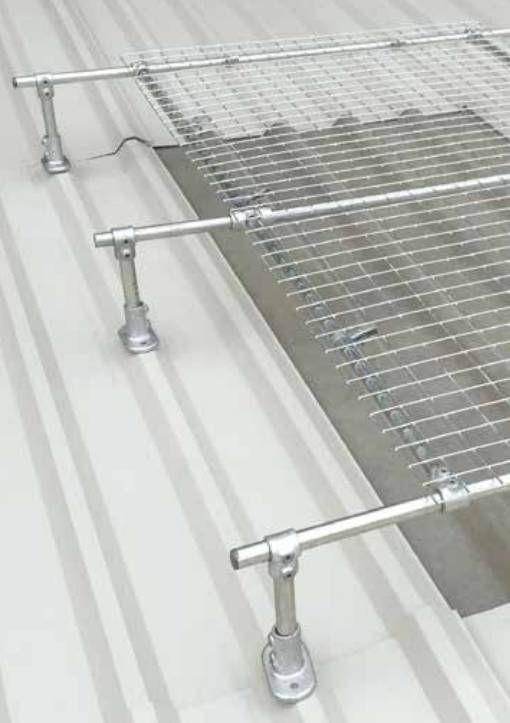

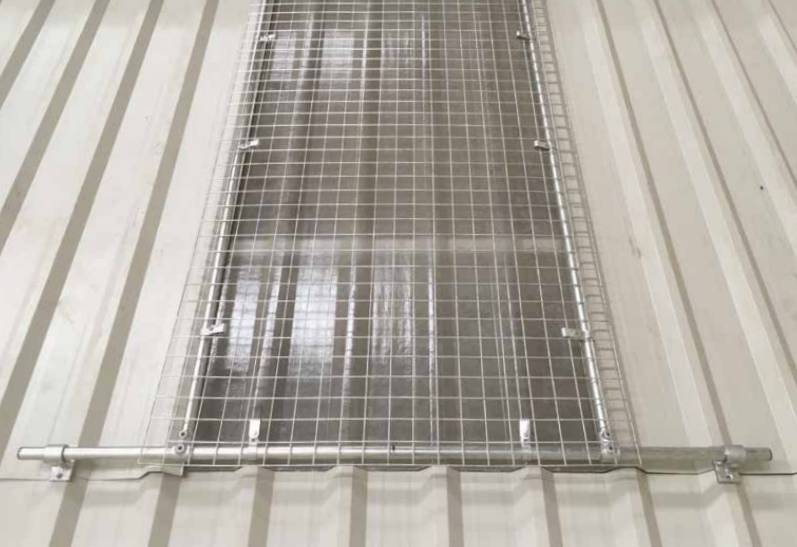

Kee® Cover is a practical solution which ensures roof lights can easily be covered by a strong mesh panel mounted onto a metal frame.

Designed specifically for metal profile roofs where inline roof level sky lights are particularly prevalent. The mesh panel top sits onto a metal frame made from Kee Klamp fittings and size 5 (26.9 mm outer diameter) tube. The standard mesh panels are 2 m long and 1 m wide; extension panels are available which are either 2 or 1 m long x 1 m wide.

Features and benefits:

  • Highly portable component-based system which is easily transported to the rooftop.
  • All components and mesh panels are hot-dip galvanised for enhanced durability.
  • Mesh panels do not block out light, keeping the building illuminated.
  • Extension panels allow for extended width and lengths be covered, ensuring the roof surface is safe.
  • Easily fitted, keeping installation costs down.
  • Metal frame and panels will not go brittle, thus delivering longevity for the installation.
  • Variable height facility allows for use over different-shaped roof lights.
  • The tube can be colour-coated if greater visibility is required.
  • Tested in accordance with the ACR Red Book.
  • Easily assembled and fitted while on the roof.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

2000 mm

1000 mm

Width

1000 mm

2000 mm

Warranty description

One year

Uniclass

Pr_30_59_57_77 Security window screensPrimary

CAWS

H31/221 Fittings and accessories

L10/460 Rooflights

L10/45 Rooflights

SKU Code

KC21PMRA1

Specification data - Security window screens

Classification data

Screen

-

Material

Carbon steel.

Size

2 x 1 m.

Finish

Hot-dip galvanized.

Guidance for specification option:

Standard.

Hot-dip galvanized mesh, colour-coated tube.

Guidance for specification option:

Where greater visibility is required; consult manufacturer for options and insert colour requirements.

Accessories

2 x 1 m extension module - raised (KC21XMRA1).

Guidance for specification option:

Weight: 24 kg.

1 x 1 m extension module - raised (KC11XMRA1).

Guidance for specification option:

Weight: 17 kg.

Manufacturer guidance

Length x width.

Weight

30 kg.

Fixings

Guidance for specification option:

Insert requirements to suit substrate.

Sustainability data

Material

Steel
