KAMOUFLAGE AP - All Purpose, Architectural SCD - Smoke Control Damper
Verified by manufacturer 2 months ago
KAMOUFLAGE AP 1V60 smoke control shutter
KAMOUFLAGE AP 1V60 smoke control shutter
DoP
Certificate type
1366_10 April 2024 - "dw", duct AND wall certified, automatic (AOV) rectangular EIS smoke control damper (SCD) - up to 120 minutes performance.
Application
KAMOUFLAGE AP* - NEW** 1366-10 "dw" Certified - Automatic Smoke Control Damper (AOV) - 60-90-120 minutes for aesthetic, architectural designs.
(*All Purpose)
(**1366-10 April 2024 anticipated)
Automatic (AOV) Rectangular EIS smoke control damper (SCD) - fire resistance up to 120 minutes.
Highest classification: EI 120 (vedw i<->o) S 1000 C10000 AA multi
Can be easily integrated in many smoke control systems thanks to its aesthetic finishing possibilities.
Kamouflage AP Certified installations and sealing methods
- In shaft:
- Rigid: concrete, masonry, builders work.
- Other shaft material per D.o.P.
- Deviations from D.o.P. see additional supporting document.
- For full details: D.o.P. (associated content).
Kamouflage AP Fields of application
- Automatic Opening Vent (AOV).
- Smoke & Heat Exhaust Ventilation Systems (SHEVS)
- Natural and/or mechanical.
- Pressure Differential Systems (PDS).
- Energy saving systems combined with PDS or SHEVS: e.g. night cooling systems.
- Both for air supply and for smoke evacuation
- Combined comfort ventilation and smoke control.
Kamouflage AP Building applications:
- High rise buildings.
- Industrial, commercial & residential buildings.
- Hospitals and care houses.
- Student housing.
- Underground car parks.
- Detention institutes.
- Universities, colleges and schools.
The Kamouflage AP is the ideal smoke control damper to use in buildings where an aesthetic look is a must, as the product comes with many different aesthetical finishes.
Relevant Links:
Description
KAMOUFLAGE AP* - NEW** 1366-10 "dw" Certified - Automatic Smoke Control Damper (AOV) - 60-90-120 minutes for aesthetic, architectural designs.
(*All Purpose)
(**1366-10 April 2024 anticipated)
Automatic (AOV) Rectangular EIS smoke control damper (SCD) - fire resistance up to 120 minutes.
Highest classification: EI 120 (vedw i<->o) S 1000 C10000 AA multi.
Can be easily integrated in many smoke control systems thanks to its aesthetic finishing possibilities.
Kamouflage AP product features:
- CE certified against EN 1366-10 and EN 12101-8.
- UKCA certified (application in process)
- Single blade ("door" like).
- Motorized - drive open & close.
- 24/48 V DC (-10/+15%)
- Manual also possible.
- Remote unlocking and resetting.
- Manual also possible.
- I certified (!).
- Minimal pressure loss.
- Up to 1000 Pa, pressure level 2 (high rise buildings).
- Light weight, maximum 35 kg.
- Optional mounting frame.
- Delivered separately as a kit
- Check for availability with Rf-Technologies sales department
- Optional mounting frame with drop guard grid
- Delivered separately as a kit
- Check for availability with Rf-Technologies sales department
- Optional trailing lead (3 m).
- Optional aesthetical finishing that can be integrated in any interior design.
- paint or cladding.
Kamouflage AP Installer & User benefits:
- "Easy" installation compared to many other:
- No need for special tooling.
- Screws or mortar mounting (only).
- With or without a (pre-) mounting frame.
- Light weight.
- Remains fully functional even below 90° door opening, for use in shallow ducts / shafts.
- Maximum free air passage:
- Ultimately leading to lower system investments and energy consumption.
- Allowing the combination of smoke control and comfort ventilation thanks to C10.000 specification.
- Installation with minimal distances possible.
Kamouflage AP Range: (Width/Height)
- Smallest: 350 x 385 mm.
- Largest: 700 x 1165 mm.
Notes:
- For information about the different types of installation and sealing methods please consult the Kamouflage AP Product application field and or the Declaration of Performance (DoP).
Relevant Links:
General information
Color | White Other Beige Black Blue |
Finish | Natural |
Material | Aluminium |
Shape | Rectangle |
Length | 250 mm Guidance for specification option: Depth. |
Width | 350 mm 400 mm 450 mm 500 mm 550 mm Manufacturer guidanceNominal. |
Height | 385 mm 415 mm 445 mm 475 mm 505 mm Manufacturer guidanceNominal. |
Warranty description | One year |
Uniclass | |
CAWS | U90/445 Dampers, smoke |
Specification data - Smoke dampers
Standard | To EN 12101-8:2011. |
Classification | |
Standard | To EN 13501-4. |
Multi-compartment | |
Integrity class | EI 60. |
Suitability | Ve duct and wall. |
Smoke leakage | S. |
Under pressures | 1000. |
Inside or outside | (i ↔ o). |
Smoke control use | C10000. |
Activation | AA – automatic. |
Actuators | Motorized - drive open & close, 24 V d.c.Guidance for specification option: -10/ +15%. Motorized - drive open & close, 48 V d.c.Guidance for specification option: -10/ +15%. Not required (manual).Guidance for specification option: Key provided. |
Dimensions | Guidance for specification option: Consult manufacturer's literature for performance details and insert requirements:
Overall height = nominal height + 54 mm. Overall width = nominal width + 54 mm. Consult manufacturer unit weights based on requirements (10.1–31.7 kg). |
Accessories | EASY-KAP ME/MP - mounting frame. EASY-KGC ME/MP 1V - mounting frame with hinged drop guard grid. TL - trailing lead 3 m for external connection. FDCU - Limit switch (open/closed). |
Third-party certification | CE marked 1812 Efectis_requested. |
Sustainability data
Material | Aluminium |
Third party certifications
DoP
Kamouflage AP Declaration of Performance (DoP)
Literature

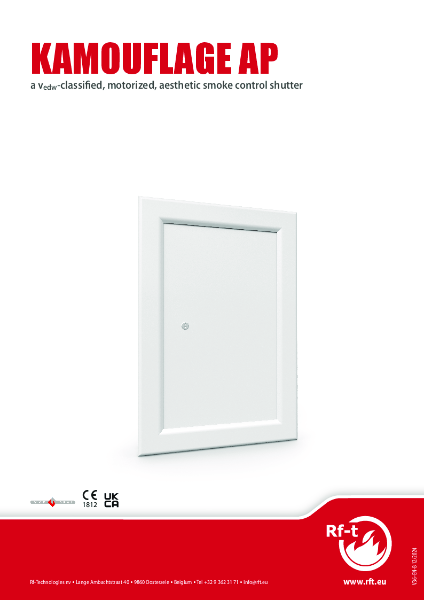

Kamouflage AP Technical Product Documentation
Case studies
Avantage MP - AOV by Smoke Control Dampers Ltd
