Kalwall Translucent Daylighting Skylights

Verified by manufacturer 5 months ago

Geo-Roofs®, 70 mm-thick panels (0.57 W/m²K)

Kalwall Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Kalwall diffused natural daylighting Skylights. Man safe and OSHA fall through compliant.

Jump to:
+44 (0)20 8397 4361 Website

Application

Rooflight applications.

Description

S-lines:

Budget friendly, flat curb-type skylights are available in standard 1′ increments, either 4′ or 5′ W, from 4′ to 20′ L. Units are curb ready, with factory sealed aluminum perimeters, for rapid install.


Pyramids:

Factory pre-engineered in three standard pitches, from 4′ to 20′ W, in even one foot increments. Pyramids are designed for rapid installation from the outside and may be removable.

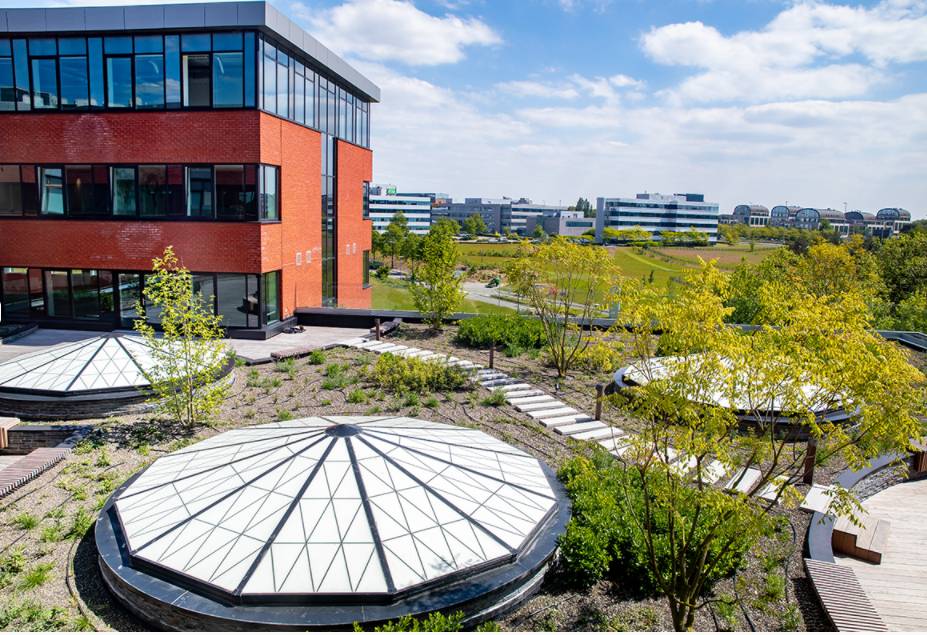

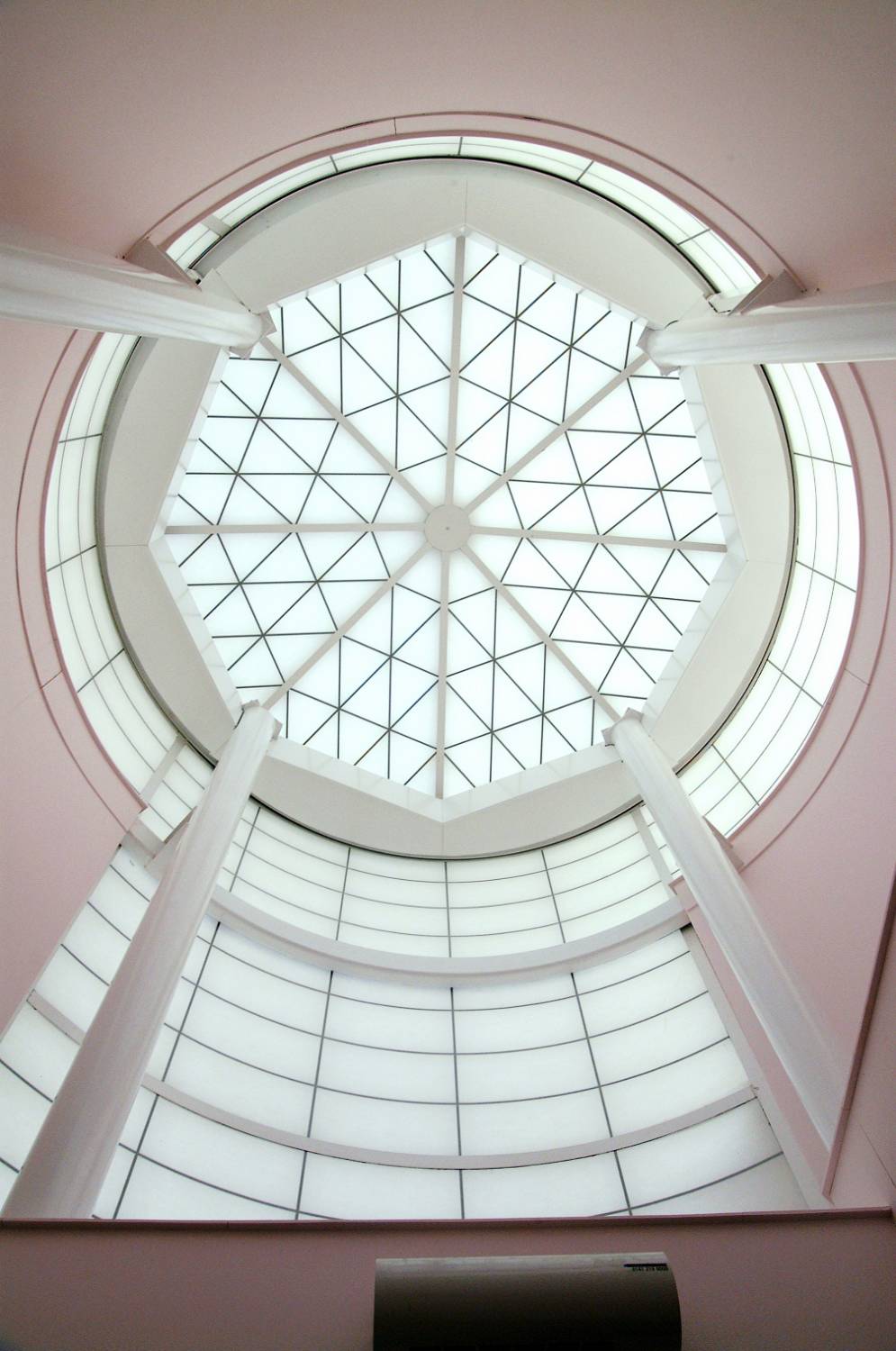

Geo-roofs®:

A stunning and cost effective top lighting option, Geo-roofs® come from 8′ to 24′. Geos are a favorite in retail and lobby areas, as diffuse daylighting bathes areas below and showcases goods with perfect colour.


Features and benefits:

  • Aluminium or thermally-broken Grid Core composed of a series of interlocking I-beams.
  • Interior shatterproof FRP faces are formulated to meet interior finish, flame, and smoke requirements of the toughest international codes.
  • Translucent Insulation options, including Cabot’s Lumira® aerogel offer exceptional thermal properties.
  • Colour stable FRP face sheets with a permanent glass veil erosion barrier to eliminate fibre bloom.
  • Clamp-tite™ aluminium fastening system, specifically engineered and available as either standard or thermally-broken with many finish options.
  • Properly maintained Kalwall Skyroofs and Skylights can be walked on without risk of fall through. Tested to ASTM E661, Kalwall exceeds OSHA 1910.23 without the need for additional protection like external screens or fixed railings.
  • The shatterproof, super-weathering FRP face will withstand a 70 ft-lbs (95 J) impact. Optional high impact FRP faces will withstand 230 ft-lbs (312 J) impact by UL 972; also rated for windborne debris protection up to large missile D.
  • Complimentary Daylighting Analysis available, consult the manufacturer for details.
  • UL and FM approved.
  • CE / UKCA marked.
  • For U-values, light transmission and G-values consult technical literature (varies depending on type, thickness and exterior face colour).


Kalwall is not a glazing panel but rather a structural sandwich panel with outstanding load capacity and structural integrity that polycarbonate systems

and insulated glass units (IGU) simply cannot match.


With a high strength-to-weight ratio, Kalwall panels are both strong and lightweight. This makes the installation process easier and reduces extraneous structural support framing, saving both time and money. All Kalwall systems are very low maintenance. The panel’s FRP faces have self-cleaning properties, are resistant to dirt and particulate build-up, and can handle harsh chemical and environmental exposure.


The panels block harmful UV-A and UV-B rays while transmitting the full spectrum of visible light for perfect colour rendition within interiors. With a wide range of translucent insulation options, Kalwall’s thermal performance reduces HVAC heating and cooling loads while harvesting daylight to cut artificial lighting usage.


Fibreglass Reinforced Polymer (FRP) Faces:

Kalwall has developed a full line of high performance FRP face sheets including the latest generation of Super Weathering (SW) formulations that are unrivalled in the industry. Along with a variety of high performance options, Kalwall offers both standard and optional colours and finishes in order to provide designers with more flexibility. Translucent White and Crystal FRP face sheets are standard. The four Kal-tints are optional. Optional FRP finishes are available for interior face sheets only.

General information

Color

White

Grey

Blue

Red

Green

Show more

Finish

Mill

Guidance for specification option:

Aluminium Mill finish

Anodized

Guidance for specification option:

215R1 Clear Anodized, 204R1 Clear Anodized, 311 Light Bronze Anodized, 312 Mid Bronze Anodized, 313 Dark Bronze Anodized.

Painted

Guidance for specification option:

Kalwall Corrosion Resistant Finish (KCRF) in standard colours or custom

Material

Aluminium

Composite

Fiber-glass

Glass Fibre

Glass Reinforced Plastic (GRP)

Show more

Shape

Rectangle

Guidance for specification option:

S-lines.

Circle

Guidance for specification option:

Geo-Roofs®.

Square

Guidance for specification option:

S-lines/ Pyramids

Manufacturer guidance

Base shape only; see variants for further details.

Length

Bespoke

Width

Bespoke

Height

70 mm

100 mm

Uniclass

Ss_30_30_72_72 Rooflight systemsPrimary

CAWS

L10/460 Rooflights

Specification data - Rooflight systems

Rooflight

Pyramid.

Outer dimensions

Ø 2438 mm.

Guidance for specification option:

Outside curb dimensions across corners: 2640 mm.

Ø 2743 mm.

Guidance for specification option:

Outside curb dimensions across corners: 2969 mm.

Ø 3048 mm.

Guidance for specification option:

Outside curb dimensions across corners: 3299 mm.

Ø 3353 mm.

Guidance for specification option:

Outside curb dimensions across corners: 3629 mm.

Ø 3658 mm.

Guidance for specification option:

Outside curb dimensions across corners: 3959 mm.

Show more

Manufacturer guidance

Outside curb dimensions across flats.

Glazed panel

Flat.

Colour/ Finish (external)

Crystal SW-E.

Guidance for specification option:

Standard.

White SW-E.

Guidance for specification option:

Standard.

Colour/ Finish (internal)

White B-3C.

Guidance for specification option:

Standard.

Thickness

70 mm.

Configuration

Reverse Shoji, 500 x 200 mm.

Reverse Shoji, 500 x 300 mm.

Reverse Shoji, 600 x 300 mm.

Shoji, 200 x 500 mm.

Guidance for specification option:

Shoji Grid Cores are standard. Nominal grid sizes are 305 x 609 mm and 609 x 305 mm for 1220 and 1524 mm wide panels for standard flat or optional Kalcurve panels. Panel spans will vary with different grid cores and

spacings. Consult the factory for information based on project requirements. 203 x 508 mm, 508 x 203 mm are common options. Aerogel is available.

Shoji, 300 x 500 mm.

Show more

Manufacturer guidance

Various types/ styles are available in different sizes, consult literature for details and insert requirements.

Insulation

0.57 W/m²K.

Support

Self supported.

Supported.

Pitch

15°.

Bespoke.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Colour

Mill finish.

Kalwall Corrosion Resistant Finish (KCRF) - Aluminium 79.

Kalwall Corrosion Resistant Finish (KCRF) - Banner red 90.

Kalwall Corrosion Resistant Finish (KCRF) - Black 95.

Kalwall Corrosion Resistant Finish (KCRF) - Blue 15.

Show more

Manufacturer guidance

The Clamp-tite™ fastening system is available in either

mill finish or Kalwall Corrosion Resistant Finish (KCRF),

a high performance, fluoropolymer-based coating that

meets the performance requirements of AAMA 2604.

(AAMA 2605 and anodised options are available with

some product exceptions). KCRF is highly resistant

to acids, alkalis, salt, industrial and moisture-laden

atmospheres.

Reaction to fire

In accordance with EN 13501-5: 2005: BROOF(t4). In accordance with BS 476:3 2004+A1 2006 + A2 2007: EXT.S.AA.

Deflection

L/44.

L/60.

L/120

Bespoke.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Watertightness

Manufacturer’s standard.

Guidance for specification option:

Consult manufacturer for details.

Air permeability

Manufacturer’s standard.

Guidance for specification option:

Consult manufacturer for details.

Impact resistance

350-520 kg static load in accordance with ASTM E661-03.

Guidance for specification option:

OSHA Fall Through Compliant (requirement exceeded (300 kg) without the need for external screens or guardrails) - OSHA Standard 1910.23: sub part D Walking-Working Surfaces.

WindLoadRating

To EN 13116/ EN 12153: 1600 N/m².

Glazing bars

Aluminium Grid Core Interlocking I-beams.

Thermally-broken Grid Core Interlocking I-beams.

Glazing

Smooth Fibreglass Reinforced Polymer (FRP), 1.78 mm thick (external), 1.14 mm thick (internal).

Fasteners

Clamp-tite™.

Light transmission

5% (White SW-E)/ 6% (Crystal SW-E).

Solar heat gain coefficient

0.06 (White SW-E)/ 0.07 (Crystal SW-E).

Sustainability data

Contains Red List materials

No

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

76.6 kg CO₂ eq/m²

Guidance for specification option:

Figure show is based on 1m2 of Kalwall translucent panelsin to the standard Aluminium Clamptite frame.


See attached EPD "EU Skyroofs" for full details

Manufacturer guidance

EPD's can be downloaded from NBS for both wall and roof systems

Recyclability

Can be recycled - See guidance

Manufacturer guidance

Kalwall has a design life of 25 years with minimal maintenance. Made from Aluminium and FRP it is chemical and rot resistant. UV stable to full body depth, it will not yellow. The FRP facesheets are also engineered to incorporate a glass erosion barrier, preventing fibre bloom. The Aluminium frame is easily recycled, the FRP sheets can be separated and ground to a powder and added back into GRP production.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Manufacturer guidance

Recycled content can be up to 95% depending on configuration and speciation.

Third party certifications

Third party certifications

EPD

EPD

Environmental Product Declaration - Kalwall Wall Systems

EPD

EPD

Environmental Product Declaration - Kalwall Skyroofs

Literature

Kalwall - Product Guide - Overview of Kalwall

Kalwall - Product Guide - Overview of Kalwall

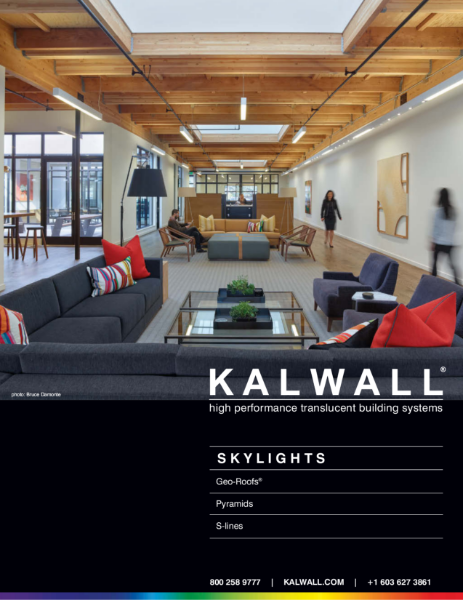

Kalwall - Product Guide - Skylights
