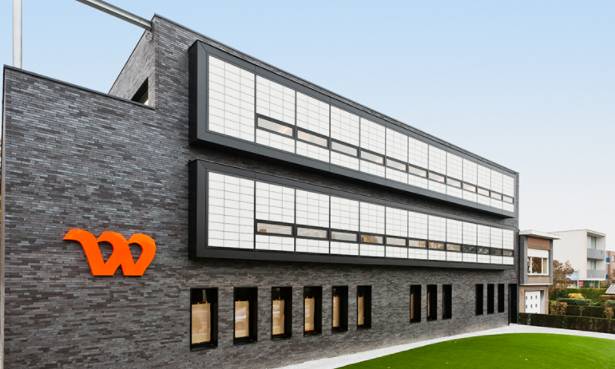

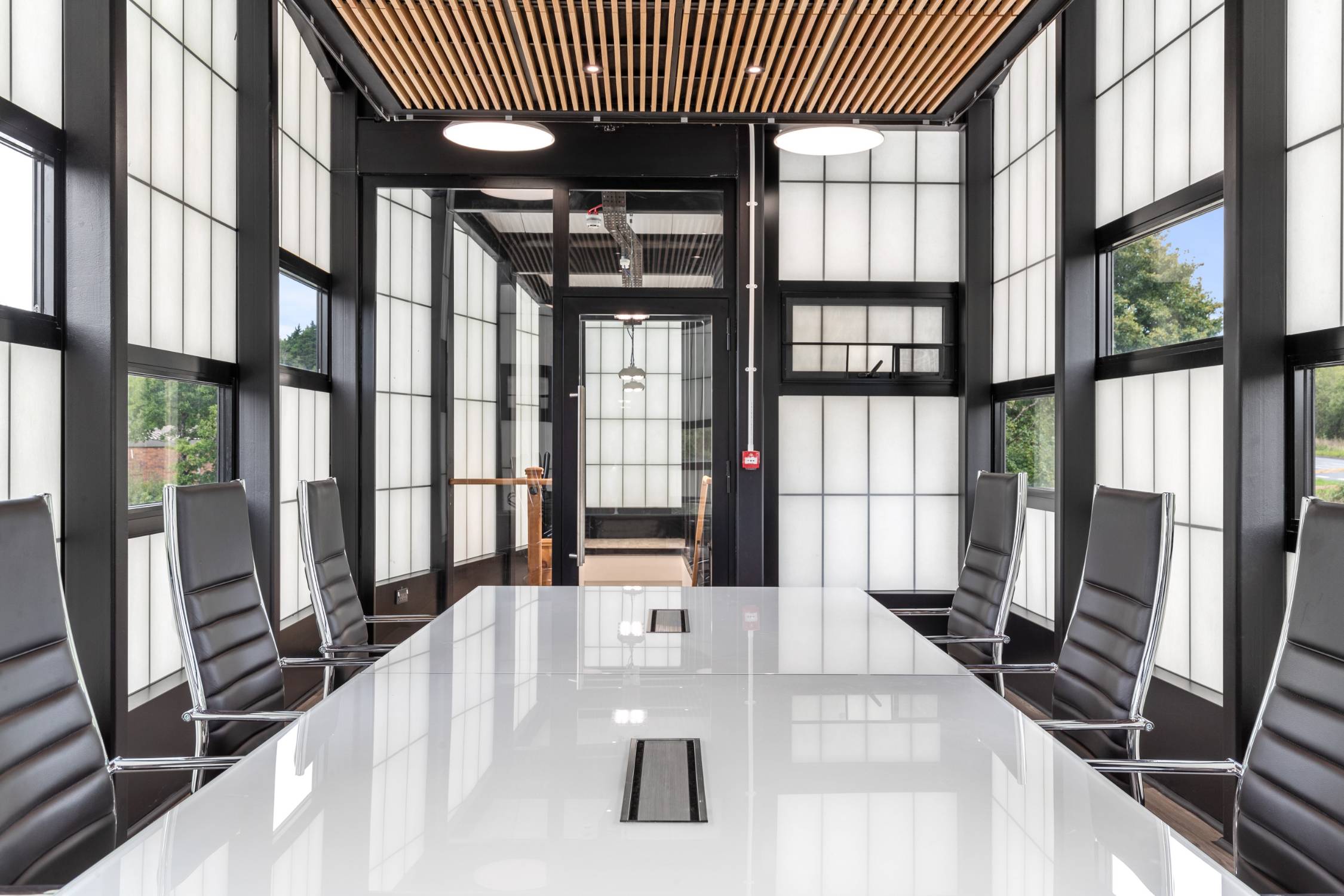

Kalwall Translucent Daylighting E-series / HC2000 windows

Verified by manufacturer 5 months ago

Kalwall Third party certifications:
  • EPD

    EPD

    Certificate type

Kalwall diffused natural daylighting high performance windows. Glazed with or without Kalwall panels.

Jump to:
+44 (0)20 8397 4361 Website

Application

Window applications.

Description

High performance translucent window.


Retrofits with Kalwall vs. Glass results in dramatic savings for stopping heat loss, reducing electric light usage by offering glare free-usable diffuse daylight, eliminating the need for shades, and decreasing solar heat gain. The high performance systems are very competitively priced, virtually maintenance free, and offer increased security compared to typical glass retrofits, for both increased impact resistance and vandalism.


Only to be used as part of the Kalwall system - not to be specified separately. Consult manufacturer for further details.


E-Series Windows:

Kalwall manufactures its E-Series Windows for architectural applications where performance and craftsmanship are paramount. E-Series windows are engineered and tested for the most demanding applications.


Features and benefits:

  • Aluminium or thermally-broken Grid Core composed of a series of interlocking I-beams.
  • Interior shatterproof FRP faces are formulated to meet interior finish, flame, and smoke requirements of the toughest international codes.
  • Translucent Insulation options, including Cabot’s Lumira® aerogel offer exceptional thermal properties.
  • Colour stable FRP face sheets with a permanent glass veil erosion barrier to eliminate fibre bloom.
  • Clamp-tite™ aluminium fastening system, specifically engineered and available as either standard or thermally-broken with many finish options.
  • The shatterproof, super-weathering FRP face will withstand a 70 ft-lbs (95 J) impact. Optional high impact FRP faces will withstand 230 ft-lbs (312 J) impact by UL 972; also rated for windborne debris protection up to large missile D.
  • Complimentary Daylighting Analysis available, consult the manufacturer for details.
  • UL and FM approved.
  • CE / UKCA marked.


Kalwall is not a glazing panel but rather a structural sandwich panel with outstanding load capacity and structural integrity that polycarbonate systems and insulated glass units (IGU) simply cannot match.


With a high strength-to-weight ratio, Kalwall panels are both strong and lightweight. This makes the installation process easier and reduces extraneous structural support framing, saving both time and money. All Kalwall systems are very low maintenance. The panel’s FRP faces have self-cleaning properties, are resistant to dirt and particulate build-up, and can handle harsh chemical and environmental exposure.


The panels block harmful UV-A and UV-B rays while transmitting the full spectrum of visible light for perfect colour rendition within interiors. With a wide range of translucent insulation options, Kalwall’s thermal performance reduces HVAC heating and cooling loads while harvesting daylight to cut artificial lighting usage.


Fibreglass Reinforced Polymer (FRP) Faces:

Kalwall has developed a full line of high performance FRP face sheets including the latest generation of Super Weathering (SW) formulations that are unrivalled in the industry. Along with a variety of high performance options, Kalwall offers both standard and optional colours and finishes in order to provide designers with more flexibility. Translucent White and Crystal FRP face sheets are standard. The four Kal-tints are optional. Optional FRP finishes are available for interior face sheets only.

General information

Color

White

Grey

Blue

Red

Green

Show more

Finish

Galvanized

Gloss

Mill

Painted

Material

Composite

Fibre-reinforced

Glass Reinforced Plastic (GRP)

Resin

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Kalwall panel standards widths are 1224 mm (4ft), 1520 mm (5ft). Maximum width is 1520 mm (5ft). E-series window width must be the same as the panel width.


E-Series Fixed sash:

• Max width 1500 mm (width must be the same as the panel width).

• Total area must not exceed 3.787 m² at 5.027 KPa.


E-Series Project in sash:

• Max width 1500 mm (width must be the same as the panel width).

• Standard heights of 460 mm or 610 mm.

• Maximum height of 1070 mm.

• Minimum height of 410 mm.


E-Series Project out sash:

• Max width 1500 mm (width must be the same as the panel width).

• Standard heights of 460 mm or 610 mm.

• Maximum height of 1370 mm.

• Minimum height of 410 mm.

Height

25 mm

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/330 Aluminium windows

Specification data - Aluminium window units

Dimensions and configurations

E-Series Fixed sash.

Guidance for specification option:

• Max width 1500 mm (width must be the same as the panel width).

• Total area must not exceed 3.787 m² at 5.027 KPa.

E-Series Project in sash.

Guidance for specification option:

• Max width 1500 mm (width must be the same as the panel width).

• Standard heights of 460 mm or 610 mm.

• Maximum height of 1070 mm.

• Minimum height of 410 mm.

E-Series Project out sash.

Guidance for specification option:

• Max width 1500 mm (width must be the same as the panel width).

• Standard heights of 460 mm or 610 mm.

• Maximum height of 1370 mm.

• Minimum height of 410 mm.

Manufacturer guidance

25 mm Kalwall panel or 25 mm double or triple glazed glass.

Product performance

-

Weather performance

-

Air permeability

Permeability class to EN12152/EN12153: Class A4 (1.19 m³/h pressure and 1.37 m³/h suction at 600 Pa).

Watertightness

Watertightness class to EN 12154 and EN 12155: Class RE800 (No water penetration at 800 Pa).

Resistance to wind load

To EN 13116/ EN 12153: 1600 N/m².

Frame

-

Finish as delivered

-

Colour

Mill finish.

Kalwall Corrosion Resistant Finish (KCRF) - Aluminium 79.

Kalwall Corrosion Resistant Finish (KCRF) - Banner red 90.

Kalwall Corrosion Resistant Finish (KCRF) - Black 95.

Kalwall Corrosion Resistant Finish (KCRF) - Blue 15.

Kalwall Corrosion Resistant Finish (KCRF) - Bone white 21B.

Kalwall Corrosion Resistant Finish (KCRF) - Brick 88.

Kalwall Corrosion Resistant Finish (KCRF) - Bronze 85.

Kalwall Corrosion Resistant Finish (KCRF) - Coro blue 48.

Kalwall Corrosion Resistant Finish (KCRF) - Grey 80.

Kalwall Corrosion Resistant Finish (KCRF) - Hartford green 75.

Kalwall Corrosion Resistant Finish (KCRF) - Minuette 03.

Kalwall Corrosion Resistant Finish (KCRF) - Mountain green 70.

Kalwall Corrosion Resistant Finish (KCRF) - White 00.

Kalwall Corrosion Resistant Finish (KCRF) - Custom.

Guidance for specification option:

Insert requirements.

204R1 Clear anodised.

215R1 Clear anodised.

311 Light bronze anodised.

312 Mid bronze anodised.

313 Dark bronze anodised.

Glazing or infill

-

Standard

Smooth Fibreglass Reinforced Polymer (FRP), 1.78 mm thick (external), 1.14 mm thick (internal).

Requirements

25 mm glass.

25 mm Kalwall panel.

Fixing features

Clamp-tite™.

Colour/ Finish (external)

White SW-E.

Guidance for specification option:

Standard.

Crystal SW-E.

Guidance for specification option:

Standard.

Colour/ Finish (internal)

White B-3C.

Guidance for specification option:

Standard.

Reaction to fire

In accordance with EN 13501-1: External facesheet: C-s3,d0, Internal facesheet: B-s2,d0.

SurfaceSpreadOfFlame

In accordance with BS 476-7: Interior face: UK Class 1(0),
Exterior face: UK class 2.

Fire propagation to BS 476-6

Fire propagation index (I) 5.1. Sub-index (i1) 1.5.

Impact resistance

900 Joules (soft body impact), 10 Joules (hard body impact).

Sustainability data

Contains Red List materials

No

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

EPD's can be downloaded from NBS for both wall and roof systems

Recyclability

Can be recycled - See guidance

Manufacturer guidance

Kalwall has a design life of 25 years with minimal maintenance. Made from Aluminium and FRP it is chemical and rot resistant. UV stable to full body depth, it will not yellow. The FRP facesheets are also engineered to incorporate a glass erosion barrier, preventing fibre bloom. The Aluminium frame is easily recycled, the FRP sheets can be separated and ground to a powder and added back into GRP production.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Manufacturer guidance

Recycled content can be up to 95% depending on configuration and speciation.

Third party certifications

Third party certifications

EPD

EPD

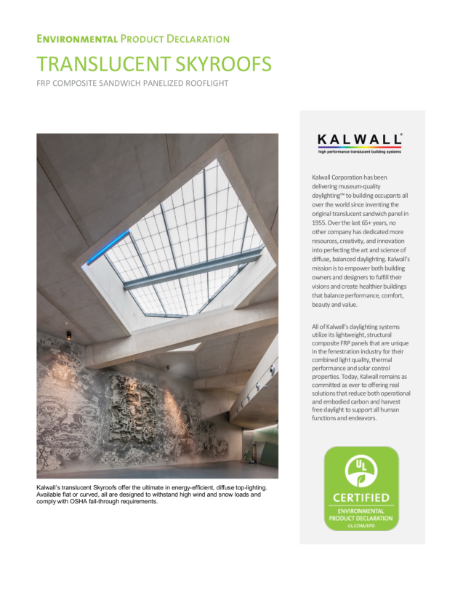

Environmental Product Declaration - Kalwall Skyroofs

EPD

EPD

Environmental Product Declaration - Kalwall Wall Systems

Literature

Kalwall - Backlighting

Kalwall - Backlighting

Kalwall - Daylight modelling

Kalwall - Daylight modelling

Kalwall - Diffused daylighting

Kalwall - Diffused daylighting

Kalwall - Durability

Kalwall - Durability

Kalwall - LEED v3 benefits

Kalwall - LEED v3 benefits

Kalwall - LEED v4 benefits

Kalwall - LEED v4 benefits

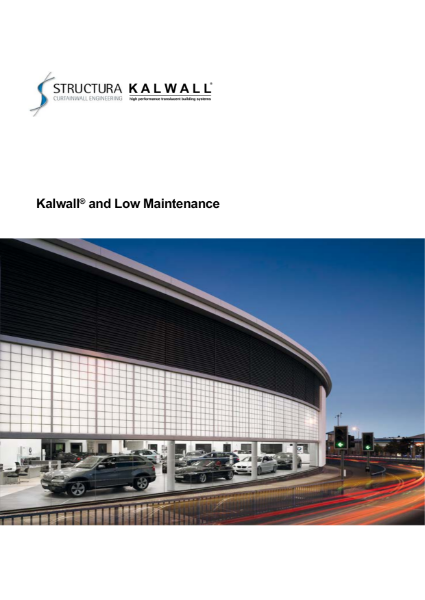

Kalwall - Low Maintenance

Kalwall - Low Maintenance

Kalwall - Museum Quality Daylighting

Kalwall - Museum Quality Daylighting

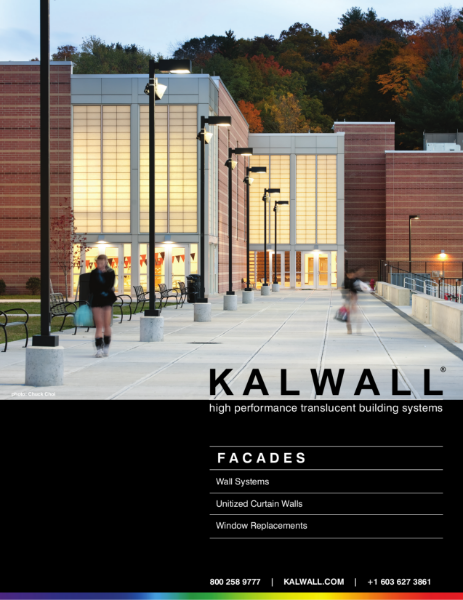

Kalwall - Product Guide - Facades

Kalwall - Product Guide - Facades

Kalwall - Product Guide - Overview of Kalwall

Kalwall - Product Guide - Overview of Kalwall

Kalwall - Product Guide - Retrofit and renovations

Kalwall - Product Guide - Retrofit and renovations

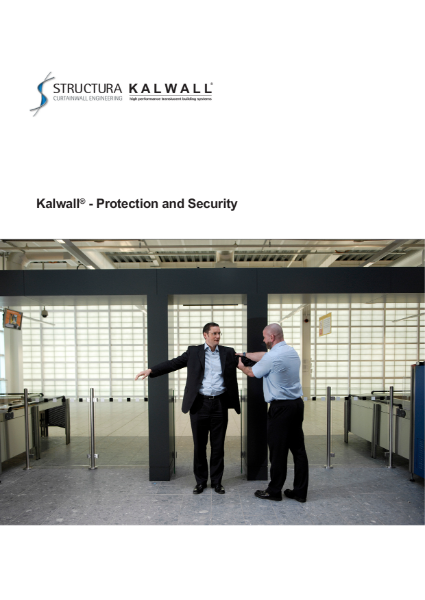

Kalwall - Protection and Security

Kalwall - Protection and Security

Kalwall - Reduced Glare

Kalwall - Reduced Glare

Kalwall - Retrofit and renovation

Kalwall - Retrofit and renovation

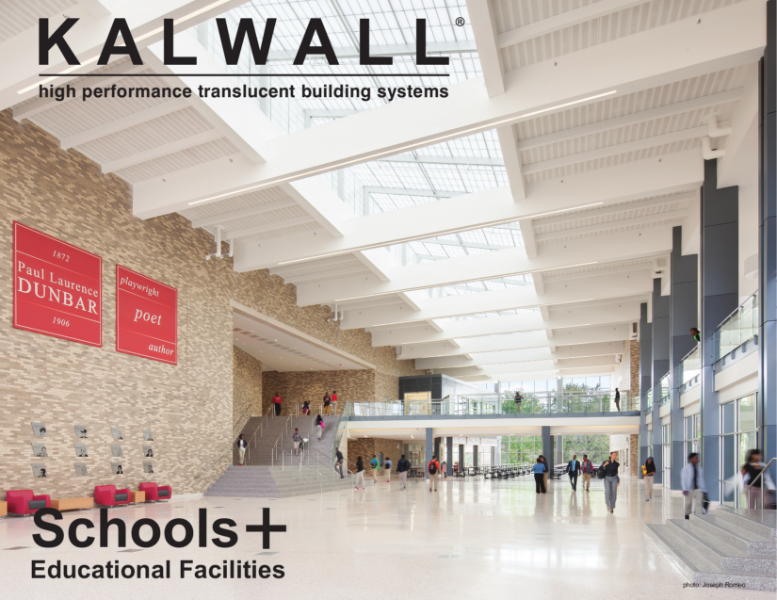

Kalwall - Sector Report - Education

Kalwall - Sector Report - Education

Kalwall - Sector Report - Sport & Leisure

Kalwall - Sector Report - Sport & Leisure

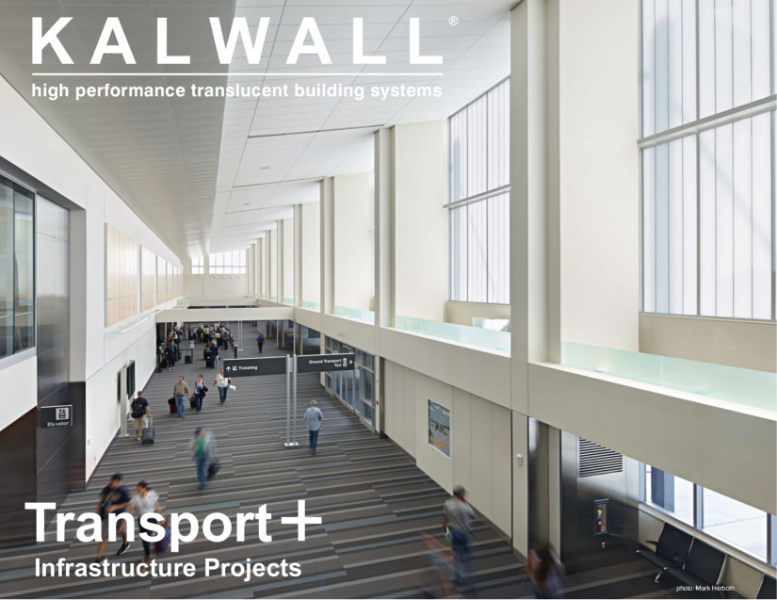

Kalwall - Sector Report - Transportation

Kalwall - Sector Report - Transportation

Kalwall - Solar Control

Kalwall - Solar Control

Kalwall - Thermal Performance

Kalwall - Thermal Performance

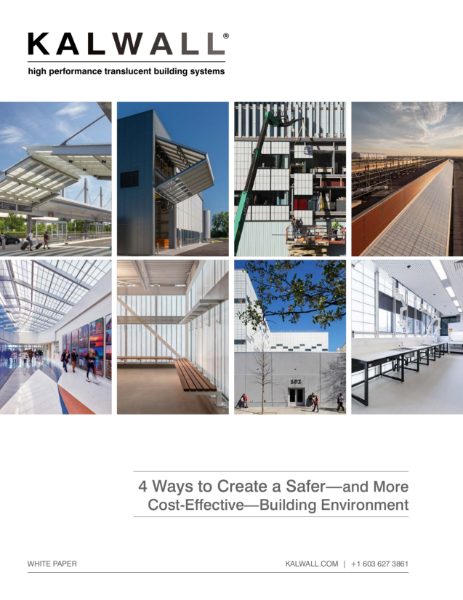

White Paper - Creating A Safer Built Environment

White Paper - Creating A Safer Built Environment

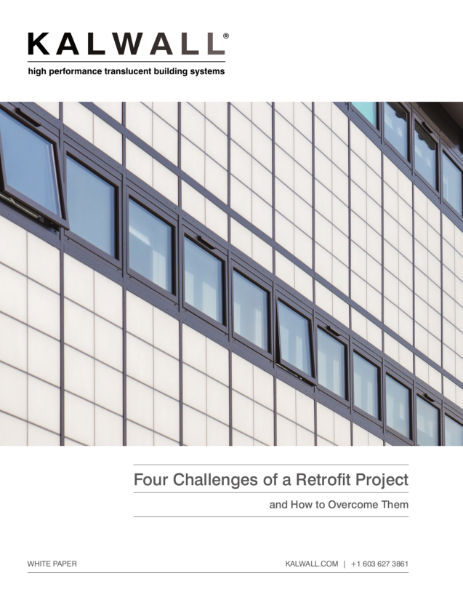

White Paper - Four Challenges of a Retrofit Project

White Paper - Four Challenges of a Retrofit Project

Case studies

Kalwall Translucent Cladding - Crouch End Picturehouse

Kalwall Translucent Cladding - Crouch End Picturehouse

Kalwall Translucent Cladding - Metea Valley High School

Kalwall Translucent Cladding - Metea Valley High School

Kalwall Translucent Cladding - Mahwah High School

Kalwall Translucent Cladding - Mahwah High School

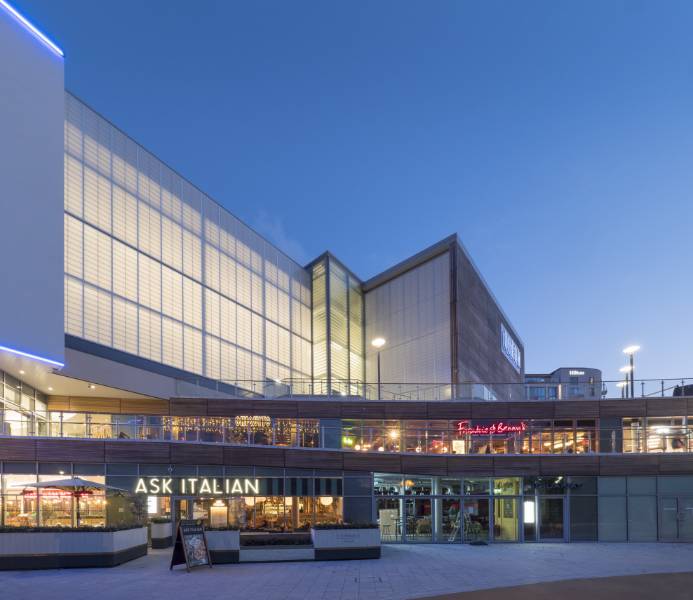

Kalwall Translucent Cladding - BH2 Bournemouth
