Verified by manufacturer 5 months ago
70 mm panel - Standard Panel (3.08 W/m²K)
EPD
Certificate type

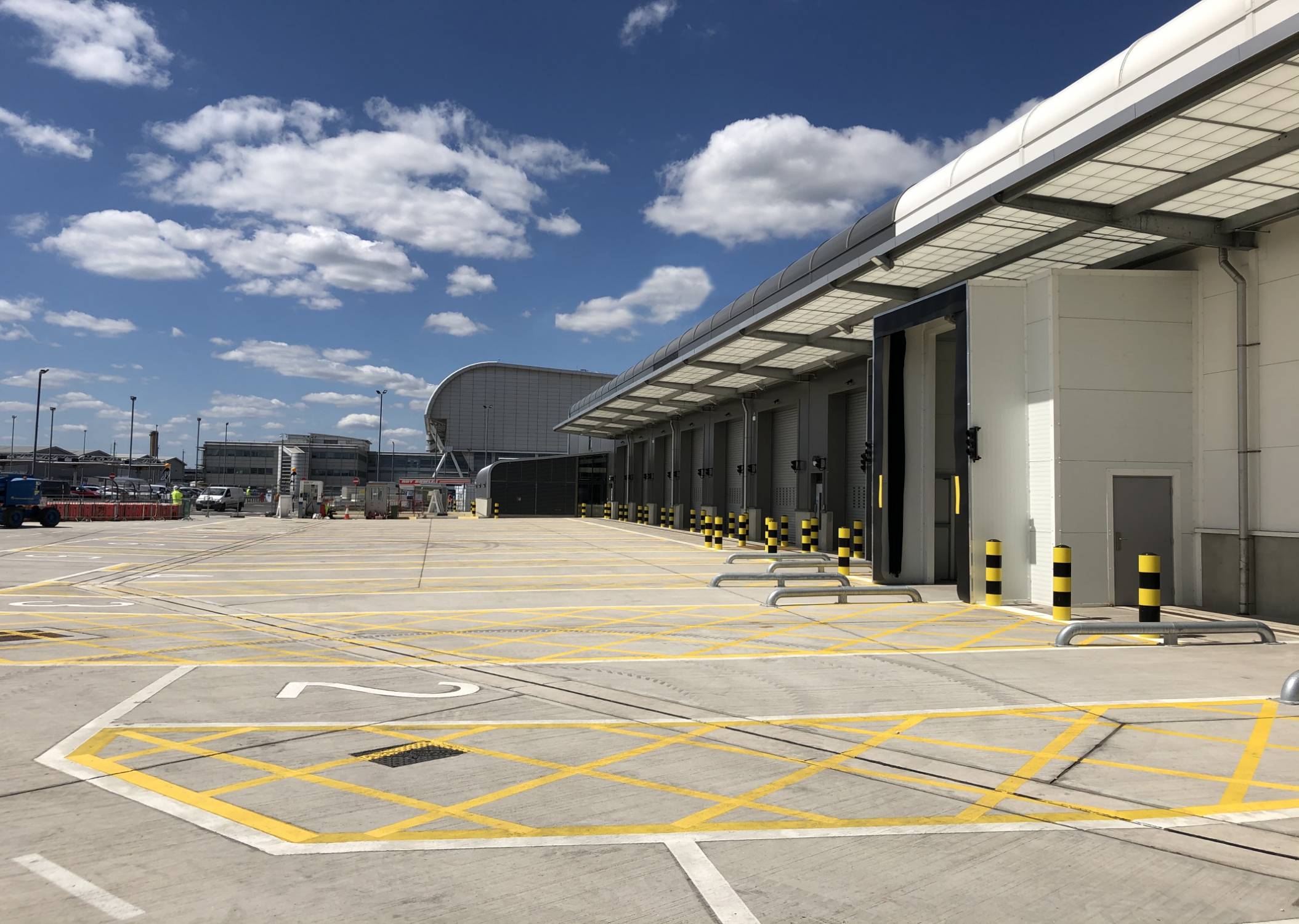

Kalwall Translucent Daylighting canopies. Man safe and OSHA fall through compliant.
Canopy applications.
Canopies offer unlimited design flexibility, and can be curved, segmented, flat or tiered. Balanced diffuse lighting helps visual acuity in transitional spaces and general navigation.
Kalwall panel standards widths are 1224 mm (4ft), 1520 mm (5ft) Maximum width is 1520 mm (5ft). Panel lengths between 914 mm and 6096mm. Note: please check spans with Structura UK Ltd.
Features and benefits:
Kalwall is not a glazing panel but rather a structural sandwich panel with outstanding load capacity and structural integrity that polycarbonate systems and insulated glass units (IGU) simply cannot match.
With a high strength-to-weight ratio, Kalwall panels are both strong and lightweight. This makes the installation process easier and reduces extraneous structural support framing, saving both time and money. All Kalwall systems are very low maintenance. The panel’s FRP faces have self-cleaning properties, are resistant to dirt and particulate build-up, and can handle harsh chemical and environmental exposure.
The panels block harmful UV-A and UV-B rays while transmitting the full spectrum of visible light for perfect colour rendition within interiors. With a wide range of translucent insulation options, Kalwall’s thermal performance reduces HVAC heating and cooling loads while harvesting daylight to cut artificial lighting usage.
Fibreglass Reinforced Polymer (FRP) Faces:
Kalwall has developed a full line of high performance FRP face sheets including the latest generation of Super Weathering (SW) formulations that are unrivalled in the industry. Along with a variety of high performance options, Kalwall offers both standard and optional colours and finishes in order to provide designers with more flexibility. Translucent White and Crystal FRP face sheets are standard. The four Kal-tints are optional. Optional FRP finishes are available for interior face sheets only.
Color | Black Blue Bronze Brown Green |
Finish | Anodized Guidance for specification option: 215R1 Clear Anodized, 204R1 Clear Anodized, 311 Light Bronze Anodized, 312 Mid Bronze Anodized, 313 Dark Bronze Anodized. Painted Guidance for specification option: Kalwall Corrosion Resistant Finish (KCRF) in standard colours or custom. Mill Guidance for specification option: Milled aluminium |
Material | Aluminium Composite Fiber-glass Glass Reinforced Plastic (GRP) High quality glass reinforced plastic (GRP) |
Shape | Rectangle Trapezoid Other Guidance for specification option: Curved. |
Length | Bespoke Manufacturer guidancePanel lengths between 914 and 6096 mm. Please check spans with Structura UK Ltd. |
Width | Bespoke Guidance for specification option: Maximum width is 1520 mm (5ft) Manufacturer guidanceKalwall panel standards widths are 1224 mm (4ft), 1520 mm (5ft) Maximum width is 1520 mm (5ft) |
Height | 70 mm 100 mm |
Uniclass | |
CAWS | B91/385 Shelter B91/330 Canopy |
Shelter description | Canopy.Walkway. |
Dimensions | |
Plan size | Manufacturer guidance
|
Height | 70 mm.100 mm. |
Frame | |
Material | Aluminium Grid Core Interlocking I-beams. |
Finish | Mill finish.Kalwall Corrosion Resistant Finish (KCRF) - Aluminium 79.Kalwall Corrosion Resistant Finish (KCRF) - Banner red 90.Kalwall Corrosion Resistant Finish (KCRF) - Black 95.Kalwall Corrosion Resistant Finish (KCRF) - Blue 15.Kalwall Corrosion Resistant Finish (KCRF) - Bone white 21B.Kalwall Corrosion Resistant Finish (KCRF) - Brick 88.Kalwall Corrosion Resistant Finish (KCRF) - Bronze 85.Kalwall Corrosion Resistant Finish (KCRF) - Coro blue 48.Kalwall Corrosion Resistant Finish (KCRF) - Grey 80.Kalwall Corrosion Resistant Finish (KCRF) - Hartford green 75.Kalwall Corrosion Resistant Finish (KCRF) - Minuette 03.Kalwall Corrosion Resistant Finish (KCRF) - Mountain green 70.Kalwall Corrosion Resistant Finish (KCRF) - White 00.Kalwall Corrosion Resistant Finish (KCRF) - Custom.Guidance for specification option: Insert requirements. 204R1 Clear anodised.215R1 Clear anodised.311 Light bronze anodised.312 Mid bronze anodised.313 Dark bronze anodised. |
Colour | Black.Blue.Bronze.Brown.Green.Grey.Red.White.Yellow. |
Roof covering | Smooth Fibreglass Reinforced Polymer (FRP), 1.78 mm thick (external), 1.14 mm thick (internal). |
Glazed panel | Curved. Flat. |
Colour/ Finish (external) | Crystal SW-E. Guidance for specification option: Standard. White SW-E. Guidance for specification option: Standard. |
Colour/ Finish (internal) | Crystal SW-E. White B3-C. White SW-E. |
Thickness | 70 mm. Guidance for specification option: Standard. |
Configuration | Reverse Shoji, 500 x 200 mm. Reverse Shoji, 500 x 300 mm. Reverse Shoji, 600 x 300 mm. Shoji, 200 x 500 mm. Guidance for specification option: Shoji Grid Cores are standard. Nominal grid sizes are 305 x 609 mm and 609 x 305 mm for 1220 and 1524 mm wide panels for standard flat or optional Kalcurve panels. Panel spans will vary with different grid cores and spacings. Consult the factory for information based on project requirements. 203 x 508 mm, 508 x 203 mm are common options. Aerogel is available. Shoji, 300 x 500 mm. Manufacturer guidanceVarious types/ styles are available in different sizes, consult literature for details and insert requirements. |
Insulation | 3.08 W/m²K. |
Support | Self supported. Supported. |
Pitch | 20°. 27°. 33°. 45°. Bespoke. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Colour | Mill finish. Kalwall Corrosion Resistant Finish (KCRF) - Aluminium 79. Kalwall Corrosion Resistant Finish (KCRF) - Banner red 90. Kalwall Corrosion Resistant Finish (KCRF) - Black 95. Kalwall Corrosion Resistant Finish (KCRF) - Blue 15. Manufacturer guidanceThe Clamp-tite™ fastening system is available in either mill finish or Kalwall Corrosion Resistant Finish (KCRF), a high performance, fluoropolymer-based coating that meets the performance requirements of AAMA 2604. (AAMA 2605 and anodised options are available with some product exceptions). KCRF is highly resistant to acids, alkalis, salt, industrial and moisture-laden atmospheres. |
Reaction to fire | In accordance with EN 13501-5: 2005: BROOF(t4). In accordance with BS 476:3 2004+A1 2006 + A2 2007: EXT.S.AA. |
Deflection | L/44. L/60. L/120 Bespoke. Guidance for specification option: Consult manufacturer for details and insert requirements. |
Impact resistance | 350-520 kg static load in accordance with ASTM E661-03. |
WindLoadRating | To EN 13116/ EN 12153: 1600 N/m². |
Fasteners | Clamp-tite™. |
Light transmission | 20% (White SW-E)/ 30% (Crystal SW-E). |
Solar heat gain coefficient | 0.28 (White SW-E)/ 0.35 (Crystal SW-E). |
Contains Red List materials | No |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceEPD's can be downloaded from NBS for both wall and roof systems |
Recyclability | Can be recycled - See guidance Manufacturer guidanceKalwall has a design life of 25 years with minimal maintenance. Made from Aluminium and FRP it is chemical and rot resistant. UV stable to full body depth, it will not yellow. The FRP facesheets are also engineered to incorporate a glass erosion barrier, preventing fibre bloom. The Aluminium frame is easily recycled, the FRP sheets can be separated and ground to a powder and added back into GRP production. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % Manufacturer guidanceRecycled content can be up to 95% depending on configuration and speciation. |
Kalwall - Daylight modelling
Kalwall - Diffused daylighting
Kalwall - Backlighting
Kalwall - Durability
Kalwall - LEED v3 benefits
Kalwall - LEED v4 benefits
Kalwall - Low Maintenance
Kalwall - Museum Quality Daylighting

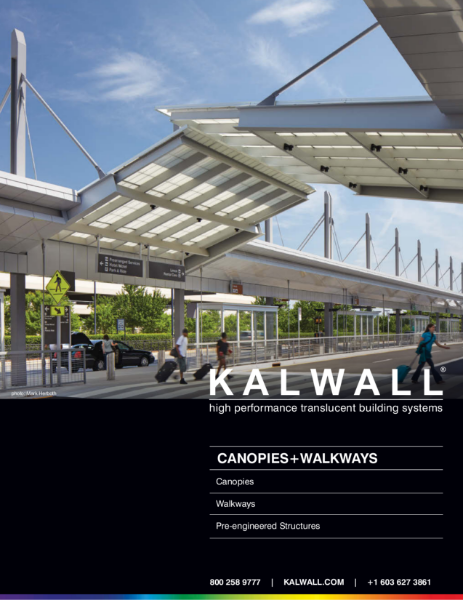

Kalwall - Product Guide - Canopies and Walkways
