Kalwall 175CW - Kalwall 44 mm Curtain Wall Infill Panel - Translucent Insulated Glass Units

Name: Kalwall 175CW - Kalwall 44 mm Curtain Wall Infill Panel - Translucent Insulated Glass Units
Brand: Kalwall
SKU: pjMUcPNjRqdbTg2Fsad4dZ

Verified by manufacturer 2 days ago

Exterior FRP: Crystal; Interior FRP: White

Kalwall

Product certifications:

QA Certificate
Certificate type
QA Certificate
Certificate type
QA Certificate
Certificate type

Kalwall translucent insulated glazing panel for glazing into third-party curtain wall systems.

Jump to:

+44 (0)20 8397 4361 Website

Application

Wall applications.

For glazing into third party curtain wall systems.

The 44mm thick panels allow seamless transitions between Kalwall Translucent panels, vision glass, doors, and louvres, giving architects and designers greater design freedom.

By integrating 44mm Kalwall panels within curtain walling systems, not only does it creates continuity but also simplifies structural design, limits different system transitions, and ultimately simplifies installation.

Description

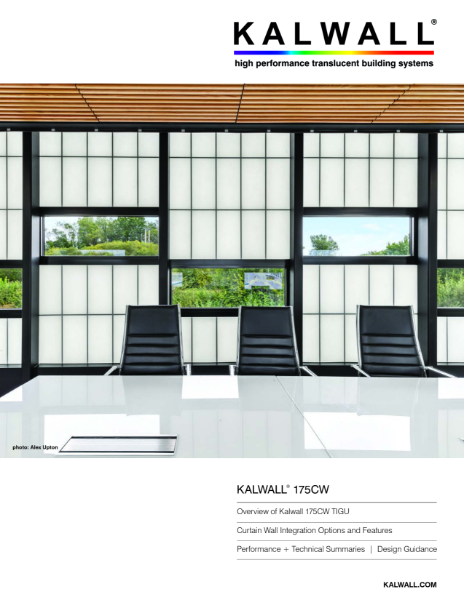

KALWALL® 175CW is the first in a series of new translucent insulated glazing units (TIGUs) for facade applications. The 44 mm panel fit into practically any curtain wall system on the market.

Features and benefits:

High-performance translucent glazing.
Lightweight, strong and high impact resistance.
Create bright, comfortable spaces without sacrificing daylight autonomy.
Mix and match KALWALL 175CW with double or triple glazed units.
KALWALL 175CW offers privacy/modesty and are bird-friendly.
Eliminate the need for solar control and shading systems.
Low maintenance panels are graffiti and vandal resistant.
Three U-values are available: 1.59, 0.91 and 0.79 options (W/m2K).
Highly adaptable system combinations.
Seamless integration and transition between vision glass, operable windows, doors and even support signage or brise soleil systems.
Treat Kalwall panels as if they were a IGU's.
Up to B,s2-d0 rated to EN 13501-1 (dependent on glass specified).

General information

Color	White Grey Blue Black Red Green Bronze Other Clear Show more
Finish	Anodized Mill Painted
Material	Glass Fibre Aluminium Glass Reinforced Plastic (GRP) Composite Fiber-glass
Shape	Rectangle Trapezoid Other
Length	Bespoke Guidance for specification option: Bespoke spans can be accommodated. Manufacturer guidance Typical spans are 3m - 3.5m depending on the internal grid pattern and windloads.
Width	Bespoke Guidance for specification option: Bespoke widths can be manufactured to suit any structural opening. Manufacturer guidance Standards widths are 1220mm and 1524mm. These widths are the most economical and reduce waste.
Height	Bespoke Guidance for specification option: Bespoke spans can be accommodated. Manufacturer guidance Typical spans are 3m - 3.5m depending on the internal grid pattern and windloads.
Warranty description	Ten year Manufacturer guidance Up to ten-year warranty on abnormal colour change, fiberbloom and KWS coating.

Uniclass	Pr_25_71_33_42 Insulated glass units (IGUs)Primary
CAWS	H11/110 Curtain walling L40/60 Insulated glass units L40/655 Insulated glass units (IGUs) – proprietary

SKU Code	175CW

Specification data - Insulated glass units (IGUs)

Classification data
General requirements	Glass generally.
Pane arrangement	Double.
Overall thickness	44 mm.
Performance requirements	-
Fire performance	-
Integrity	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Insulation	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Radiation	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Light	Transmittance 21% (1.59 W/m²K); 13% (0.91 W/m²K); 8% (0.79 W/m²K). Manufacturer guidance Visible light transmittance % by NRFC 202.
Solar control	Solar factor 0.30 (1.59 W/m²K); 0.19 (0.91 W/m²K); 0.12 (0.79 W/m²K). Manufacturer guidance Solar heat gain coefficient at 0° by NFRC 201.
Total shading coefficient	- Manufacturer guidance Shading coefficient (SC) is equal to 1.15 times the solar heat gain coefficient (SHGC by NFRC 201). Consult manufacturer for details.
Thermal insulation	1.59 W/m²K. 0.91 W/m²K. 0.79 W/m²K. Manufacturer guidance U-factor.
Impact resistance	Unclassified.
Unit build-up	-
Inner pane	-
Glass type	Translucent FRP - White B3-C (matt finish). Translucent FRP - White SW-E2 (gloss KWS finish).
Thickness	1-3/4".
Outer pane	-
Glass type	Translucent FRP - Crystal SW-E (gloss KWS finish).
Thickness	1-3/4".
Cavity space fill	Glass fibre batts.
Perimeter spacers	-
Material	Fibre reinforced plastic (FRP) and aluminum.
Edge profile	Flush.
Interior finish	Semi-gloss. Matte. Hexpin.
Reaction to fire	To EN 13501-1: White B3-C - B,s2-d0. White SW-E2 - B,s2-d0. White SW-E - C-s3,d0. Crystal SW-E - C-s3,d0.

Sustainability data

Contains Red List materials	No
Country of material origin	United States
Material	Glass Fibre Aluminium Glass Reinforced Plastic (GRP) Composite Fiber-glass
Carbon dioxide equivalent

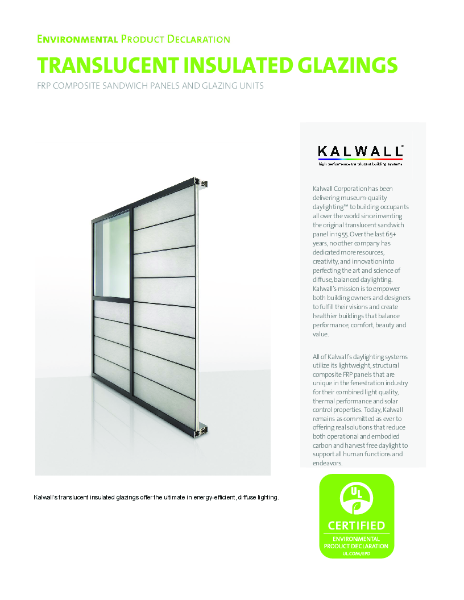

Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 46.5
Recyclability	Can be recycled - See guidance Manufacturer guidance Kalwall has a design life of 25 years with minimal maintenance. Made from Aluminium and FRP it is chemical and rot resistant. UV stable to full body depth, it will not yellow. The FRP facesheets are also engineered to incorporate a glass erosion barrier, preventing fibre bloom. The Aluminium frame is easily recycled, the FRP sheets can be separated and used in the waste to energy industry. The used glass fibres can also be collected and used in the manufacturing of aggregates and asphalt manufacturing. Structura have partnered with Agecko, a leading UK expert in GRP recycling.
Expected Life	25 year
