KABSEAL PRO 6 - Multi-Cables Airtight Grommet

Verified by manufacturer today

KABSEAL PRO 6 4–11

PARTEL Variant:
Third party certifications:
  • Passive House Institute - Certificate

    Passive House Institute - Certificate

    Certificate type

An airtight sealing grommet for multi-cables.

Jump to:
+44 20 3740 1918 Website

Application

Suitable for:

  • Internal and external use.
  • Variety of Partel products, including vapor control layers and breathable membranes.
  • Sealing of up to six penetrations, cables, or empty conduits through the airtight layer.
  • Airtight sealing in accordance with Part L & DIN 4108-7.
  • Airtight and thermal-bridge-free electrical.
  • Installations in compliance with DIN 18015-5.

Description

KABSEAL PRO 6 is a versatile airtight sealing grommet designed for multi-cable penetrations, capable of withstanding moist environments, making it suitable for quickly and permanently, sealing openings in building covers.


Features and benefits:

  • Made of permanently flexible rubber, which can be used in a wide temperature range.
  • Strain-relieving function.
  • Flexible conical grommet - offsets structural movement.
  • Excellent adhesion that permanently withstands a damp climate.
  • Accurate, and permanent sealing of penetrations.
  • Highly tear-resistant.
  • Strong acrylic adhesive with excellent ageing resistance.
  • Split release liner for quick installation.
  • Solvent-free component.

General information

Color

Grey

Guidance for specification option:

Conical grommet.

White

Guidance for specification option:

Adhesive sleeve.

Material

Thermoplastic elastomer (TPE)

Styrene

Polypropylene

Plastic

High density polyethylene (HDPE)

Guidance for specification option:

Adhesive sleeve.

Shape

Circle

Square

Length

230 mm

320 mm

Width

230 mm

320 mm

Uniclass

Pr_65_52_61_64 Pipe sleeve sealsPrimary

CAWS

J42/480 Pipe collars

P31/710 Sealing

P31/40 Sealing around services

J41/480 Pipe collars

Specification data - Pipe sleeve seals

Materials

-

Body

Thermal Plastic Styrene, SEBS (Styrene-Ethylene-Butylene-Styrene) and Polypropylene.

Guidance for specification option:

Conical grommet.

Seal

Special HDPE film reinforced with elasticity.

Guidance for specification option:

Adhesive sleeve.


Acrylic water-resistant adhesive.

  • Adhesive force > 25N/ 25 mm.
  • Tensile strength > 50N/ 25 mm.

Size

6 x 4–11 mm.

Certification

Certified Passive House.

Density

To DIN ISO 1183-1, 1.05 g/cm³.

Elongation at break

To ISO 180/1A, 11 kJ/m².

TensileStrength

To DIN 53504, 3 N/mm².

VOC emissions

A+.

Colour

Grey.

Seal colour

White.

Seal size

230 x 230 mm.

Application temperature range

-30°C to 100°C.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Thermoplastic elastomer (TPE)

Styrene

Polypropylene

Plastic

High density polyethylene (HDPE)

Guidance for specification option:

Adhesive sleeve.

Expected Life

Lifetime

Third party certifications

Passive House Institute - Certificate

Passive House Institute - Certificate

phA Certificate Partel KABSEAL

Literature

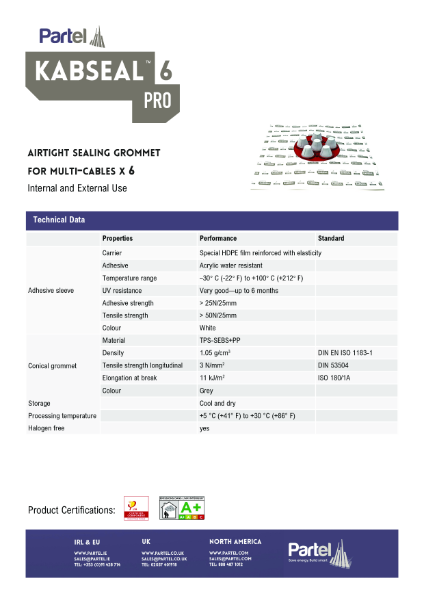

KABSEAL PRO 6

KABSEAL PRO 6

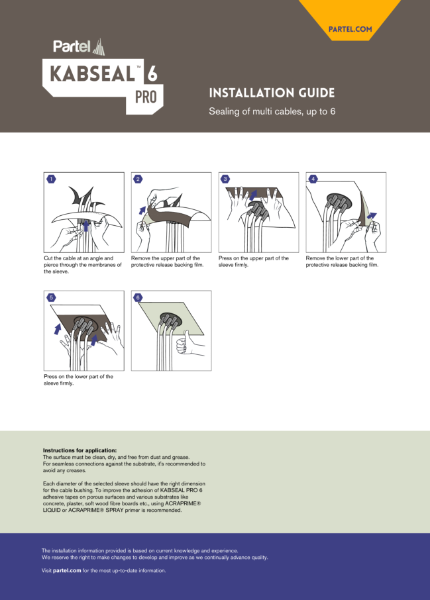

KABSEAL PRO 6 - final digital

KABSEAL PRO 6 - final digital
