K Systems Exicco E, EPS External Wall Insulation (EWI) For Steel and Timber Framed Buildings
Verified by manufacturer 5 months ago
BBA Agrément Certificate
Certificate type
ISO 9001 Quality Management
Certificate type

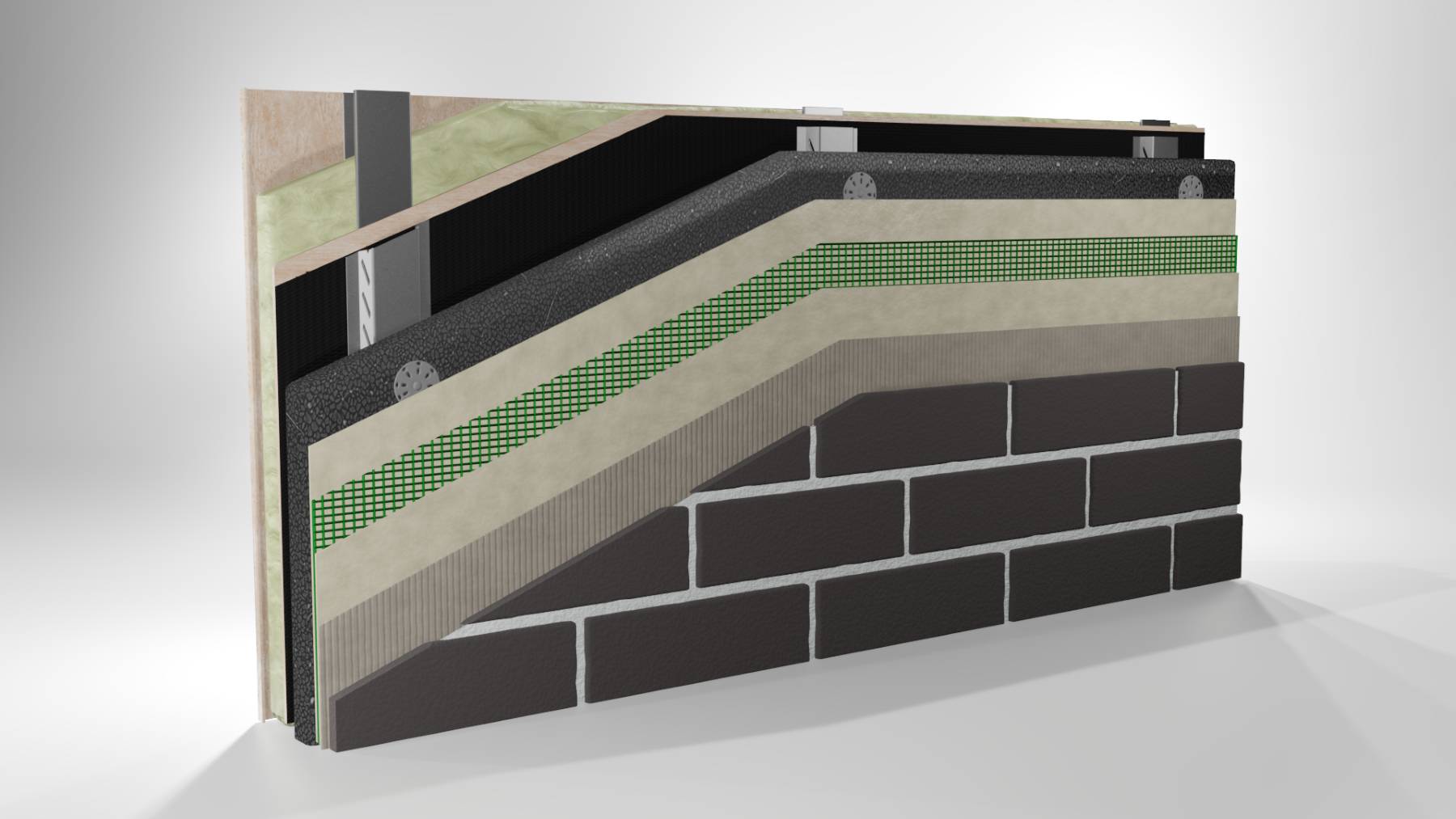

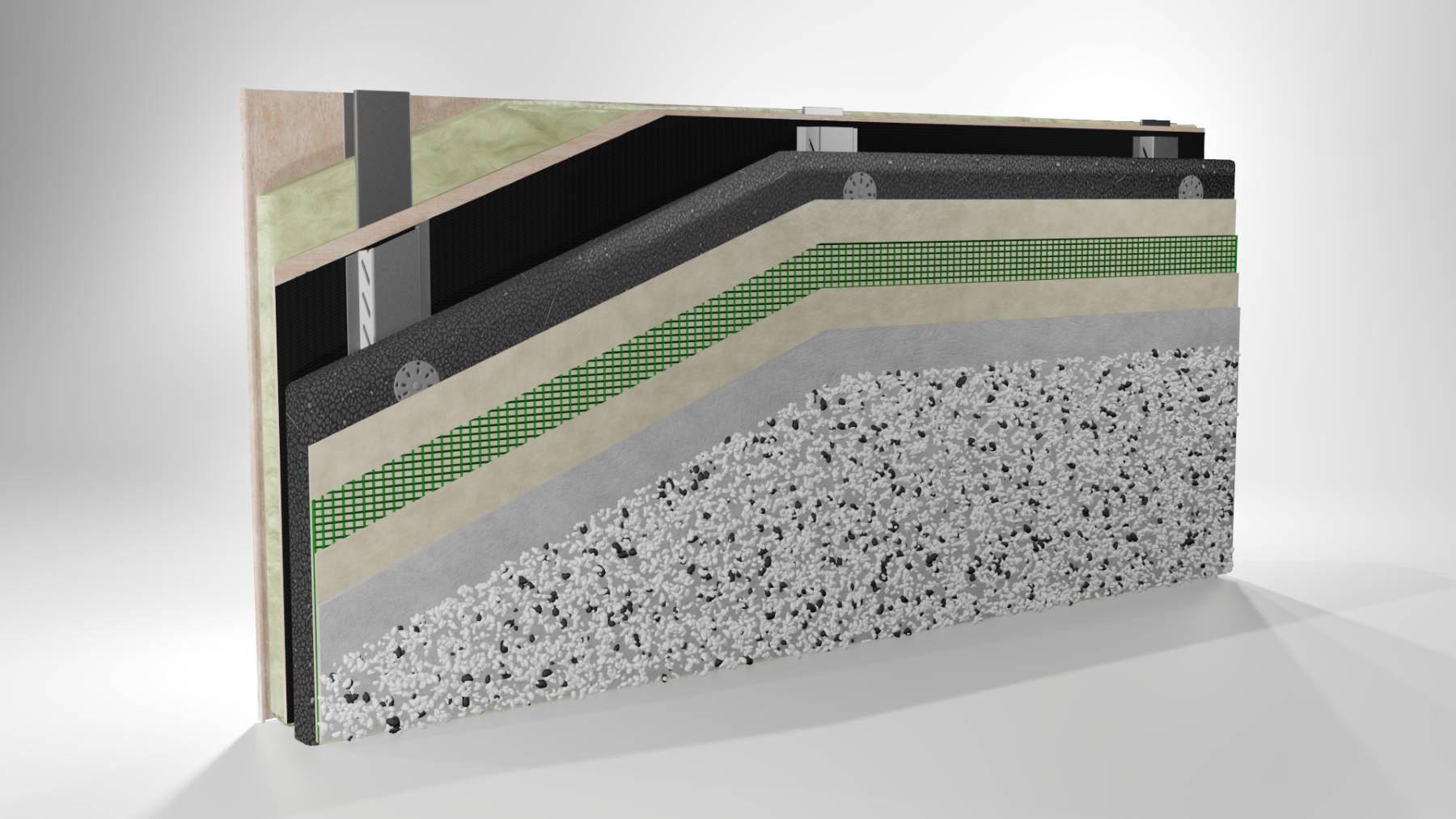

Drained cavity EPS EWI system for steel and timber frame buildings, with options for VBriQ acrylic brick-slips or Silicone TC render finishes.
Application
The system is suited for the upgrade of existing buildings (refurbishment) and for new buildings, particularly where high levels of thermal performance are required.
The System is suitable for low-rise construction, utilising light-weight expanded polystyrene (EPS) insulating panels that incorporate microscopic particles of graphite for enhanced thermal performance.
Description
Exicco is an external wall insulation system that is suitable for steel and timber framed buildings. The drained cavity behind the insulation ensures that any interstitial moisture escapes without detriment to the insulation performance.
A range of aesthetic finishes are available; VBriQ acrylic brick-slips offer a lightweight and highly robust brick finish, whilst Silicone TC thin-coat render provides a highly functional water repellent surface that allows water vapour to pass freely through the render, along with a fresh and modern appearance.
Features and benefits:
- Drained cavity EWI system for steel and timber frame buildings, utilizing light-weight and economical EPS insulation and with a range of finishes available, including acrylic brick slips and thin coat render.
- BBA Certificate: 20/5756 PS1 & PS2
General information
Color | Manufacturer guidanceK Systems standard colour range (other colours are available on request, according to NCS colour range) |
Finish | Dry dash Textured Other |
Material | Render Brick Expanded polystyrene (EPS) |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Manufacturer guidanceProduct and system warranties available |
Uniclass | |
CAWS | M21/20 External wall insulation system . . . . . . M21/210 External wall insulation system |
Specification data - External wall insulation systems
Support rails and brackets | |
Boards | |
Material | K Systems approved sheathing board with K Systems horizontal base rails and vertical spacer rails. |
Insulation | |
Material | Grey EPS insulation boards. |
Additional mechanical fixings | Fisher FABS or Ejot SAPHIR for rails; Termofix B for insulation boards. |
Render carrier or reinforcement | |
Material | Alkali resistant reinforcement mesh, embedded into basecoat. |
Render | |
Material | K Systems VBriQ acrylic brick-slips (with VBriQ adhesive).Silkolitt+ silicone thin coat render. |
Colour | Manufacturer guidanceK Systems standard colour range (other colours are available on request, according to NCS colour range) |
System accessories | K Pro clear hydrophobic coating.K Systems expansion beads and trims.Movement joint.Sealant tape.Sealant. |
Fire performance | B-s1,d0. |
Basecoat | K Systems ABC basecoat. |
Primer | K Systems Silicone Primer. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Render Brick Expanded polystyrene (EPS) |
Expected Life | 30 year |
Third party certifications
Literature
K Systems Brochure
Case studies
Walkways Community Centre, Belfast
