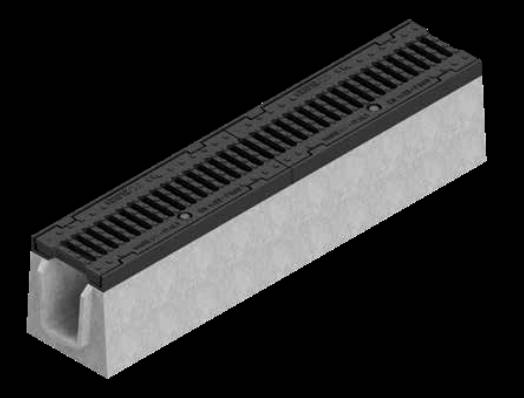

K Series Channels - Reinforced Concrete Rainwater Channel

Verified by manufacturer 21 days ago

K 170 SERIES - Grating width 170 mm

Lang+Fulton Variant:

Vibro-packed concrete reinforced 425 cement and certified river aggregates. The finished product is of rough appearance, dark grey in colour and is produced by moulding and vibration.

Jump to:
+44 (0)131 441 1255 Website

Application

F 900 - 900 kN

Areas subjected to loads from very heavy vehicles, for instance, paving for aircraft.

Description

Reinforced concrete channels adopt a patented grating locking system. The ductile iron edge rails – inserted into the concrete and connected to the channel's metal reinforcement structure – enhance the structure's resistance, and their bare finish blends in with the ductile iron gratings.


The channels are easy and quick to install: the ductile iron gratings are inserted into the relevant anchoring elements and locked with a single stainless steel bolt on each grid.


With this system, inspection operations can be carried out quickly and easily. The K series channels are designed for all situations requiring high load-bearing capacities and finishes that can blend into particularly refined urban settings.


Features and benefits:

  • Classification in accordance with BS EN 1433:2002.
  • Six nominal internal widths (172, 222, 272 (190 H), 272 (311 H), 350, 413).
  • Available with F900 ductile iron grating.

General information

Color

Grey

Finish

Coarse

Material

Concrete

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

WarrantyDescription

One year

Uniclass

Pr_65_52_24_24 Drainage channels with gratingsPrimary

CAWS

Q10/35 Drainage channel systems with gratings

Q10/180 Drainage channel systems with gratings

Specification data - Drainage channels with gratings

Standard

To BS EN 1433.

Certification

CE Mark and a Declaration of Performance (DoP).

Material

Reinforced concrete.

Gratings

-

Material

Ductile iron.

Form

GJS500-7 ductile iron grating.

Colour

Black.

Load class (minimum)

F 900.

Channel unit dimensions

-

Width (nominal)

106 mm.

Depth (nominal)

151 mm.

Length

1000 mm.

Integral accessories

None.

Endcaps – outlets.

Endcaps – closing pieces.

Channel bottom drilling.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Recyclability

100%
