JUTA Hydrolock
Verified by manufacturer 6 months ago
BBA Agrément Certificate
Certificate type
Mechanically bonded Geosynthetic Clay Liner (GCL) composite of pulverised bentonite embedded between two layers of geotextile.
Application
Suitable for use as a low water permeability waterproofing barrier.
Description
Mechanically bonded Geosynthetic Clay Liner (GCL) composite of pulverised bentonite embedded between two layers of geotextile. The internal 5 kg of natural sodium bentonite swells in contact with water to form a low permeability waterproofing barrier.
Features and benefits:
- Suitable for use as a full-bonded Type A waterproofing protection as defined in BS 8102: 2009 for the waterproofing of new structures.
- Can be used externally on concrete to provide an effective barrier to the transmission of liquid water where Grades 1 to 3 waterproofing protection are required.
General information
Color | Grey |
Material | Clay Polypropylene |
Shape | Rectangle |
Length | 5100 mm |
Width | 1150 mm |
Height | 7 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | J44/120 Geosynthetic clay lining (GCL) J40/285 Loose-laid bentonite damp-proofing/ tanking membranes |
Specification data - Geosynthetic clay liners (GCLs)
Third party product certification | BBA Certificate.Guidance for specification option: Certificate No. 18/5547. |
Weight | 5300 g/m². |
Integral accessories | Hydrolock Paste.Hydrolock Rail.Hydrolock Strip.Not required. |
Product Reference | JUTA Hydrolock |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 2 |
Third party certifications

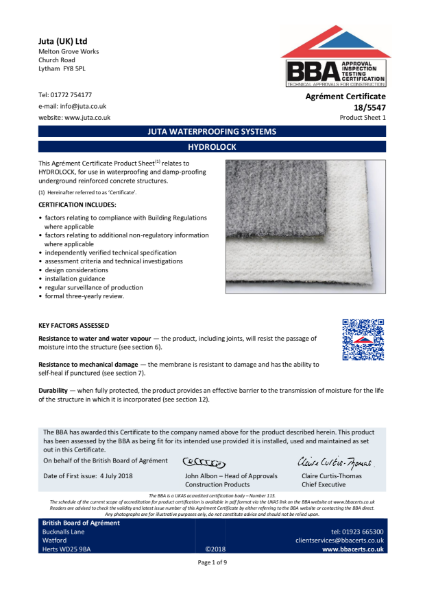

BBA Agrément Certificate
BBA Certificate Hydrolock 18/5547
Literature

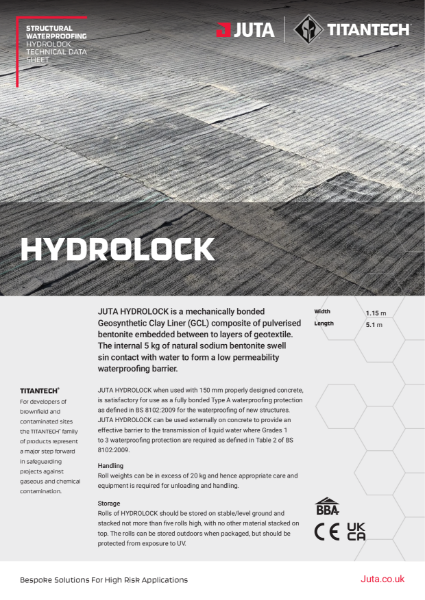

JUTA Hydrolock - Technical Datasheet
