JUTA GP1 Gas Barrier

Third party certifications:
  • BBA Agrément Certificate

    Certificate type

Juta UK Ltd

High quality gas (carbon dioxide, methane and radon) barrier.

Jump to:
+44 (0)1772 754177 www.juta.co.uk
Application

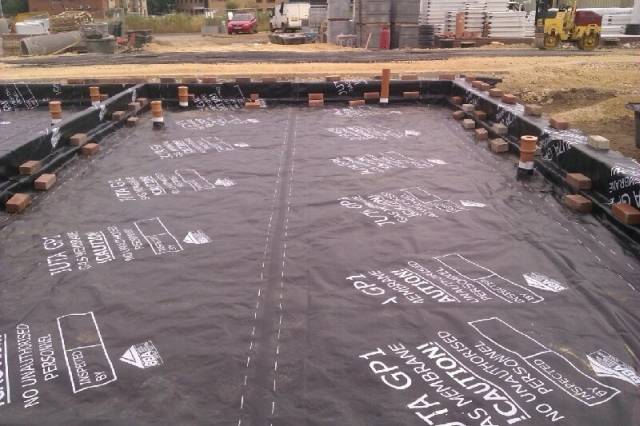

Ideal for all common ground floor constructions, including:

  • Reinforced cast in-situ (ground-supported) concrete floors.
  • Suspended beam and block concrete floors.
  • Pre-cast concrete slabs.
  • Can also be used above or below the slab (not subject to hydrostatic pressure).

Juta GP1 should be used on any site where carbon dioxide, methane or radon is present up to and including CIRIA 665 SITUATION 6. The barrier is sufficiently resistant to the ingress of harmful gases into a building. On more heavily contaminated sites a passive or active venting system may be required to dilute the gases down to acceptable levels and specific design advice should be sought.

Description

Juta GP1 is a low density reinforced polyethylene (LDPE) ground membrane incorporating an aluminium foil core, suitable for use in areas where carbon dioxide, methane and radon are present in the ground.

Features and benefits:

  • High quality reinforced polyethylene membranes.
  • Low permeability to hydrocarbon and VOC vapours, carbon dioxide, methane and radon.
  • Complies with latest codes of practice as published by the BRE and CIRIA, BS 8485.
  • Independently tested by third party UKAS accredited bodies.
  • BBA approved and CE marked.

Applications:

Ideal for all common ground floor constructions, including:

  • Reinforced cast in-situ (ground-supported) concrete floors.
  • Suspended beam and block concrete floors.
  • Pre-cast concrete slabs.
  • Can also be used above or below the slab (not subject to hydrostatic pressure).

Juta GP1 should be used on any site where carbon dioxide, methane or radon is present up to and including CIRIA 665 SITUATION 6. The barrier is sufficiently resistant to the ingress of harmful gases into a building. On more heavily contaminated sites a passive or active venting system may be required to dilute the gases down to acceptable levels and specific design advice should be sought.

General information
Uniclass 2015
Pr_25_57_65_60 Plastics sheetsPrimary
Specification data - Plastics sheets
Product Reference

JUTA GP1 Gas Barrier

Colour

Insert requirement; consult manufacturer for details.

Accessories

None

JUTA GP Primer

JUTA GP Self-adhesive membrane

JUTA GP protection fleece

JUTA GP tape

JUTA GP top hats and preformed corners

JUTA GP void vent

JUTA GP1 starter band

Standard product features

Technical characteristics:

  • Size: 2 x 50 m.
  • Thickness: 0.6 mm.
  • Material: Low density reinforced polyethylene (LDPE) with aluminium foil core.
  • Tear resistance to EN ISO 12310-1: MD: 330 N. CMD: 400 N.
  • Tensile strength – EN ISO 12311-1: MD: 600 N/50mm. CMD: 480 N/50mm.
  • Tensile strength – EN ISO 12311-1: 20%.
  • Methane permeability to BS EN ISO 15105-1: <0.09 ml/m2/day/atm.
  • Radon permeability to K124/02/95: 8.0 x 10ˉ15.
  • Carbon dioxide permeability to BS EN ISO 15105-1:.<0.09 ml/m2/day/atm.

Literature
Third party certifications
  • Certificate: 12/4912 : Full compliance with BS 8485:2015: Code of practice for the design of protective measures for methane and carbon dioxide ground gases for new buildings. (Certified for use as a low-density polythene gas barrier and damp proof membrane in concrete ground floors above and below the slab not subject to hydrostatic pressure, to protect the building against moisture, radon, methane and carbon dioxide from the ground)
