JUTA GP® Radon Sump
Verified by manufacturer 5 months ago

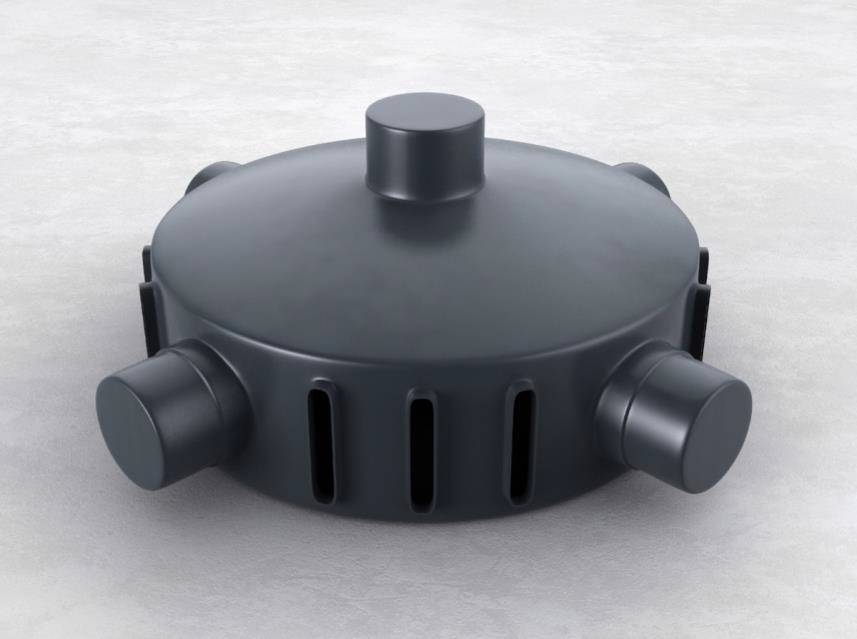

Radon extraction sump for buildings within radon affected areas.
Application

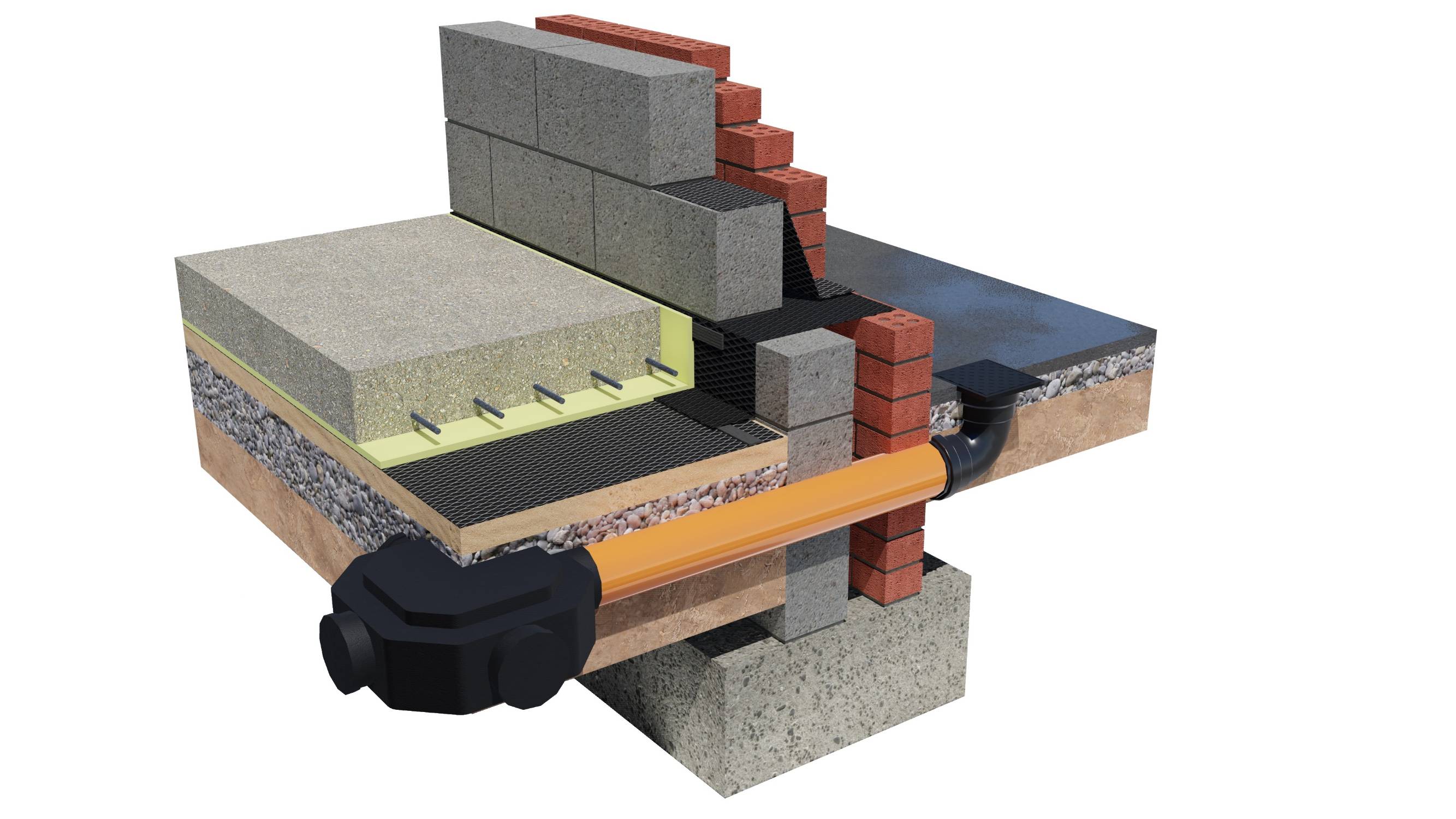

Placed underneath buildings within radon affected areas.
Description
Radon extraction sump for buildings within radon affected areas.
Features and benefits:
- Positioning beneath a building can reduce the posed by radon gas by minimising the pressure beneath ground slab constructions.
- Robust polypropylene construction for positioning beneath ground slab constructions.
- Can be used in conjunction with GP Radon Membranes and associated accessories to provide 'full' radon protection.
- Installed during construction for 'activation' post construction if required.
- Each sump can be manually handled and positioned.
- No special storage conditions are required.
General information
Color | Black |
Finish | Other |
Material | Polypropylene |
Shape | Other |
Length | Bespoke |
Width | 520 mm |
Height | 240 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | D21/370 Plastics depressurization sumps D21/40 Plastics depressurization sumps |
Specification data - Depressurization sumps
Material | Polypropylene. |
Size | Outlets diameter: 510 x 240 mm, maximum serviceable area: 250 m², maximum spacing for sumps: 15 m. |
Inlets/ outlets | |
Number of inlets/ outlets | Five outlets. |
Diameter | 510 x 140 mm. |
Product Reference | GP Radon Sump |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Recyclability | Fully Recycleable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
