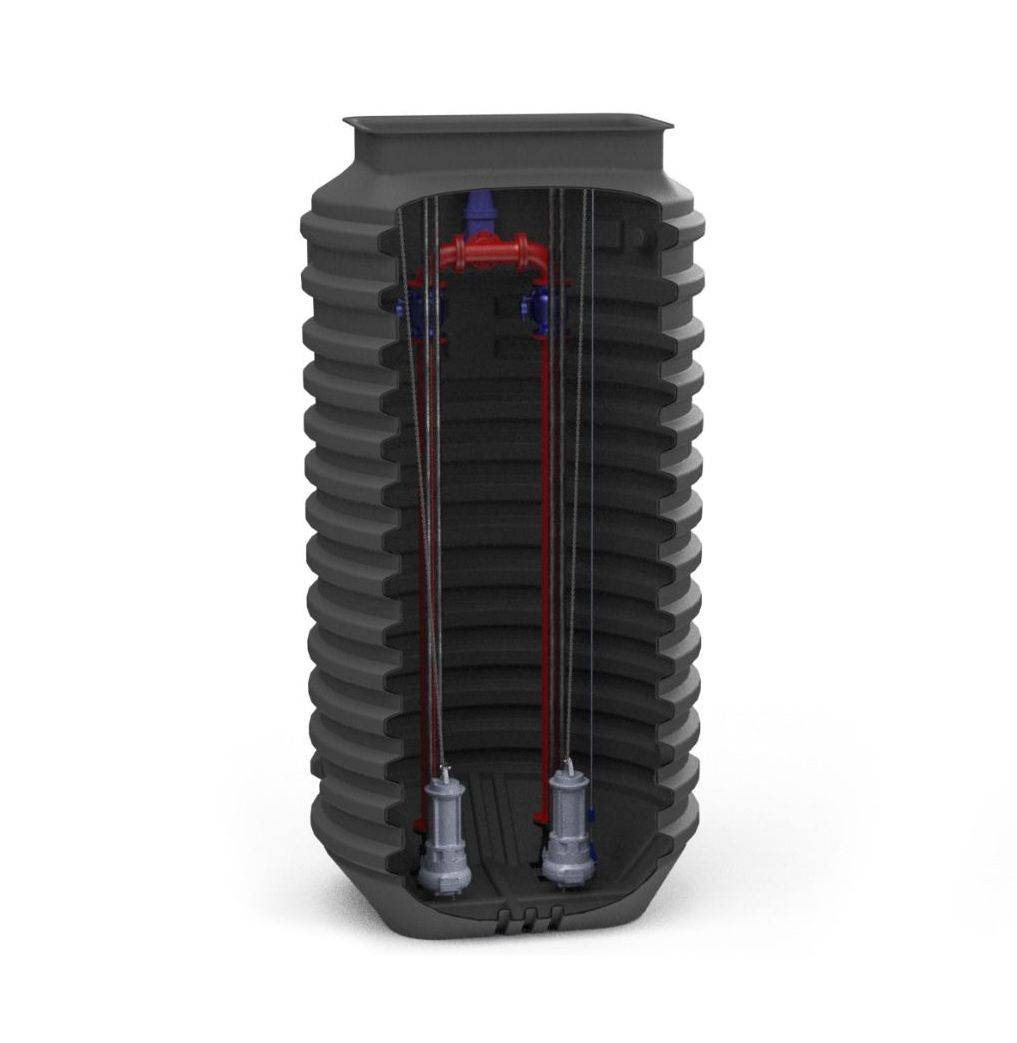

Jupiter® Dual Pump

Name: Jupiter® Dual Pump
Brand: 3KCGoVDUAfnRt834N1PvV6
SKU: gwRktotdchm5QuzKfDG1A4

T-T

Jump to:

+44 (0)1630 647200 www.ttpumps.com

Description

A two-pump chamber for larger housing developments, hotels, hospitals and sewage works. The basic unit is capable of special build modification to provide capacities up to 15,000 litres and can be incorporated into schemes where, for example, Sewers for Adoption specification is required.

General information

Color	Black Chamber, Industry standard colours for all internal equipment
Features	BBA Approved, manufactured entirely by TT
Material	Medium density polyethylene
Size	2246 x 2520-4500 mm
Uniclass 2015	Private packaged pumping stations (Pr_70_55_76_62)

Specification data

Product Reference	Mercury® single-pump chamber Venus® single-pump chamber Saturn® two-pump chamber Jupiter® two-pump chamber
Power supply	230 single phase. 400 3-phase.
Outlet pressure pipe	Nominal size, insert requirements in mm.
Cable ducts for control panel supply and from control panel to tank	. . . . . . , size . . . . . ., with drawlines as section P30

Standard product features	Dimensions: 2246 mm diameter x 2520 mm high.
Product Options	Compatible pumps: Cutter - 80 mm / 100 mm. Grinder - 50 mm / 80 mm / 100 mm. Vortex - 50 mm / 80 mm / 100 mm. Channel - 80 mm / 100 mm / 150 mm.

Digital objects

Platform	Compatible	Version	Certified to
Revit	Revit 2016	3	2.0
IFC	-	2	1.3

Download now from NBS National BIM Library

Jupiter® Dual Pump

Black Chamber, Industry standard colours for all internal equipment

BBA Approved, manufactured entirely by TT

Medium density polyethylene

2246 x 2520-4500 mm

Mercury® single-pump chamber

Venus® single-pump chamber

Saturn® two-pump chamber

Jupiter® two-pump chamber

230

400

. . . . . . , size . . . . . ., with drawlines as section P30

Dimensions:
2246 mm diameter x 2520 mm high.

Compatible pumps:
Cutter - 80 mm / 100 mm.
Grinder - 50 mm / 80 mm / 100 mm.
Vortex - 50 mm / 80 mm / 100 mm.
Channel - 80 mm / 100 mm / 150 mm.

Jupiter® Dual Pump

Black Chamber, Industry standard colours for all internal equipment

BBA Approved, manufactured entirely by TT

Medium density polyethylene

2246 x 2520-4500 mm

Mercury® single-pump chamber

Venus® single-pump chamber

Saturn® two-pump chamber

Jupiter® two-pump chamber

230

400

. . . . . . , size . . . . . ., with drawlines as section P30

Dimensions:2246 mm diameter x 2520 mm high.

Compatible pumps:Cutter - 80 mm / 100 mm.Grinder - 50 mm / 80 mm / 100 mm.Vortex - 50 mm / 80 mm / 100 mm.Channel - 80 mm / 100 mm / 150 mm.

Dimensions:
2246 mm diameter x 2520 mm high.

Compatible pumps:
Cutter - 80 mm / 100 mm.
Grinder - 50 mm / 80 mm / 100 mm.
Vortex - 50 mm / 80 mm / 100 mm.
Channel - 80 mm / 100 mm / 150 mm.
