Junifol LLDPE Geomembrane Smooth

Application

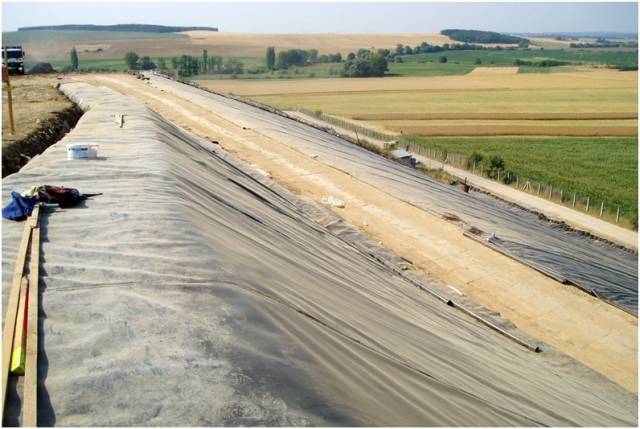

  • Civil engineering projects (urban structures, industrial and agricultural estates).
  • Insulation of various hydraulic structures, water resources engineering (ponds, lakes, dams, canals and reservoirs).
  • Liquid and solid waste deposits/ reservoirs, landfills (bottom sealing), wastewater collectors, dewatering pits.

Description

Hydro-insulation sheet manufactured from linear low density polyethylene (LLDPE), available in two basic roll widths: 5.1–8.0 m and in thicknesses ranging from 0.75–2.0 mm.


The main purpose of the product is to serve as a barrier protecting various engineering structures against moisture, water, liquids and chemical substances, gases (radon, methane and carbon dioxide). The product meets GRI-GM17.

General information

Finish

Smooth

Color

Black

Material

Low-density polyethylene (PE-LD)

Size

0.75 x 5100 mm

Roll length: 300 m.

1.0 x 5100 mm

Roll length: 200 m.

1.5 x 5100 mm

Roll length: 150 m.

2.0 x 5100 mm

Roll length: 120 m.

0.75 x 8000 mm

Roll length: 300 m.

Show more

Uniclass 2015

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

D20/550 Geotextile sheet

D20/58 Geotextile sheet

J40/140 Loose laid plastics or rubber sheet gas retardant damp proofing

J40/145 Loose laid weldable polyethylene gas retardant damp proofing

J40/35 Loose laid plastics or rubber gas retardant damp proofing

J44/110 Geomembrane lining

J44/115 Geomembrane lining

Product range

Junifol Geomembrane

Specification data - Plastics sheets Enhanced data

Material

Low-density polyethylene (PE-LD).

Purpose

Damp-proof membrane.

Gas retardance.

Geomembrane.

Water resistance.

Performance characteristics

-

Tensile strength (minimum)

To ASTM D 6693 type IV, 20–56 kN/m.

Varies dependent on thickness.

Tear resistance

To ASTM D 1004, 70–200 N.

Varies dependent on thickness.

Elongation to break

To ASTM D 6693 type IV, 800%.

Physical properties

-

Colour

Black.

Dimensions

-

Thickness (minimum)

0.75 mm.

Roll length: 300 m.

1.0 mm.

Roll length: 200 m.

1.5 mm.

Roll length: 150 m.

2.0 mm.

Roll length: 120 m.

Width (minimum)

5.1 m.

8 m.

Roll length (minimum)

120 m.

Product Reference

Junifol LLDPE Geomembrane Smooth

Density

0.939 g/cm².

UV resistance

To ASTM D 5885, (% retained after 1600 h): 35%.

Puncture resistance

To ASTM D 4833, 190–550 N.

Varies depending on thickness.
