Juice Dispenser - TopJuicer Config TJ1 - Commercial Drinks Dispenser
Verified by manufacturer 3 months ago
Deluxe iPad holder
Deluxe iPad holder

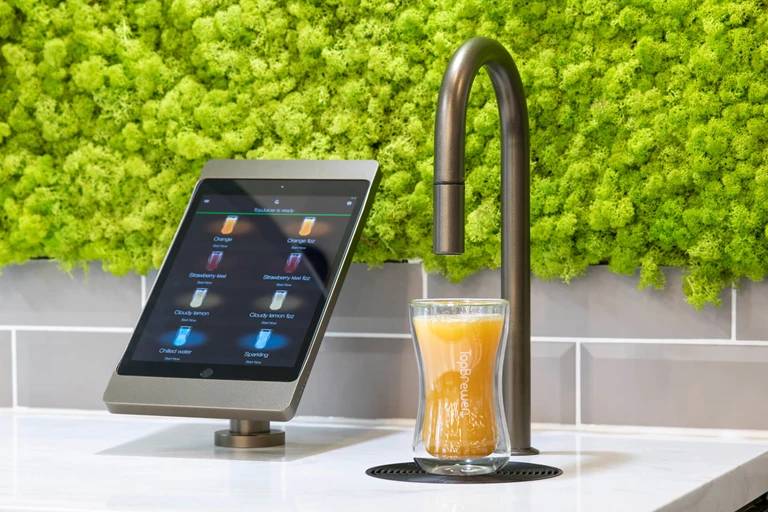

Space saving, app-controlled integrated juice dispenser providing three juices and filtered water with still or sparkling options.
Application
Juice dispenser for commercial applications including hospitality, retail, education and workplaces.
Description
Space-saving, app-controlled integrated juice dispenser providing three juices and filtered water with still or sparkling options.
Features and benefits:
- Serves healthy drinks on-demand from a minimal, sleek dispenser.
- Deluxe and standard iPad holder options.
- Up to 300 cups per hour.
- Three still and sparkling juices or flavoured waters supported (can be mixed or matched).
- Still and sparkling chilled filtered water as standard.
- Six different finishes/colours matching other Scanomat dispensers.
- Option for bespoke swan neck colours.
- Eco-friendly: No single-use plastics, made from recyclable materials, futureproof asset, less waste.
- Touchless control with app.
- Voice control with Siri.
- Cloud management.
- App integration possibilities.
- Optional contactless payment.
- Clean programme.
- Under-counter design.
- Free over the air updates (WiFi needed).
General information
Color | Black Bronze Gold Grey White |
Finish | Polished Metallic |
Material | Stainless steel |
Shape | Other Guidance for specification option: Swan neck tap with undermounted components. |
Length | 600 mm |
Width | 600 mm |
Height | 700 mm |
Warranty description | One year |
Uniclass | |
CAWS | N12/340 Appliances N12/340 Appliances |
Specification data - Water coolers
Flow rate | 45 L/hour. |
Temperature of delivered water | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details e.g. chilled. |
Water inlet | G ¾". |
Power supply | 230 V (1 x twin 13 A plug socket); 250 W. |
Colour/ Finish | Stainless steel. Polished steel. Matt Black. Raw Vitrivius. Brass. |
Integral accessories | Deluxe iPad holder. |
Water pressure | 200 kPa (2 bar) – 600 kPa (6 bar). |
Weight | 45 kg (net). |
Water | Chilled, still or sparkling with juice options; up to 300 cups per hour. |
Tank capacity | Manufacturer's standard. |
Dimensions | Outlet height: 260 mm. |
Safety features | Touchless control. |
Components | Swan neck outlet; juice rack; water chiller; control unit; TopBrewer Pure Filtration water filter. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Finland |
Country of product manufacture | Denmark |
Material | Stainless steel |
Recyclability | Stainless steel 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |

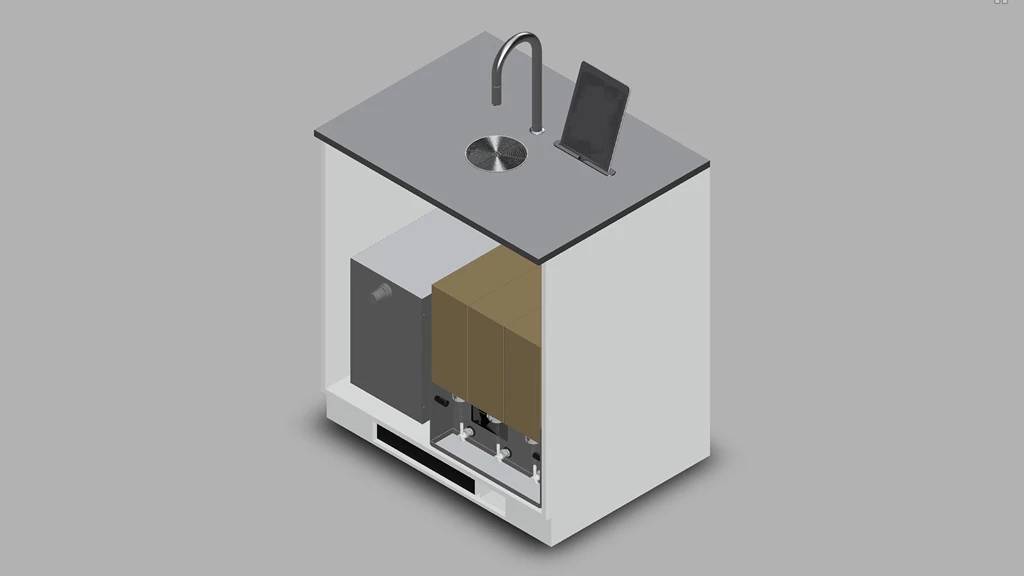

BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type
TopJuicer - User Manual
TopJuicer - Pre-installation Guide
TopJuicer - Cleaning Manual
Case studies
The Gate Hotel
