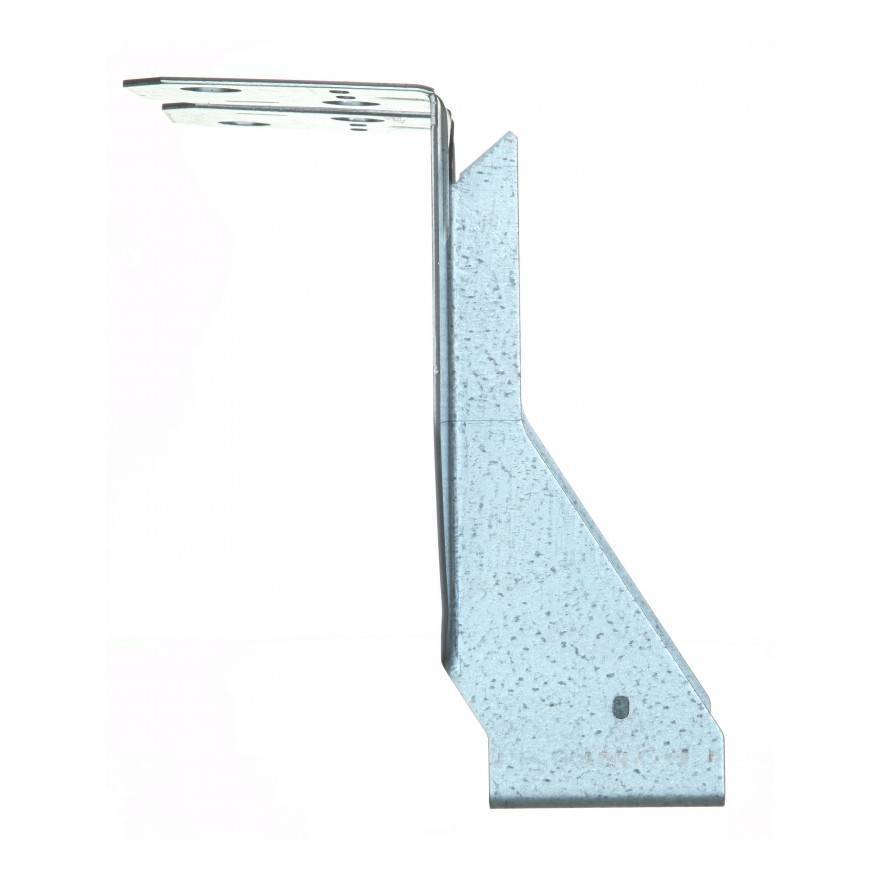

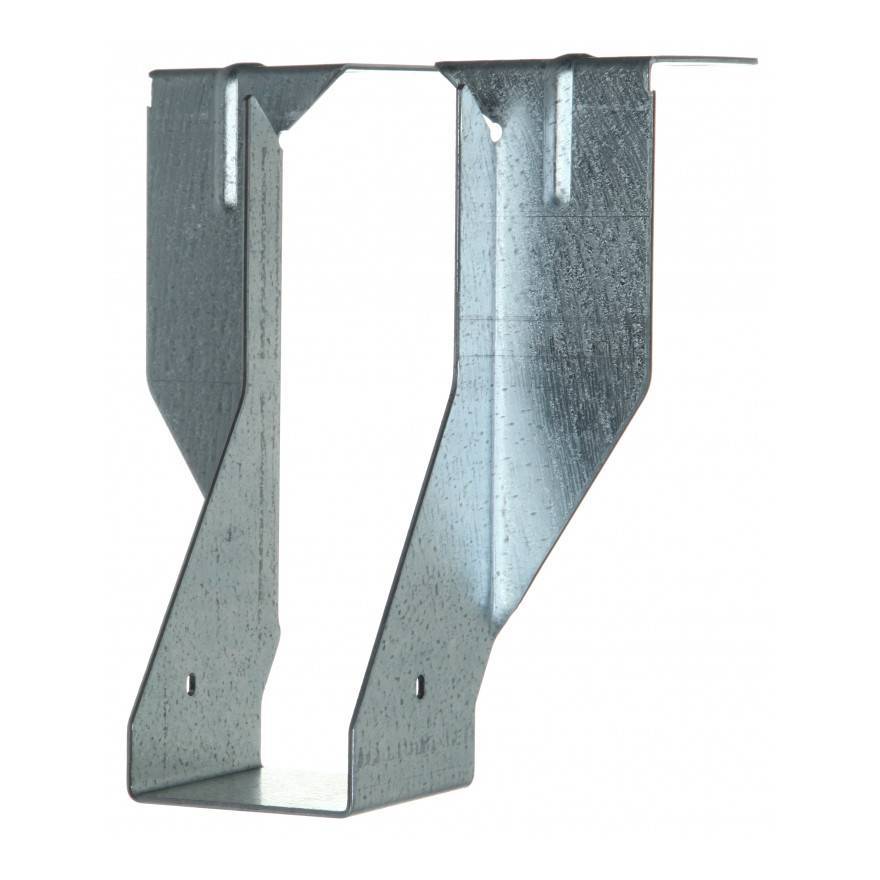

JHM: Joist Hanger for Masonry

Verified by manufacturer 28 days ago

Simpson Strong-Tie Third party certifications:
  • DoP

    DoP

    Certificate type

A range of joist hangers to support timber joists, beams and trussed rafters from masonry walls.

Jump to:
+44 (0)1827 255600 Website

Application

Can be used to connect solid-sawn joists, trusses and engineered joists to masonry walls or steel beams.

Description

The JHM and JHMI range of joist hangers can be used to connect solid-sawn joists, trusses and engineered joists to masonry walls or steel beams.


Features and benefits:

  • Built-in inspection slot at the base of the hanger to aid inspection from the ground
  • Top flange provides widest area in contact with masonry support allowing superior performance.
  • Embossments on JHM stiffen top flange and holes allow improved mortar keying.
  • JHM side flange on deeper hangers is much higher than traditional style, providing greatly enhanced resistance to joist rotation.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Width

38 mm

44 mm

47 mm

50 mm

63 mm

Show more

Height

100 mm

125 mm

140 mm

165 mm

190 mm

Show more

Uniclass

Pr_20_29_31_44 Joist hangersPrimary

CAWS

G20/65 Joist hangers

G20/791 Proprietary joist hangers

Specification data - Joist hangers

Standard

To BS EN 845-1.

Format

Face fixing.

Material

Carbon steel.

Finish

Galvanized.

Sizes

-

Manufacturer guidance

Over 100 sizes are available; consult manufacturer's literature and insert requirements.

Third party certifications

DoP

DoP

Declaration of Performance DoP-h06/0002

Literature

JHM and JHMI Masonry Hanger Mechanically Fixed to Steel Beams

JHM and JHMI Masonry Hanger Mechanically Fixed to Steel Beams

JHM: Joist Hanger for Masonry Technical Data Sheet

JHM: Joist Hanger for Masonry Technical Data Sheet
