JHA: Joist Hanger with Adjustable Height Strap

Verified by manufacturer 28 days ago

JHA270

Simpson Strong-Tie Variant:
Third party certifications:
  • DoP

    DoP

    Certificate type

  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

A range of height-adjustable joist hangers.

Jump to:
+44 (0)1827 255600 Website

Application

  • For indoor use.
  • Solid-sawn timber joists.
  • Face fix or wrap over.

Description

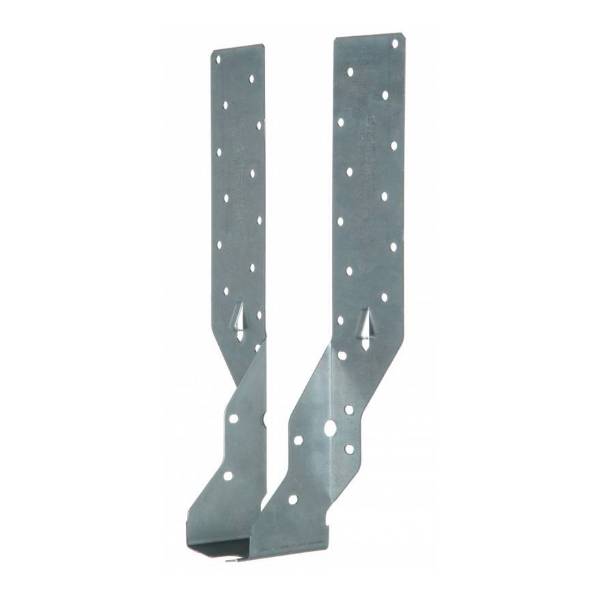

JHA is a height adjustable joist hanger for supporting timber joists from timber members.

Standard leg (JHA270) and long leg (JHA450) versions are available. JHA can be installed on the face of the carrying joist or wrapped over the top for higher performance.


Features and benefits:

  • A galvanized joist hanger that provides great support with ease of installation.
  • Published performance values are based upon 3.75 x 30 mm square twist nails being used throughout.
  • Wider strap provides more surface area on the supporting timber and allows increased nail spacing, enhancing the performance of the critical hanger-to-support part of the connection.
  • Minimum and maximum nailing schedules are stamped into the strap providing correct installation information for site operatives.
  • Speed-prong holds the hanger in position to allow easier attachment.

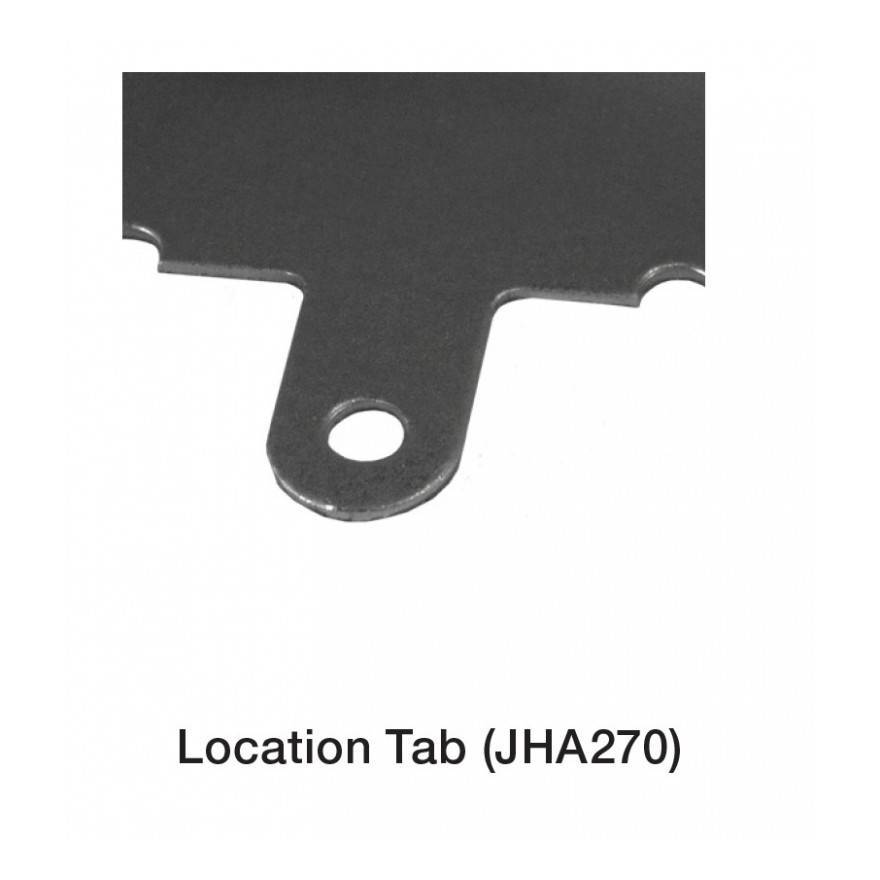

  • JHA270 range features a location tab which allows easier alignment of the hanger.
  • CE marked.
  • The model number and size is stamped into the seat of the hanger for easy identification, even after installation.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Width

38 mm

44 mm

47 mm

50 mm

63 mm

Show more

Height

241 mm

238 mm

236.5 mm

235 mm

248.5 mm

Show more

Uniclass

Pr_20_29_31_44 Joist hangersPrimary

CAWS

G20/65 Joist hangers

G20/791 Proprietary joist hangers

Specification data - Joist hangers

Third party certification

ETA.

Format

Face fixing.

Wrap over.

Material

Carbon steel.

Finish

Galvanized.

Sizes

38 mm.

44 mm.

47 mm.

50 mm.

63 mm.

75 mm.

91 mm.

100 mm.

Third party certifications

DoP

DoP

Declaration of Performance DoP-e06/0270

European Technical Approval (ETA)

European Technical Approval (ETA)

European Technical Assessment ETA-06/0270 of 2023/01/06

Literature

JHA: Joist Hanger with Adjustable Height Strap Technical Data Sheet

JHA: Joist Hanger with Adjustable Height Strap Technical Data Sheet
