Jersey railing
Verified by manufacturer 7 months ago
Steel street barriers.
Application
Street barriers help to manage pedestrian flows, prevent illegal parking and make roads and outdoor areas, such as school exits, safer.
Description
A segregation or protective solution for school and university sites or to control the flow of pedestrian traffic.
Features and benefits:
- Frame made from 40 x 40 mm zinc primed and painted steel tubes.
- Available in three styles: simple cross and mesh.
- Available in a range of colour finishes.
- Installation is concreted directly into ground (base plates available as option).
- Jersey railing - Railings - Street furniture - Procity UK
- Can be made removable using Lockblock socket system. Self-draining through gravel at bottom of sockets composed of two sockets operated by a triangle key.
- Lockblock socket system for removable railings - Procity UK
General information
Color | Grey White Blue Red Black |
Finish | Painted Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 1470 mm |
Height | 1026 mm |
Warranty description | Five year |
Uniclass | |
CAWS | Q41/130 Protective barriers Q41/130 Protective barriers Q41/135 Proprietary protective barriers |
Specification data - Protective rail systems
Length | 1470 |

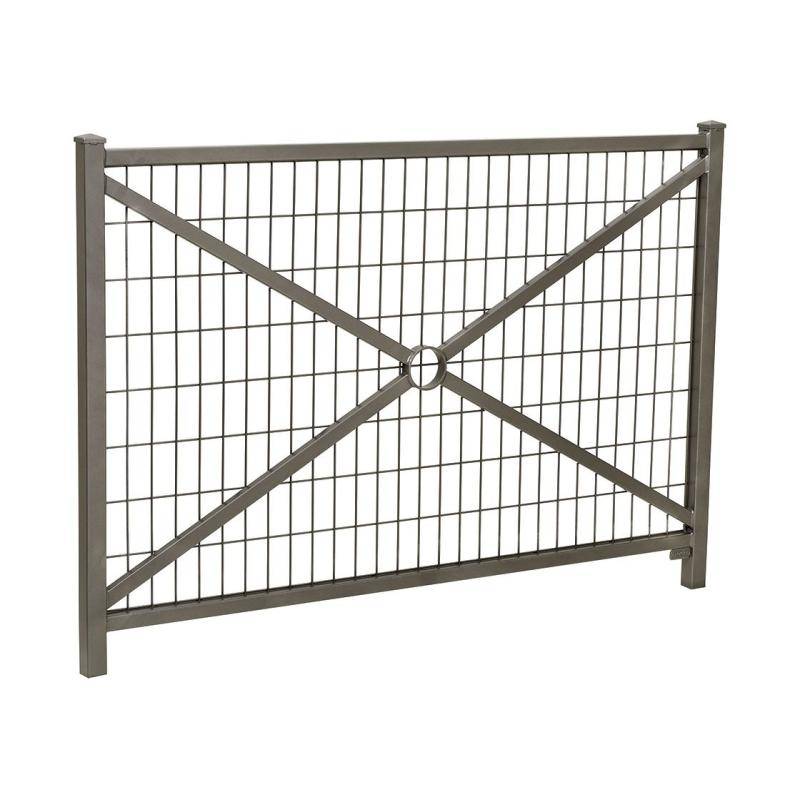

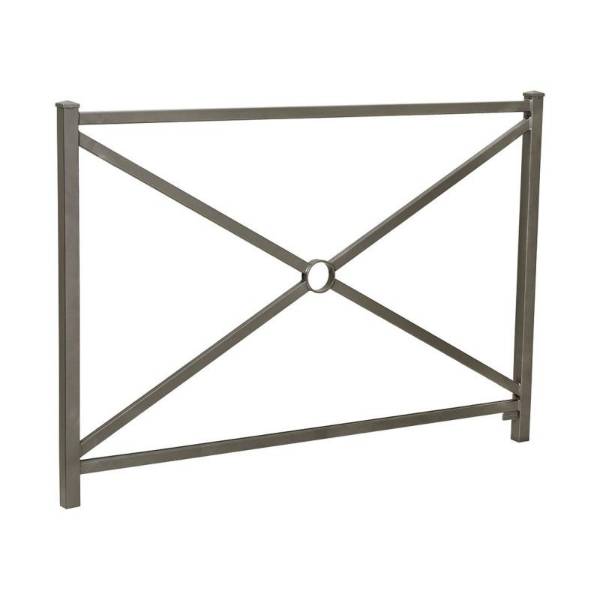

Frame | Simple cross. Mesh. |
Posts | Vertical steel tubes 40 x 40 mm. Guidance for specification option: Cross bars steel tubes 30 x 30 mm. Central bars steel tubes 30 x 20 mm. |
Applied finish | Zinc primed. Zinc primed and painted. Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Accessories | Lockblock socket system. None. |
Total height | 1206 mm. |
AboveGround | 1026 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel is 100% recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
