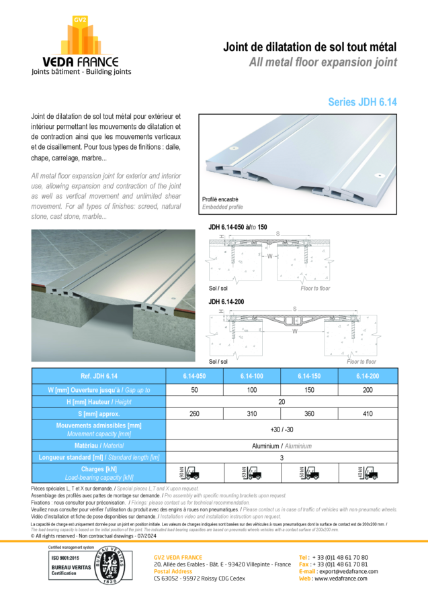

JDH 6.14 - All Metal Floor Expansion Joint
Verified by manufacturer 3 days ago
6.14-050 - 50 mm gap
6.14-050 - 50 mm gap
Metal floor expansion joint.
Application
Suitable for all types of finishes: screed, natural stone, cast stone, marble, etc.
Description
Metal floor expansion joint.
Features and benefits:
- Interior or exterior use.
- Allows expansion and contraction of the joint, as well as vertical movement and unlimited shear movement.
- Made of 100% metal.
- Can be used for floor-to-floor and floor-to-wall connections.
- Can withstand vehicular traffic (up to 90 kN).
Special pieces (L, T and X) available upon request.
General information
Color | Silver |
Finish | Natural Other |
Material | Aluminium |
Shape | Rectangle |
Length | 3000 mm |
Width | 50 mm 100 mm 150 mm 200 mm Manufacturer guidanceJoint width. |
Height | 20 mm |
Uniclass | |
CAWS | Q21/470 Expansion joints M40/835 Metal section movement joints M13/395 Metal section movement joints M10/476 Metal section movement joints |
SKU Code | 6.14-050 |
Specification data - Metal section movement joints
Classification data | |
Joint width (nominal) | 50 mm. Guidance for specification option: Overall (visible) width: 260 mm. |
Edging | |
Material | Aluminium. |
Finish | Natural. |
Colour | Silver/ Grey. |
Height | 20 mm. |
Movement | +/- 30 mm. |
Type | Floor-to-floor. |
Length | 3 m. |
LoadBearingCapacity | 90 kN. |
Sustainability data
Material | Aluminium |
