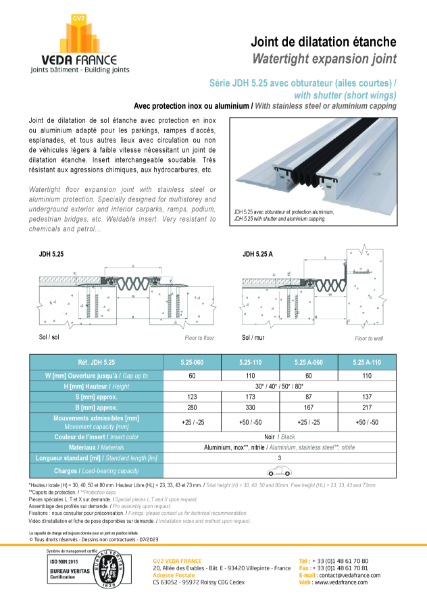

JDH 5.25 - Watertight Expansion Joint
Verified by manufacturer 3 days ago
5.25-060 - 60 mm gap
5.25-060 - 60 mm gap

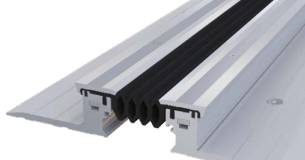

Watertight floor expansion joint.
Application
Suitable for multi-storey and underground exterior and interior car parks, ramps, podiums, pedestrian bridges, etc.
Description
Watertight floor expansion joint with short wings.
Features and benefits:
- Available with stainless steel or aluminium protection.
- Weldable insert.
- Very resistant to chemicals and petrol.
- Can be used for floor-to-floor and floor-to-wall connections.
- Can withstand vehicular traffic.
Special pieces (L, T and X) available upon request.
General information
Color | Silver Black |
Finish | Natural Other |
Material | Aluminium Rubber |
Shape | Rectangle |
Length | 3000 mm |
Width | 60 mm 110 mm Manufacturer guidanceJoint width. |
Height | 30 mm 40 mm 50 mm 80 mm |
Uniclass | |
CAWS | M10/476 Metal section movement joints M13/395 Metal section movement joints M40/835 Metal section movement joints Q21/470 Expansion joints |
SKU Code | 5.25-060 |
Specification data - Metal section movement joints
Classification data | |
Joint width (nominal) | 60 mm. Guidance for specification option: Overall width: 280 mm. Visible width: 123 mm. |
Edging | |
Material | Aluminium. |
Finish | Natural. |
Colour | Silver/ Grey. |
Insert | |
Material | Nitrile rubber. |
Colour | Black. |
Height | 30 mm. Guidance for specification option: Free height: 23 mm. 40 mm. Guidance for specification option: Free height: 33 mm. 50 mm. Guidance for specification option: Free height: 43 mm. 80 mm. Guidance for specification option: Free height: 73 mm. |
Movement | +/- 25 mm. |
Capping | Aluminium caps. Stainless steel caps. |
Type | Floor-to-floor. |
Length | 3 m. |
LoadBearingCapacity | Manufacturer's standard. Guidance for specification option: Vehicular traffic. |
Sustainability data
Material | Aluminium Rubber |
