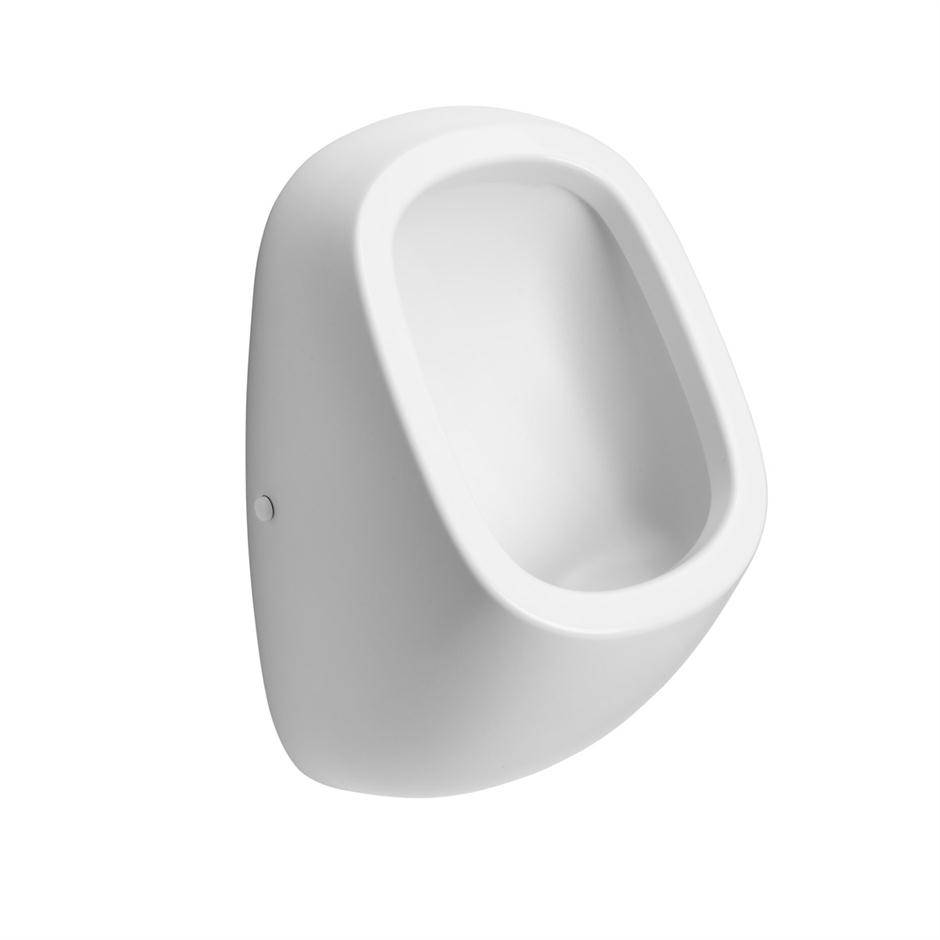

Jasper Morrison Bowl Rim Flush Fully Concealed Urinal

Jasper Morrison Bowl Rim Flush Fully Concealed Urinal

Ideal Standard (UK) Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Rim flushing urinal flushing from the mains supply, not suitable for flushing from a cistern.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk

Description

Jasper Morrison bowl urinal rim flushing, back inlet and concealed waste

  • Fully concealed
  • Easy clean design
  • Flushed from mains water
  • No Auto Cisterns
  • Sensor flushing

General information

Finish

Neutral / No Finish - (67)

Stainless Steel Look - (XJ)

Features

Rim flushing, fully concealed

Shape

Sculptured

Size

585 x 300 x 360 mm

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_93_82 Wall-hung urinalsPrimary

Specification data - Wall-hung urinals

Product Reference

E6215 - Jasper Morrison Bowl Rim Flush Fully Concealed Urinal

Jasper Morrison Urinal, Rim Flushing, Fully Concealed

Finish

Neutral / No Finish - (67)

Stainless Steel Look - (XJ)

Urinal Connecting Set

K7106 - Trap

Urinal Connecting Set

Not required

Urinal Division

S6120 - Urinal Division

Urinal Division With Hanger & Screw

Not required

Standard product features

Urinal:

  • Material: Vitreous China
  • Weight: 17.00 kg
  • Standards: Vitreous china to BS 3402

Trap:

  • Material: Plastic
  • Weight: 0.50 kg

Urinal Connecting Set:

  • Material: Plastic
  • Weight: 0.09 kg

Urinal Flushvalve:

  • Material: Chrome Plated Metal
  • Weight: 1.90 kg

Product Options

Please click the [Specify this] button and then configure the bowl by adding one of the Sensorflow 21 electronic urinal flushing products. Mains versions can power up to 5 link flushing valves or the battery versions can be independent. Please refer to Sensorflow 21 compact urinal flushing device pages. Then add as many urinals assembly types: mains/linked/battery, as needed in the room schedule. Not suitable for flushing from a cistern and nominal working mains water pressure needed is 3.0 bar

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2013

1

1.2
Download now from NBS National BIM Library

Third party certifications

  • Water Regulations Advisory Scheme: WRAS
