Jaksun Solar Fence Panel
Verified by manufacturer 6 months ago
ISO 9001 Quality Management
Certificate type
Timber solar fence panel to be installed vertically in the ground between slotted posts, to generate power while also providing a solid boundary fence.
Application
Domestic properties, large housing developments, schools, retail, commercial, businesses, office spaces.
Description
Timber solar fence panel which can be installed as a standalone fence panel between slotted posts, or on top of another timber fence panel between slotted posts (increased efficiency and performance is expected when panels are raised off the ground).

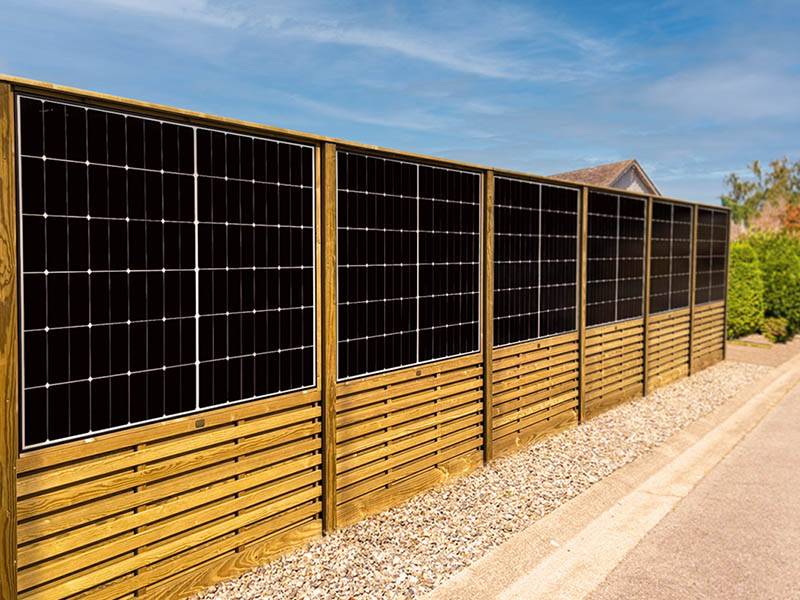

Can be used on top of Venetian Hit and Miss fence panels at 600 mm high, a gravel board at 140 mm high, and capping at 20 mm high, giving a total fence height of 1930 mm. Other panel combinations are available (but anything over two metres high will generally require planning permission).
Features and benefits:
- All timber used throughout is high quality Jakcure® treated softwood.
- Designed for use with Jackson Fencing slotted Jakposts.
- Stainless steel fixings are used throughout for longer life.
- Produces energy.
- Suitable for eco-conscious homes and Passivhaus developments.
- Timber is planed all round, and panel is fully framed.
- 25 year timber guarantee against rot and insect attack.
- 25 year product warranty and linear solar output warranty from solar panel manufacturer.
General information
Color | Black Guidance for specification option: Solar panel. Other Guidance for specification option: Fence. |
Finish | Pre-treated |
Material | Timber |
Shape | Rectangle |
Length | 1830 mm |
Width | 50 mm |
Height | 1170 mm |
Warranty description | 25 year Guidance for specification option: Must be installed with gravel board to comply with 25 year guarantee terms, slotted posts that are adapted for cables, and capping rail, which is essential to conceal cable. |
Uniclass | |
CAWS | Q40/250 Prefabricated wood panel fencing Q40/430 Proprietary fencing Q40/30 Proprietary fencing Q40/15 Prefabricated wood panel fencing |
Specification data - Post and panel fencing systems
Posts | Standard slotted Jakposts.Guidance for specification option: 100 x 100 mm nominal, planed finish with two 54 x 25 mm slots for fence panels. Heavy duty slotted Jakposts.Guidance for specification option: 120 x 124 mm nominal, planed finish with two 54 x 25 mm slots for fence panels. Should be used when the overall fence height is 2 m and over. Manufacturer guidanceAdapted for solar panel cables, dependent on fence height (panel combination). |
Base boards | Not required.Jakcure pressure treated gravel board, 140 mm high.Jakcure pressure treated hedgehog friendly gravel board, 140 mm high. |
Panels | Jaksun Solar Fence Panel only.Jaksun Solar Fence Panel + Venetian Hit and Miss Panel.Guidance for specification option: 0.6 m high. Jaksun Solar Fence Panel + custom panel.Guidance for specification option: Can be combined with any Jackson Fencing 0.6 m high fence panels. Other panel height combinations are available, consult manufacturer for details. |
Fence topping | Not required.Capping rail, 20 mm.Guidance for specification option: To conceal cables. |
Site applied finishes | Jakcure® pressure-treated. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements. |
Solar panels | 425 W solar panel. Guidance for specification option:
Once the fence is installed, the solar panels need connecting to a mains/ inverter system by a MCS certified/ qualified Solar PV installer that is also a member of a CPS from microgeneration technology, such as NICEIC. |
Fixings | Stainless steel panel screws. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature

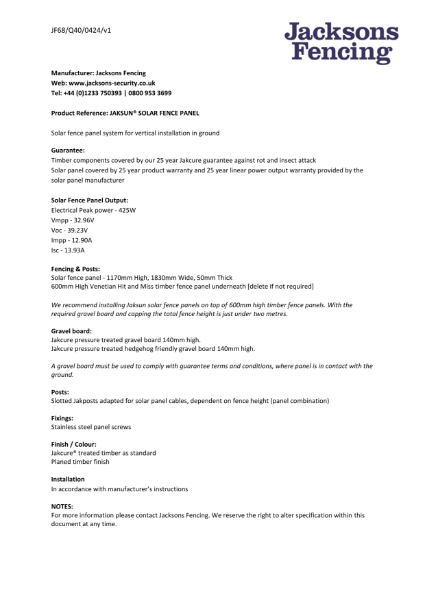

Jaksun Solar Fence Panel

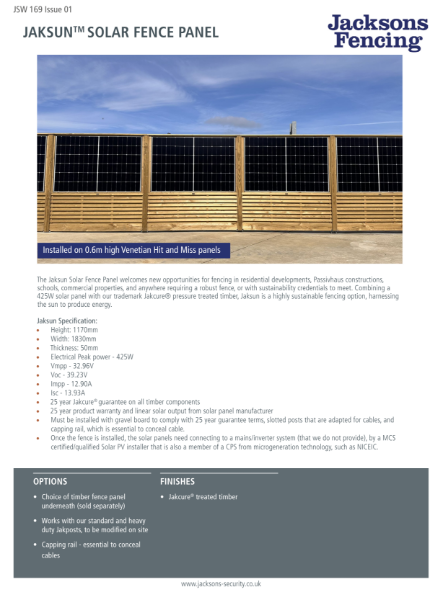

Jaksun Solar Fence Panel Q40
