Jakoustic® Class 3 Acoustic Barrier - High security timber acoustic barrier
Verified by manufacturer 1 day ago

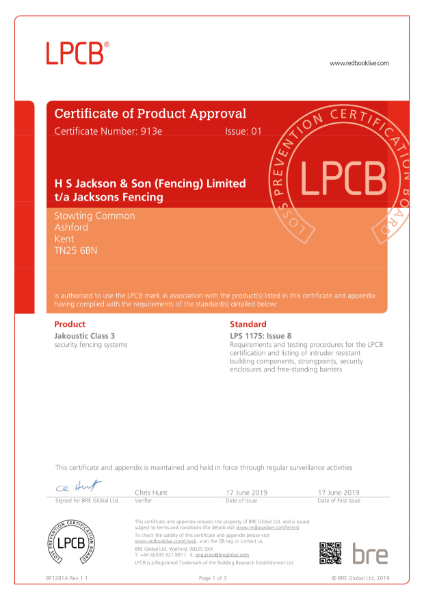

LPCB Certification
Certificate type
LPS 1175 certified security rated timber acoustic barrier; provides protection against attempts to cut through and gain forced entry.
Application
Suitable for applications requiring a natural timber facade, where privacy is important, or for the containment of noise into or out from a site. For higher risk sites and data centres.
Description
An acoustic, flat profile fence which can be certified to either C5 (SR3) and F1, or C5 (SR3) and G1, under LPS 1175; both options provide robust protection against serious forced entry attempts using a wide range of professional tools. Conforms to BS EN 1793:1998.
Features and benefits:
- LPS 1175 certified
- Secured by Design preferred specification.
- Flat face allowing no foot or hand holds.
- Reduces noise by up to 28dB.
- Can be used with Rota Spike® and other security toppings.
- Timber used throughout is Jakcure® pressure treated and guaranteed for 25 years.
- Incorporates a layer of steel mesh to provide protection against attempts to cut through.
- Matching gates available.
General information
Color | Other |
Finish | Galvanized Powder-coated Pre-treated |
Material | Wood Steel |
Shape | Rectangle |
Width | 2400 mm Guidance for specification option: Per panel. |
Height | 2500 mm 2750 mm 3000 mm 3250 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/170 Acoustic fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Specification data - Wood close-boarded fencing systems
Classification data | |
Standard | To BS EN 1793:1998. |
Posts | Steel Universal I beams. Guidance for specification option: Length dependent on height specified. Manufacturer guidanceColour/ finish specified separately below. |
Post foundations | Manufacturer's standard. Guidance for specification option: Post centres: 2400 mm. |
Pales or boards | Double layer of 34 mm-thick timber boards, 2500 mm high. Double layer of 34 mm-thick timber boards, 2750 mm high. Double layer of 34 mm-thick timber boards, 3000 mm high. Double layer of 34 mm-thick timber boards, 3250 mm high. Manufacturer guidancePressure-treated wood. |
System accessories | None. Security toppings. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Sound reduction | 28 dB |
Finish/ Colour | Galvanized. Guidance for specification option: Posts: hot-dip galvanized to BS EN 1461 (standard). Galvanized and powder-coated, black RAL 9005. Guidance for specification option: Posts: To BS EN 13438. Galvanized and powder-coated, green RAL 6005. Guidance for specification option: Posts: To BS EN 13438. Galvanized and powder-coated, other. Guidance for specification option: Posts: To BS EN 13438. Special order, insert requirements. Marine coated Guidance for specification option: Posts: For installations within 500 m of salt water or an estuary. Manufacturer guidancePosts only. Wood can also be supplied in colours other than natural; consult manufacturer for options. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe Guidance for specification option: and South America. |
Country of product manufacture | United Kingdom |
Material | Wood Steel |
Expected Life | 25 year |
Product certifications
Literature
Acoustic Fencing and Noise Barriers
