JAKOB Webnet Wire Mesh Frames - for Balustrade Infill

Verified by manufacturer 1 day ago

Webnet Frames Classic

MMA Architectural Systems Ltd Variant:
Product certifications:

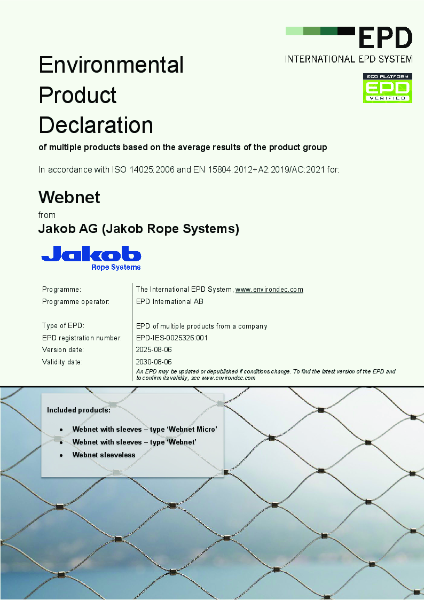

  • EPD

    EPD

    Certificate type

Stainless steel wire mesh infill panels for balustrades and many guarding applications.

Jump to:
01761 419427 Website

Application

  • Suitable for public buildings, residential and commercial buildings, care centres, parking garages, observation platforms, sports courts, heliports and bridges.
  • Suitable for exterior and interior use.

Description

All frames are crafted to suit requirements and completed with Webnet infills. All components are made of high-grade stainless steel (AISI 316).


Features and benefits:

  • Classic or round/square inviss frames.
  • Sleeved or sleeveless Webnet available.
  • Pre-assembled.
  • Variety of sizes available.
  • Available with Webnet ID - design patterns, logos, or typographic elements. Choose between ground or coloured tiles.
  • Webnet is safety-certified, weather-resistant and highly durable and requires little to no maintenance.

General information

Finish

Natural

Powder-coated

Material

Stainless steel

Width

Bespoke

Height

Bespoke

Guidance for specification option:

Maximum 1000 mm.

Uniclass

Pr_25_71_50_84 Stainless steel welded mesh panelsPrimary

CAWS

Q55/390 Guarding

L35/170 Guarding system

L37/160 External balustrades

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Stainless steel welded mesh panels

Classification data

Dimensions

-

Width

-

Manufacturer guidance

Insert requirements or refer to a drawing.

Height

-

Manufacturer guidance

Insert requirements or refer to a drawing.

Frame

-

Section

Webnet Frames Classic, 17.2 mm diameter.

Guidance for specification option:

Round tube frame with lacing rope. All frame geometries are possible. Maximum panel length: 1600 mm with 10 mm diameter support strut; 800 mm without support strut.

Webnet Frames Classic, 26.9 mm diameter.

Guidance for specification option:

Round tube frame with lacing rope. All frame geometries are possible. Maximum panel length: 2400 mm with 12 mm diameter support strut; 1200 mm without support strut.

Webnet Frames Classic, 33.7 mm diameter.

Guidance for specification option:

Round tube frame with lacing rope. All frame geometries are possible. Maximum panel length: 2800 mm with 17.2 mm diameter support strut; 1400 mm without support strut.

Webnet Frames Classic, 42.4 mm diameter.

Guidance for specification option:

Round tube frame with lacing rope. All frame geometries are possible. Maximum panel length: 3200 mm with 17.2 mm diameter support strut; 1600 mm without support strut.

Infill mesh

-

Mesh size

-

Pedestrian restraint systems

Webnet 20 x 38.2 mm (1 mm diameter wire).
Webnet 30 x 53 mm (1 mm diameter wire).
Webnet 40 x 70.5 mm (1 mm diameter wire).
Webnet 50 x 87.2 mm (1 mm diameter wire).
Webnet 60 x 105 mm (1 mm diameter wire).
Webnet 70 x 122 mm (1 mm diameter wire).
Webnet 80 x 139 mm (1 mm diameter wire).
Webnet 25 x 45.46 mm (1.5 mm diameter wire).
Webnet 30 x 60.73 mm (1.5 mm diameter wire).
Webnet 35 x 67.98 mm (1.5 mm diameter wire).
Webnet 40 x 75.18 mm (1.5 mm diameter wire).
Webnet 50 x 91.39 mm (1.5 mm diameter wire).
Webnet 60 x 107.78 mm (1.5 mm diameter wire).
Webnet 70 x 124.78 mm (1.5 mm diameter wire).
Webnet 80 x 141.45 mm (1.5 mm diameter wire).
Webnet 100 x 175.34 mm (1.5 mm diameter wire).
Webnet 120 x 210.36 mm (1.5 mm diameter wire).
Webnet 140 x 244.98 mm (1.5 mm diameter wire).
Webnet 160 x 280.10 mm (1.5 mm diameter wire).
Webnet 180 x 314.33 mm (1.5 mm diameter wire).
Webnet 200 x 348.51 mm (1.5 mm diameter wire).
Webnet 40 x 75.1 mm (2 mm diameter wire).
Webnet 50 x 90.5 mm (2 mm diameter wire).
Webnet 60 x 107.2 mm (2 mm diameter wire).
Webnet 70 x 124 mm (2 mm diameter wire).
Webnet 80 x 141 mm (2 mm diameter wire).
Webnet 100 x 175 mm (2 mm diameter wire).
Webnet 120 x 209 mm (2 mm diameter wire).
Webnet 140 x 244 mm (2 mm diameter wire).
Webnet 160 x 279 mm (2 mm diameter wire).
Webnet 180 x 313 mm (2 mm diameter wire).
Webnet 40 x 74.8 mm (3 mm diameter wire).
Webnet 50 x 90.5 mm (3 mm diameter wire).
Webnet 60 x 106.6 mm (3 mm diameter wire).
Webnet 70 x 124 mm (3 mm diameter wire).
Webnet 80 x 141 mm (3 mm diameter wire).
Webnet 100 x 175 mm (3 mm diameter wire).
Webnet 120 x 209 mm (3 mm diameter wire).
Webnet 140 x 244 mm (3 mm diameter wire).
Webnet 160 x 279 mm (3 mm diameter wire).
Webnet 180 x 313 mm (3 mm diameter wire).
Sleeveless Webnet 25 x 44.61 mm (1.5 mm diameter wire).
Sleeveless Webnet 30 x 60.18 mm (1.5 mm diameter wire).
Sleeveless Webnet 40 x 74.76 mm (1.5 mm diameter wire).
Sleeveless Webnet 50 x 89.74 mm (1.5 mm diameter wire).
Sleeveless Webnet 60 x 105.66 mm (1.5 mm diameter wire).
Sleeveless Webnet 70 x 124.58 mm (1.5 mm diameter wire).
Sleeveless Webnet 80 x 139.56 mm (1.5 mm diameter wire).
Sleeveless Webnet 100 x 174.6 mm (1.5 mm diameter wire).
Sleeveless Webnet 120 x 208.48 mm (1.5 mm diameter wire).
Sleeveless Webnet 140 x 243.06 mm (1.5 mm diameter wire).
Sleeveless Webnet 160 x 277.75 mm (1.5 mm diameter wire).
Sleeveless Webnet 180 x 313.56 mm (1.5 mm diameter wire).
Sleeveless Webnet 200 x 349.88 mm (1.5 mm diameter wire).
Sleeveless Webnet 40 x 74.8 mm (2 mm diameter wire).
Sleeveless Webnet 50 x 89.72 mm (2 mm diameter wire).
Sleeveless Webnet 60 x 105.72 mm (2 mm diameter wire).
Sleeveless Webnet 70 x 122.35 mm (2 mm diameter wire).
Sleeveless Webnet 80 x 139.57 mm (2 mm diameter wire).
Sleeveless Webnet 100 x 173.48 mm (2 mm diameter wire).
Sleeveless Webnet 120 x 207.52 mm (2 mm diameter wire).
Sleeveless Webnet 140 x 243.06 mm (2 mm diameter wire).
Sleeveless Webnet 160 x 276.27 mm (2 mm diameter wire).
Sleeveless Webnet 180 x 313.17 mm (2 mm diameter wire).
Sleeveless Webnet 40 x 72.42 mm (3 mm diameter wire).
Sleeveless Webnet 50 x 88.26 mm (3 mm diameter wire).
Sleeveless Webnet 60 x 105.66 mm (3 mm diameter wire).
Sleeveless Webnet 70 x 122.46 mm (3 mm diameter wire).
Sleeveless Webnet 80 x 139.49 mm (3 mm diameter wire).
Sleeveless Webnet 100 x 173.32 mm (3 mm diameter wire).
Sleeveless Webnet 120 x 207.26 mm (3 mm diameter wire).
Sleeveless Webnet 140 x 241.74 mm (3 mm diameter wire).
Sleeveless Webnet 160 x 276.52 mm (3 mm diameter wire).
Sleeveless Webnet 180 x 310.96 mm (3 mm diameter wire).

Finish as delivered

-

Applied finish

Natural.
Powder-coated, RAL.

Guidance for specification option:

Webnet Frames can be delivered with a paint coating based on the RAL-Classic colour palette. Insert requirements.

Colour

-

Manufacturer guidance

Insert requirements.

Mesh

Horizontal mesh design with perimeter type H24.
Vertical mesh design with perimeter type V24.

Accessories

30917-0017-12 - Frame holder, one-way.

Guidance for specification option:

For round posts.

30917-0026-13 - Frame holder, one-way.

Guidance for specification option:

For round posts.

30917-0017-11 - Frame holder, one-way.

Guidance for specification option:

For flat posts.

30917-0026-11 - Frame holder, one-way.

Guidance for specification option:

For flat posts.

30917-0020-11 - Frame holder, one-way.

Guidance for specification option:

For flat posts.

30917-0030-11 - Frame holder, one-way.

Guidance for specification option:

For flat posts.

30917-0017-15 - Frame holder, two-way.

Guidance for specification option:

For round posts.

30917-0026-15 - Frame holder, two-way.

Guidance for specification option:

For round posts.

30917-0017-14 - Frame holder, two-way.

Guidance for specification option:

For flat posts.

30917-0026-14 - Frame holder, two-way.

Guidance for specification option:

For flat posts.

30917-0020-14 - Frame holder, two-way.

Guidance for specification option:

For flat posts.

30917-0030-14 - Frame holder, two-way.

Guidance for specification option:

For flat posts.

30917-0017-03 - Round frame clamp, one-way.

Guidance for specification option:

For round posts.

30917-0026-02 - Round frame clamp, one-way.

Guidance for specification option:

For round posts.

30917-0017-01- Round frame clamp, one-way.

Guidance for specification option:

For flat posts.

30917-0026-01 - Round frame clamp, one-way.

Guidance for specification option:

For flat posts.

30917-0017-04 - Round frame clamp, two-way.

Guidance for specification option:

For round posts.

30917-0026-04 - Round frame clamp, two-way.

Guidance for specification option:

For round posts.

30917-0017-02 - Round frame clamp, two-way.

Guidance for specification option:

For flat posts.

30917-0026-03 - Round frame clamp, two-way.

Guidance for specification option:

For flat posts.

30917-0020-01 - Square frame clamp, one-way.

Guidance for specification option:

For flat posts.

30917-0030-01 - Square frame clamp, one-way.

Guidance for specification option:

For flat posts.

30917-0020-02 - Square frame clamp, two-way.

Guidance for specification option:

For flat posts.

30917-0030-02 - Square frame clamp, two-way.

Guidance for specification option:

For flat posts.

Attachment

Through hole.
Flowdrill internal thread M6.
Flowdrill internal thread M8.
Welded brackets.

Feature tiles

Not required.
20265-1520-040 - Ground type A.

Guidance for specification option:

For 40 mm wide mesh aperture.

20265-1520-041 - Coloured type A.

Guidance for specification option:

For 40 mm wide mesh aperture. Insert requirements.

20265-1520-042 - Ground type B.

Guidance for specification option:

For 40 mm wide mesh aperture.

20265-1520-043 - Coloured type B.

Guidance for specification option:

For 40 mm wide mesh aperture. Insert requirements.

20265-1520-050 - Ground type A.

Guidance for specification option:

For 50 mm wide mesh aperture.

20265-1520-051 - Coloured type A.

Guidance for specification option:

For 50 mm wide mesh aperture. Insert requirements.

20265-1520-052 - Ground type B.

Guidance for specification option:

For 50 mm wide mesh aperture.

20265-1520-053 - Coloured type B.

Guidance for specification option:

For 50 mm wide mesh aperture. Insert requirements.

20265-1520-060 - Ground type A.

Guidance for specification option:

For 60 mm wide mesh aperture.

20265-1520-061- Coloured type A.

Guidance for specification option:

For 60 mm wide mesh aperture. Insert requirements.

20265-1520-062 - Ground type B.

Guidance for specification option:

For 60 mm wide mesh aperture.

20265-1520-063 - Coloured type B.

Guidance for specification option:

For 60 mm wide mesh aperture. Insert requirements.

20265-1520-080 - Ground type A.

Guidance for specification option:

For 80 mm wide mesh aperture.

20265-1520-081 - Coloured type A.

Guidance for specification option:

For 80 mm wide mesh aperture. Insert requirements.

20265-1520-082 - Ground type B.

Guidance for specification option:

For 80 mm wide mesh aperture.

20265-1520-083 - Coloured type B.

Guidance for specification option:

For 80 mm wide mesh aperture. Insert requirements.

20265-1520-100 - Ground type A.

Guidance for specification option:

For 100 mm wide mesh aperture.

20265-1520-101 - Coloured type A.

Guidance for specification option:

For 100 mm wide mesh aperture. Insert requirements.

20265-1520-102 - Ground type B.

Guidance for specification option:

For 100 mm wide mesh aperture.

20265-1520-103 - Coloured type B.

Guidance for specification option:

For 100 mm wide mesh aperture. Insert requirements.

Manufacturer guidance

For 1.5–2 mm wires.

Sheet thickness: 3 mm.

Colour: Based on the RAL-Classic color palette.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Vietnam

Manufacturing plant location

Material

Stainless steel

Recyclability

100

Expected Life

60 year

Product certifications

Product certifications

EPD

EPD

EPD Webnet

© 2025 Hubexo North UK Ltd. All rights reserved.
