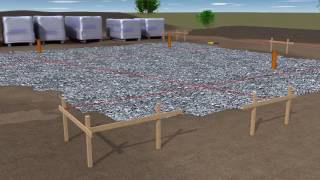

JACKODUR® Atlas Insulated Raft System

JACKODUR® Atlas – made of extruded polystyrene foam (XPS) – is an intelligent, efficient thermal insulation and formwork system for floor slabs. The innovation part is the new, economical interlocking system, which provides thermal bridge-free insulation in all types of buildings.

The Atlas system will mitigate the key thermal bridge at the junction of the floor slab and the external walls.

Supplied as bespoke, perimeter or as standard items in the JRS option to minimize waste on site and ensure a rapid build programme whilst offering complete design flexibility.

Features and benefits:

• Lightweight – easy assembly.
• Speed of construction.
• Cut to fit individual raft design.
• Energy efficient. Bespoke U-value.

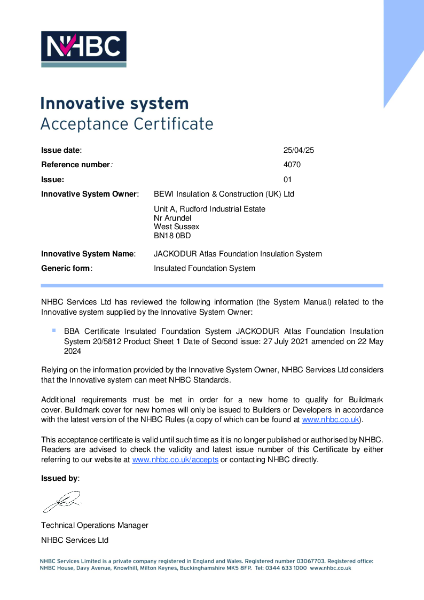

• Technically approved.

The Atlas system is available in several thicknesses to achieve the target U-Values of domestic, commercial and Passive house builds.

Available in JACKODUR® 300 kPa, 500 kPa and 700 kPa compressive strengths.

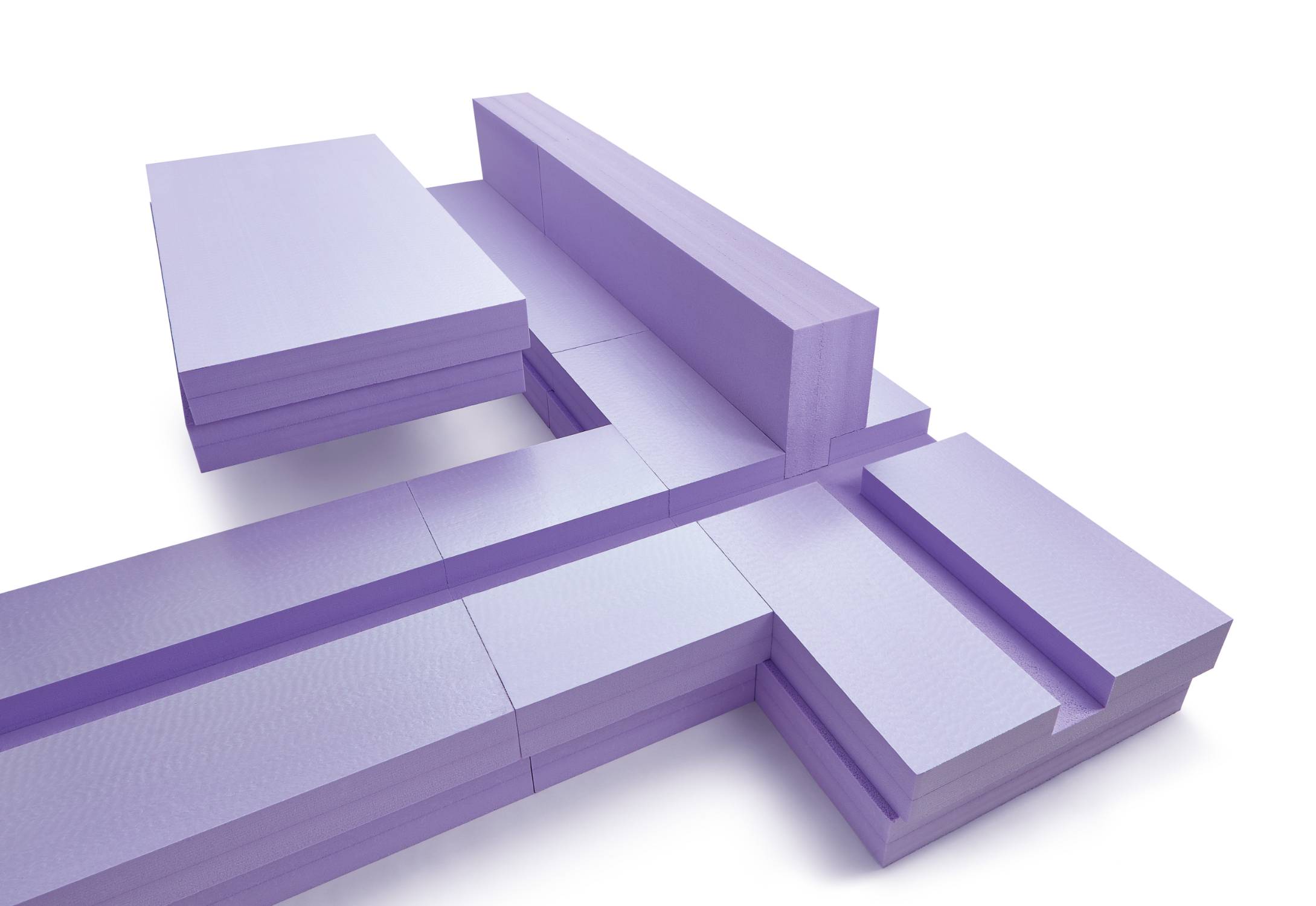

Bespoke and Perimeter Systems:

Formwork element:

• Formwork element with tongue for insertion into Atlas corner and side element.
• Insulation thicknesses from 80–320 mm for floor plate heights up to 500 mm.

Surface element:

• Surface element for Atlas (cut to size in bespoke, standard size in perimeter system).
• Insulation thicknesses from 100–320 mm.

Corner element:

• With groove for mounting the Atlas formwork element.
• Insulation thicknesses from 100–320 mm.

Side element:

• With groove for mounting the Atlas formwork element
• Insulation thicknesses from 100–320 mm.

JRS System:

Surface element:

• Covers the majority of the floor area.
• Cut on site.

Corner edge element:

• External corner formwork glued at the manufacturing plant and cut on site. Standard sizes depending on configuration.

Side element:

• Formworks edge L element glued at the manufacturing plant and cut on site. Standard sizes depending on configuration.

Internal corner element:

• Internal corner formwork glued at the manufacturing plant and cut on site. Standard sizes depending on configuration.
