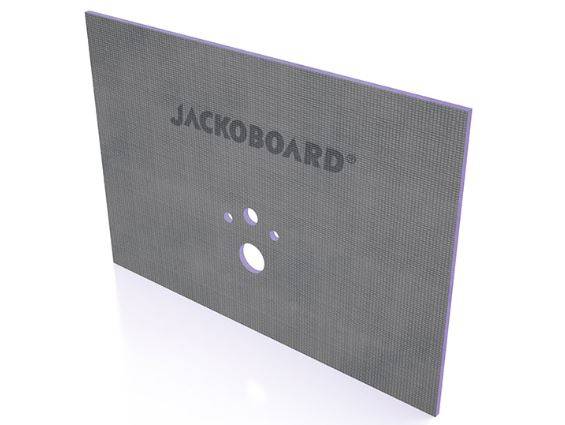

JACKOBOARD® Sabo - WC Frame Cladding
Verified by manufacturer 4 months ago
4508472 - 1300 x 600 mm
4508472 - 1300 x 600 mm
WC wall cladding self assembly kit.
Application
For the fast and easy cladding and installation of all standard WC elements with and for direct tiling without preparatory work.
Description
The JACKOBOARD® Sabo installation kit enables fast and easy cladding of all standard WC elements. This two-piece special element made of waterproof extruded polystyrene foam (XPS) has machined holes to accommodate all standard toilet connections. With extremely high compressive strength, its special coating on both sides also permits the time-saving direct application of tiles.
Features and benefits:
- COMPLETE manufacturing process controlled by JACKON BY BEWI, resulting in value engineered price points to aid the QS stage of the project.
- Manufactured in Germany with healthy UK stock.
- Assembly kit for cladding WC wall elements.
- Made of extruded polystyrene foam.
- Waterproof.
- With reinforced cementitious coating on both sides.
- Low weight, approx. 3—6 kg/m².
- Thickness: 20 mm.
- Board dimensions: 1300 x 600 mm and 1300 x 900 mm.
- Excellent thermal insulation properties with λD = 0.035 W/(m·K).
- High compressive strength > 300 kPa.
- For rooms subject to high moisture loads.
- For all standard toilet frame systems.
- Easy to install.
- Tiles can be applied directly.

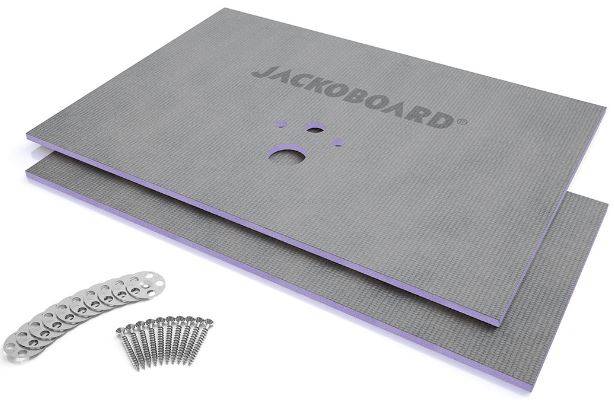

- Includes 10 self-tapping screws and 10 insulation board washers.
General information
Color | Purple Grey |
Finish | Coated Guidance for specification option: Reinforced cementitious coating. |
Material | High density extruded polystyrene (XPS) |
Shape | Rectangle |
Length | 1300 mm |
Width | 600 mm 900 mm |
Height | 20 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | K32/140 Duct/ wall linings – panels only K32/15 Duct/ wall lining panels M40/470 Intermediate substrate M40/27 Intermediate substrate |
Specification data - Extruded polystyrene (XPS) boards
Compressive strength (minimum) at 10% compression | >300 kPa. |
Thermal conductivity (maximum) | 0.035 W/(m·K). |
Water permeability | Waterproof. |
Thickness | 20 mm. |
Face size (length x width) | 1300 x 600 mm. |
Recycled content | None permitted. |
Facing | Reinforced cementitious coating. |
Edges | Square. |
Weight | 3—6 kg/m². |
Integral accessories | 10 self-tapping screws and 10 insulation board discs. |
Sustainability data
Contains Red List materials | No |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
