6000200 - J-Drain linear drain, 600 mm

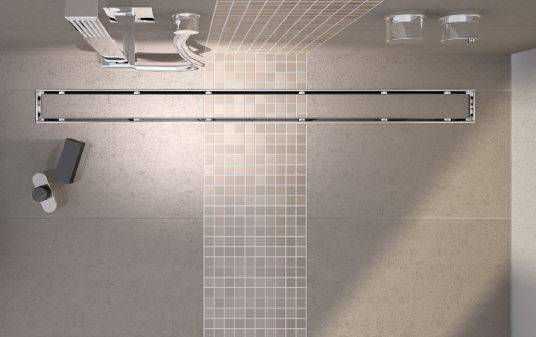

Linear shower drain.
The J-Drain is suitable for all floor substrates.

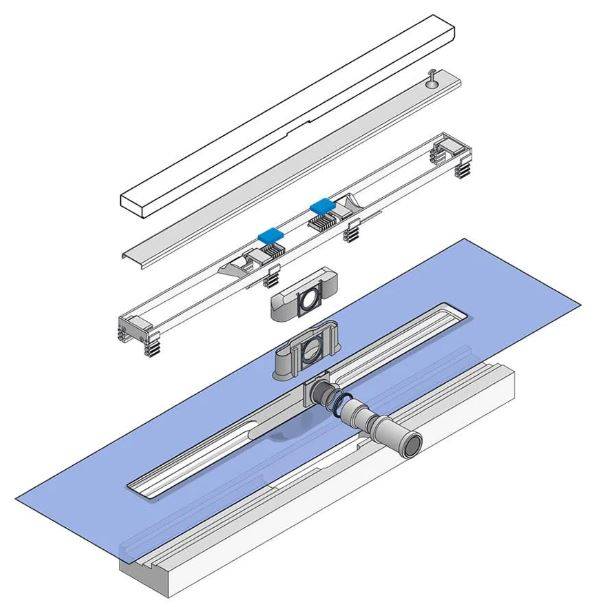

The J-Drain shower tray system consists of three elements, the drain, the channel cover and the sloping board. This three-part system makes it a perfect solution for timber floor linear wet rooms.
The J-Drain element can be used in a three-part kit or as a built-in single drain for a screed floor. The J-Drain has a unique fully accessible trap that is built into the drain channel. This allows the overall drain height of only 54mm.
This product provides a great solution to reduced floor build up zones. The bonded fleece to the drain body provides the versatility to be used on both screed to fall and sloping board applications.
Features and benefits:
Color | Silver |
Finish | Other |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 600 mm 700 mm 800 mm 900 mm 1000 mm |
Width | 86 mm 122 mm |
Height | 54 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units N13/43 Shower trays |
Form | Rectangular. |
Materials | |
Body | Acrylonitrile butadiene styrene (ABS).Guidance for specification option: 54 mm. |
Finish and colour | Self-finished. |
Size | 600 x 122 mm. |
Waste | Built-in horizontal waste. |
Thickness | 54 mm. Guidance for specification option: ABS. |
Integral accessories | JACKOBOARD® J-Drain grating. JACKOBOARD® J-Drain sloping boards. JACKOBOARD® 2K tray sealing kit. |
Contains Red List materials | No |
Country of product manufacture | Belgium |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
